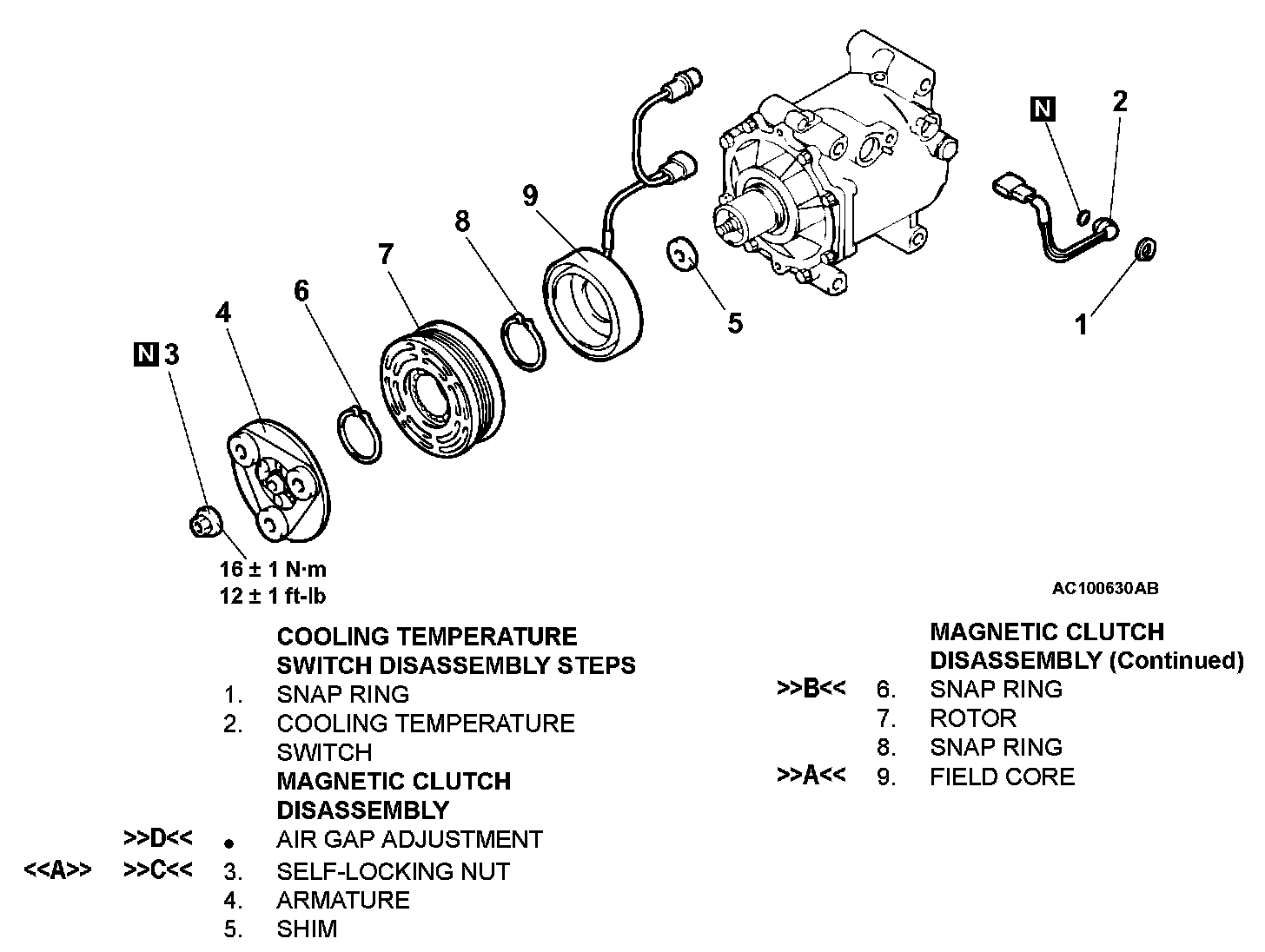

Compressor Clutch
Compressor Clutch:
ITEM
STANDARD VALUE
Air gap (magnetic clutch) mm (in)
0.3 - 0.5 (0.012 - 0.020)
