F4A4B < Downshift Pattern >

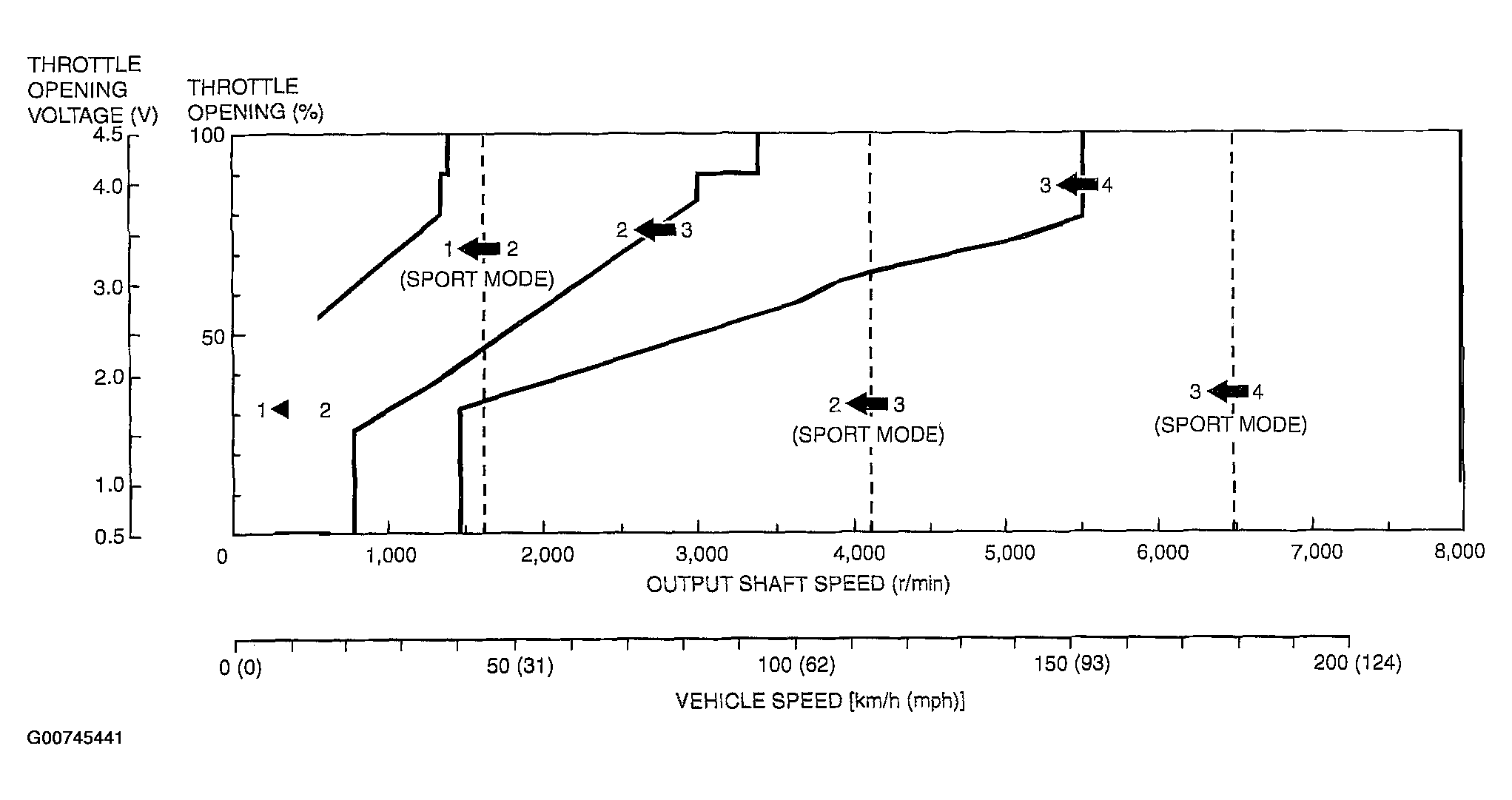

Fig 1: Identifying Downshift Pattern Graph
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
