Removal And Installation: Notes

CAUTION: ^* : Indicates parts which should be temporarily tightened, and then fully tightened after placing the vehicle on the ground and loading the full weight of the engine on the vehicle body.

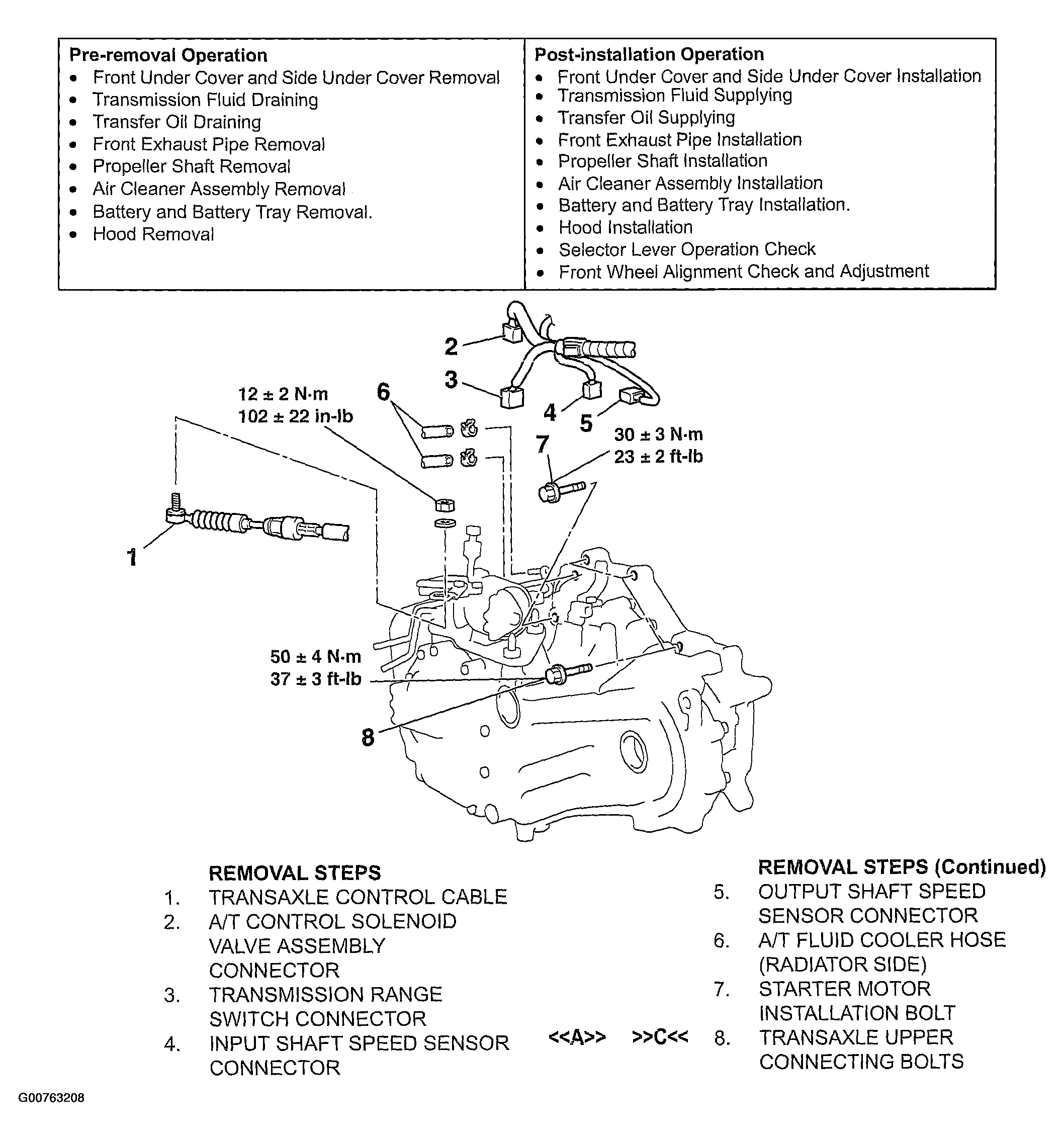

Fig 1: Removal Steps Of Transaxle Assembly (1 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

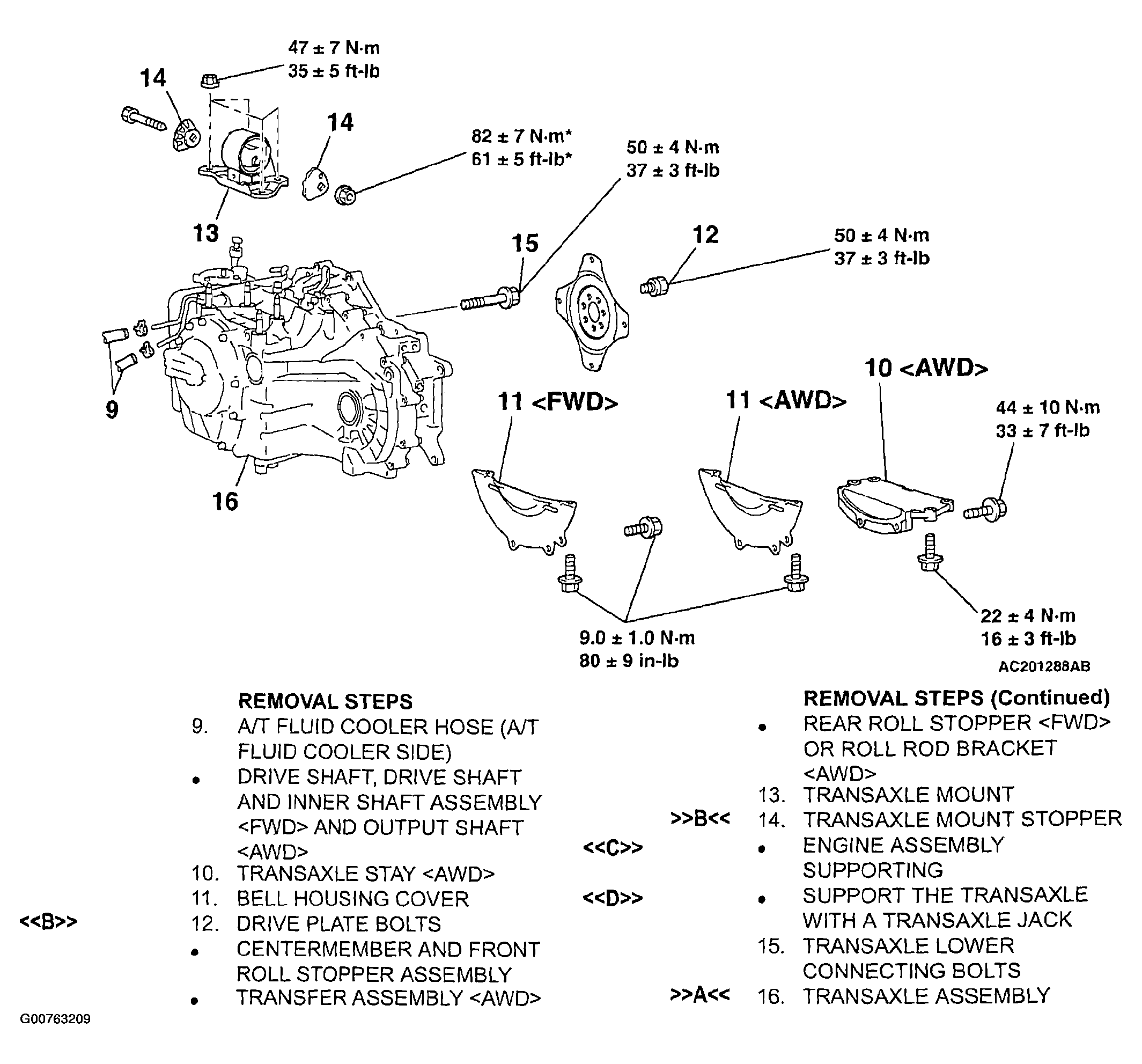

Fig 2: Removal Steps Of Transaxle Assembly (2 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:

MB991454: Engine Hanger Balancer
MB991527: Hanger
MB991895: Engine Hanger
MB991928: Engine Hanger
