Removal And Installation: Notes

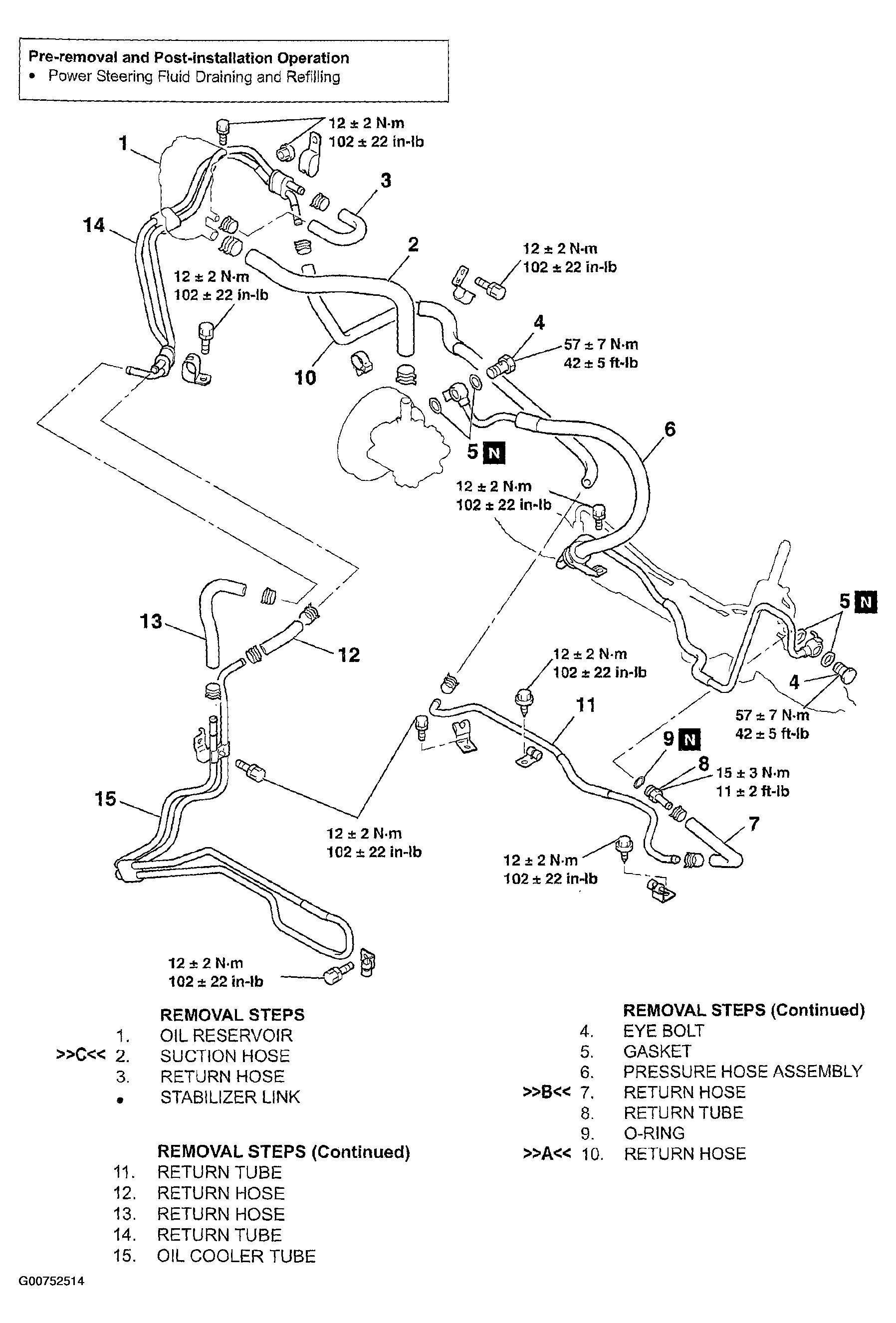

Fig 1: Removal And Installation - Power Steering Hoses
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
