A/T Control Component Layout

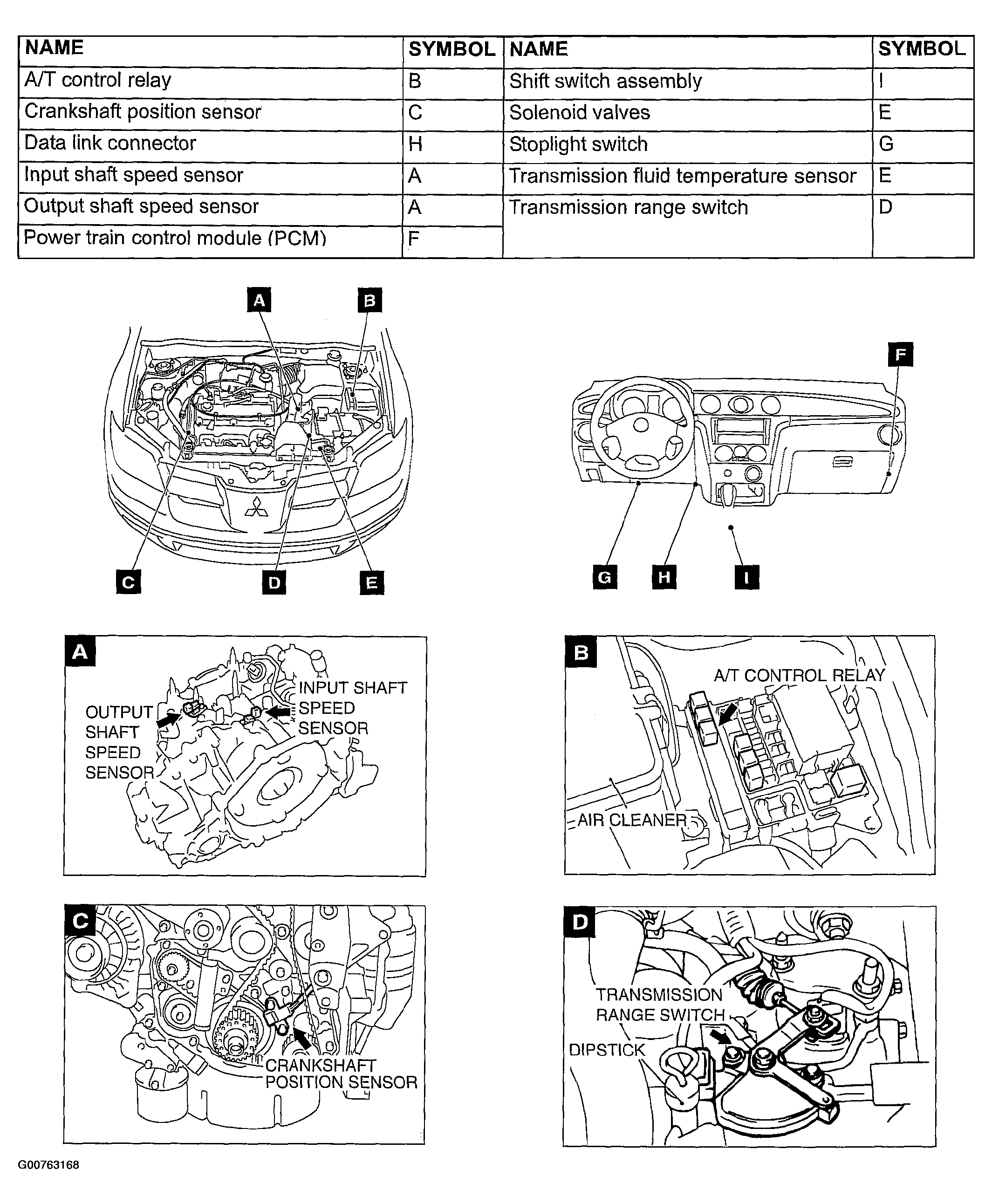

Fig 1: A/T Control Component Layout (1 Of 2)
G00763168Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

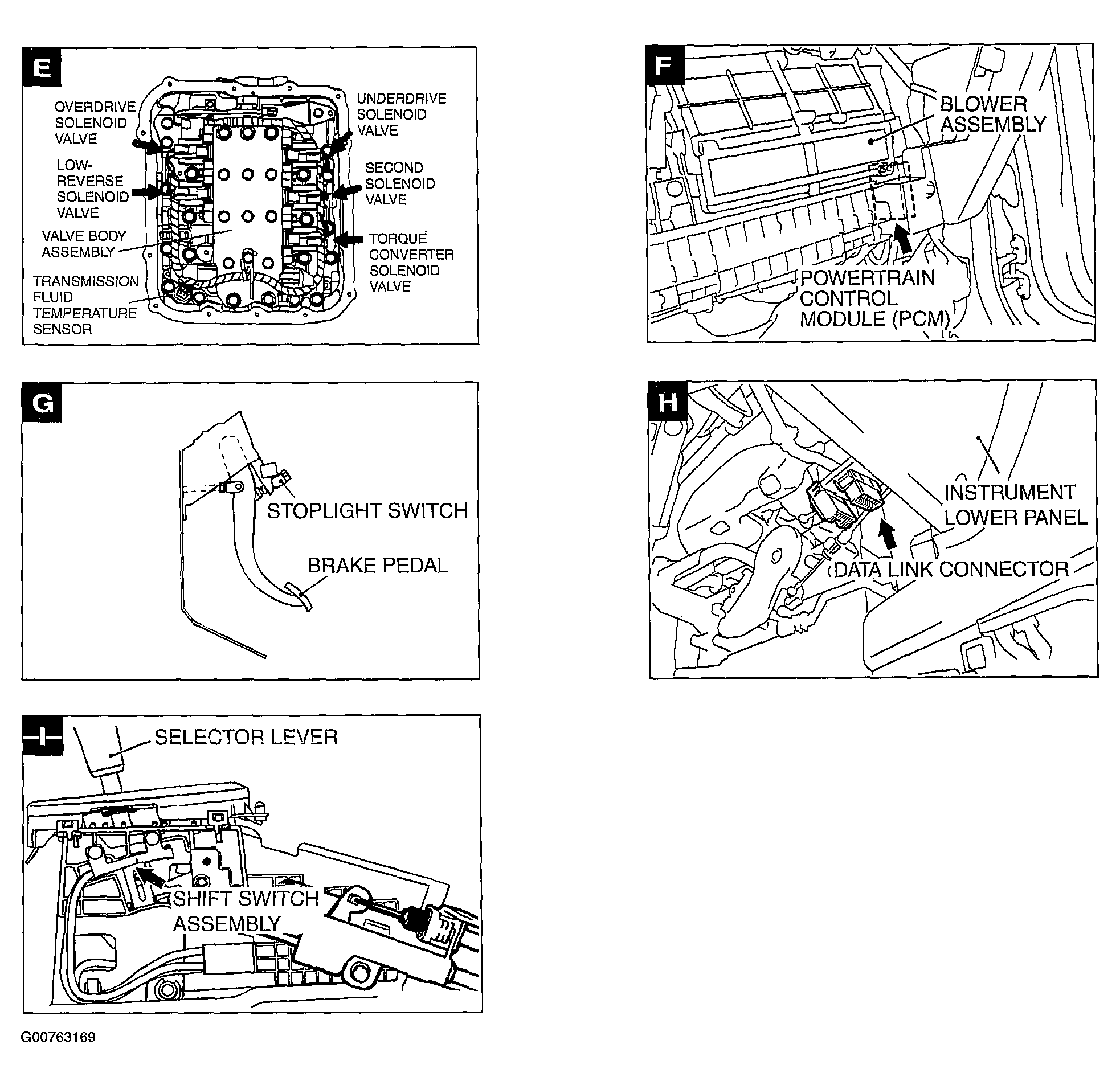

Fig 2: A/T Control Component Layout (2 Of 2)
G00763169Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
