Component Locations

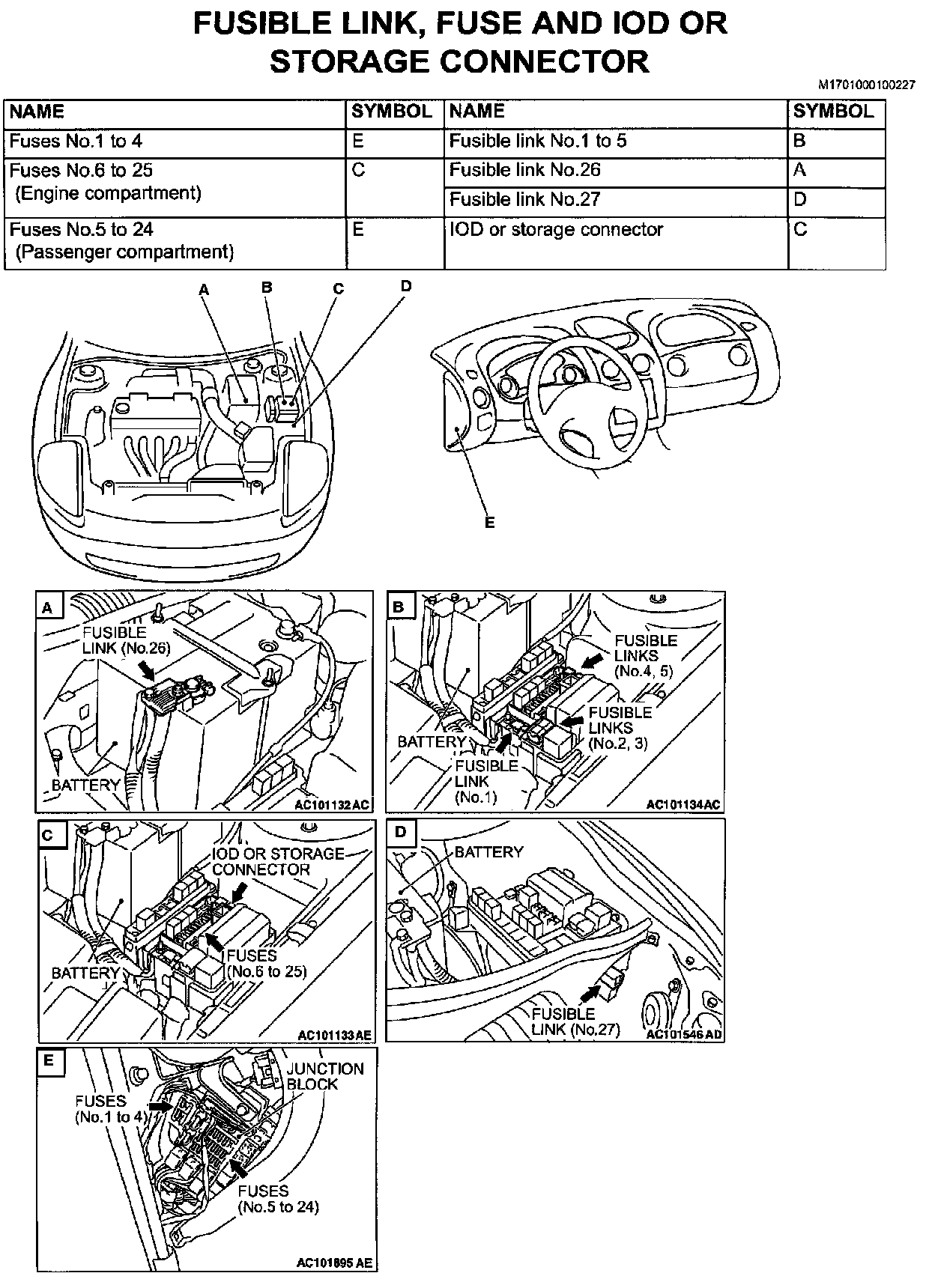

Locations:

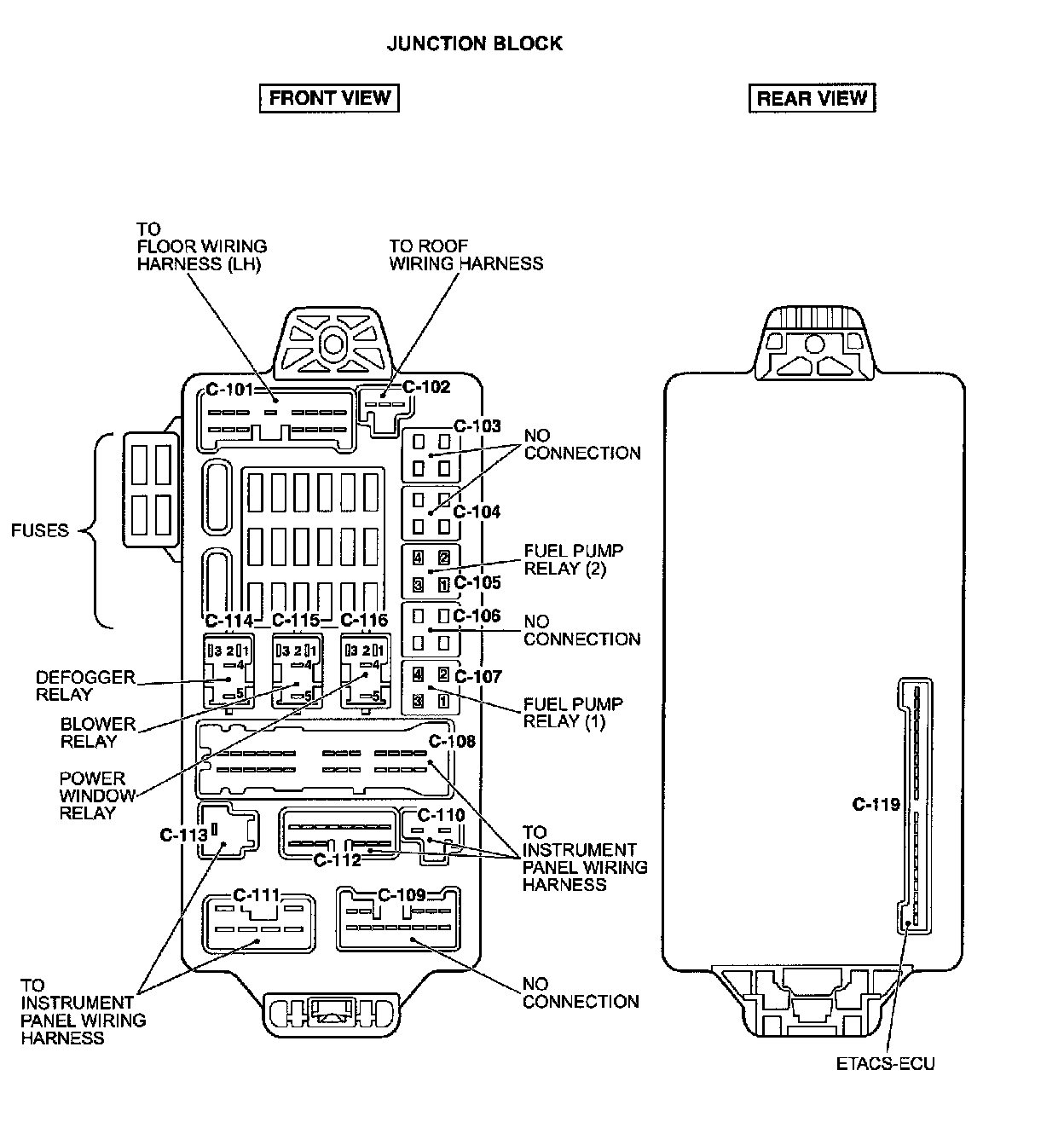

Junction Block:

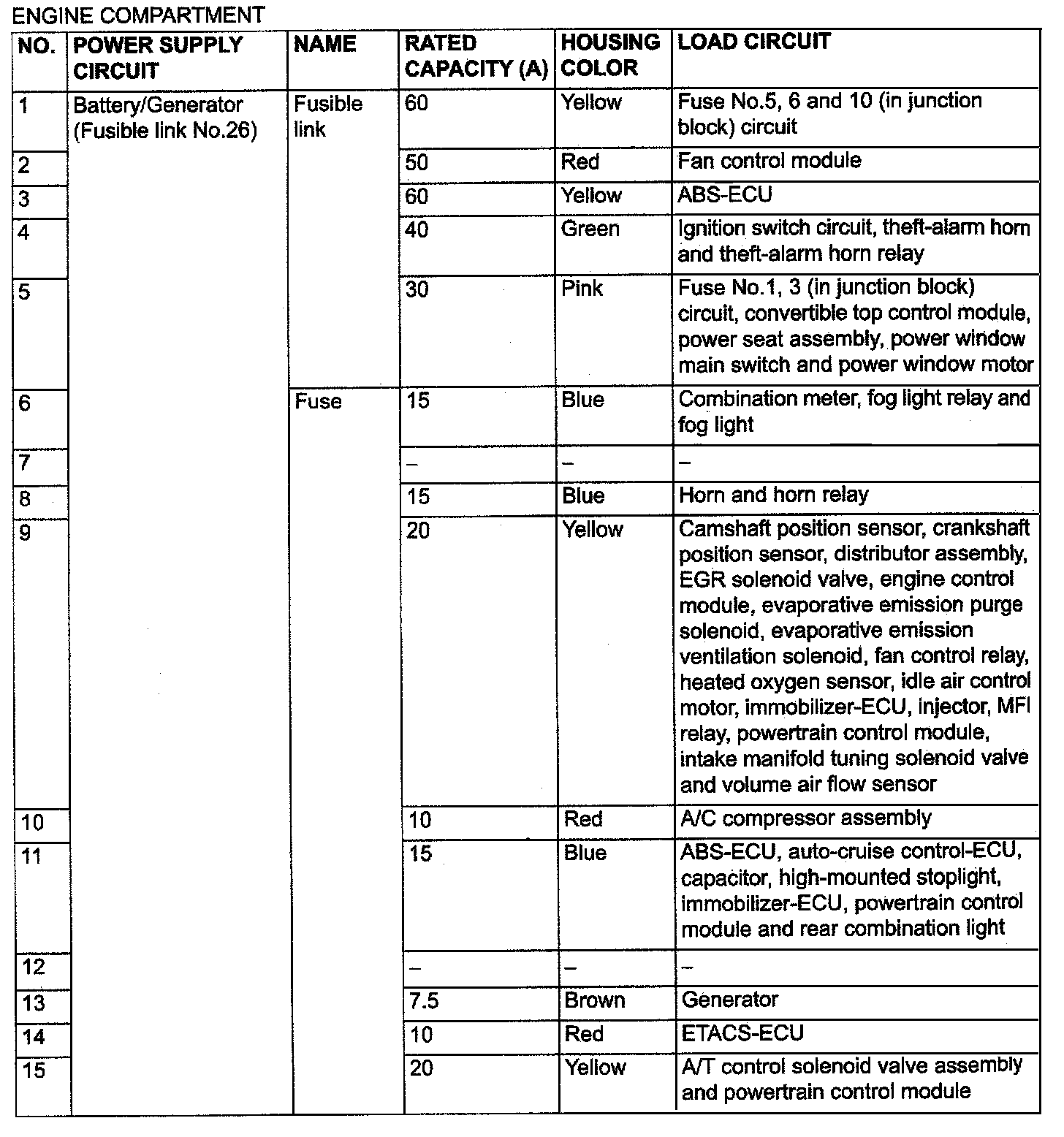

Fuses 1-27 (1 Of 3):

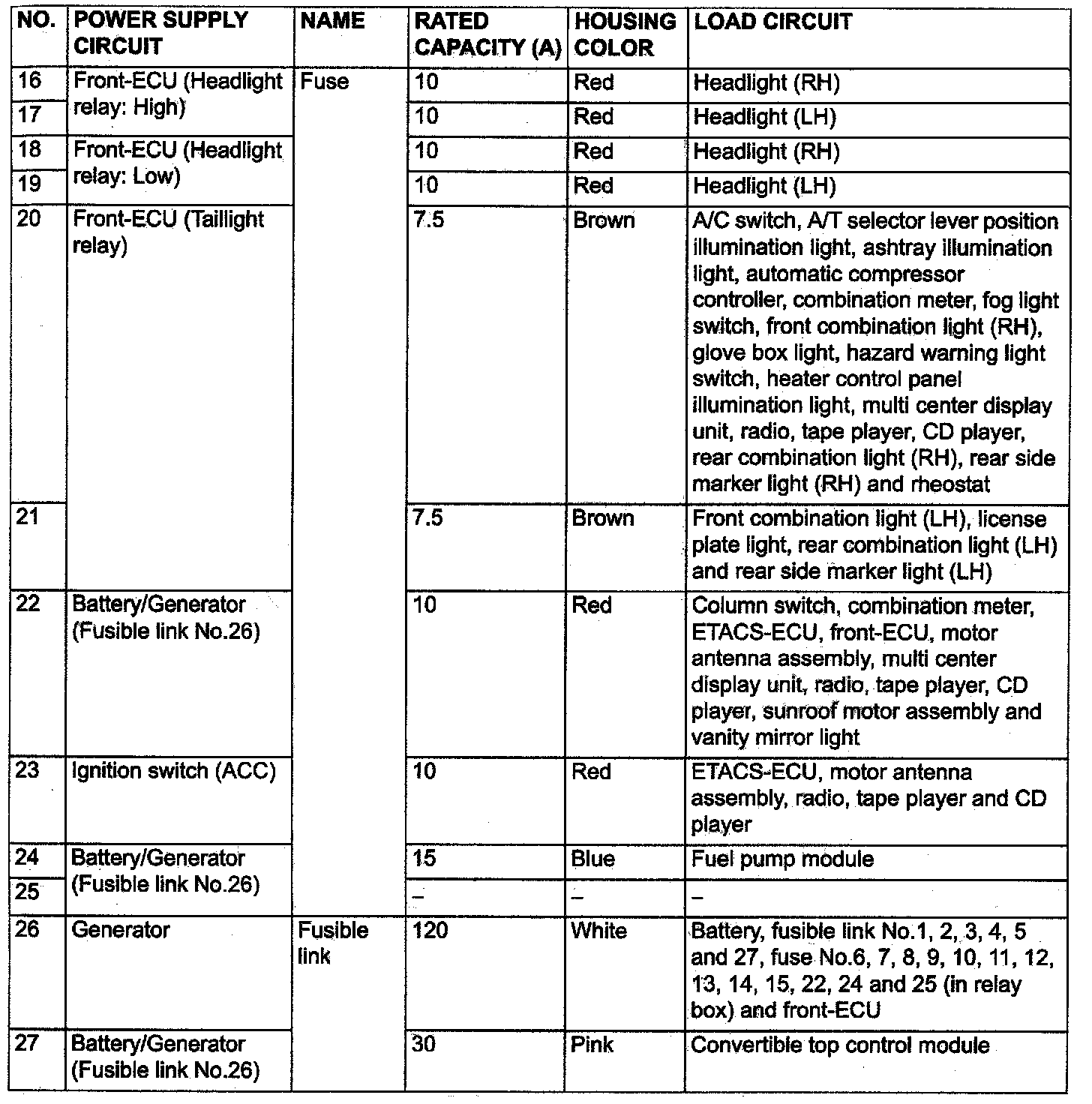

Fuses 1-27 (2 Of 3):

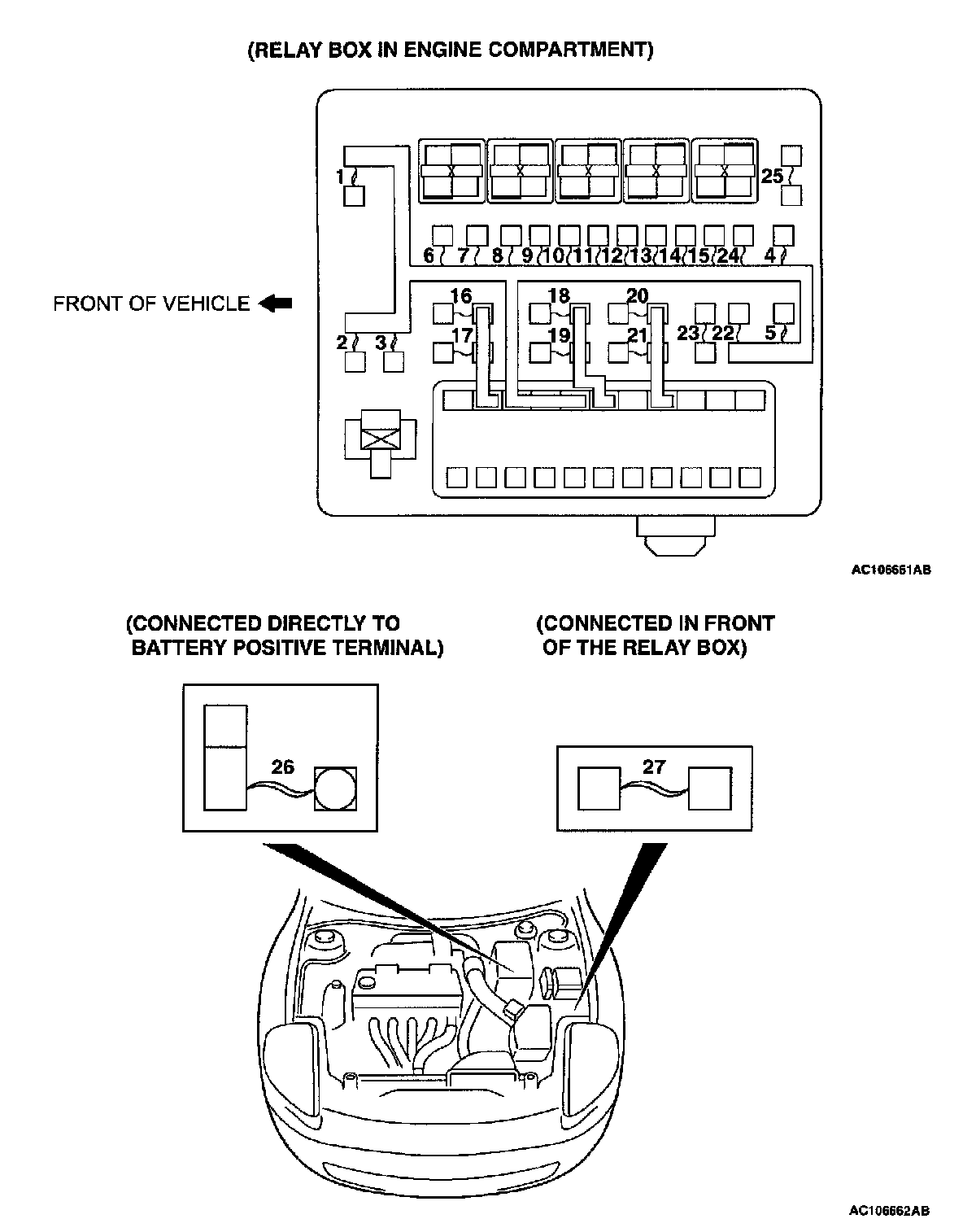

Fuses 1-27 (3 Of 3):

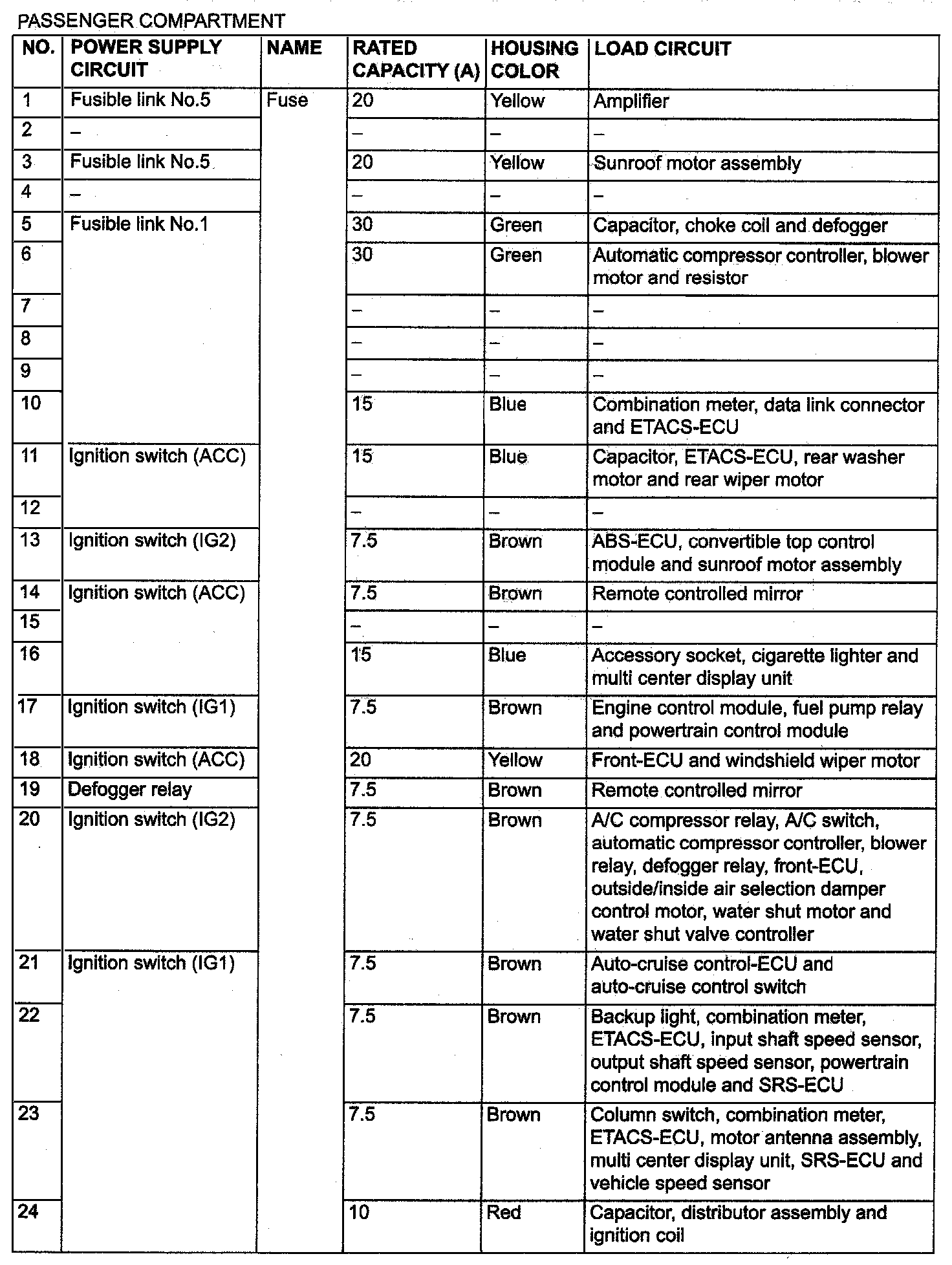

Fuses 1-24 (1 Of 2):




Fuses 1-24 (2 Of 2):

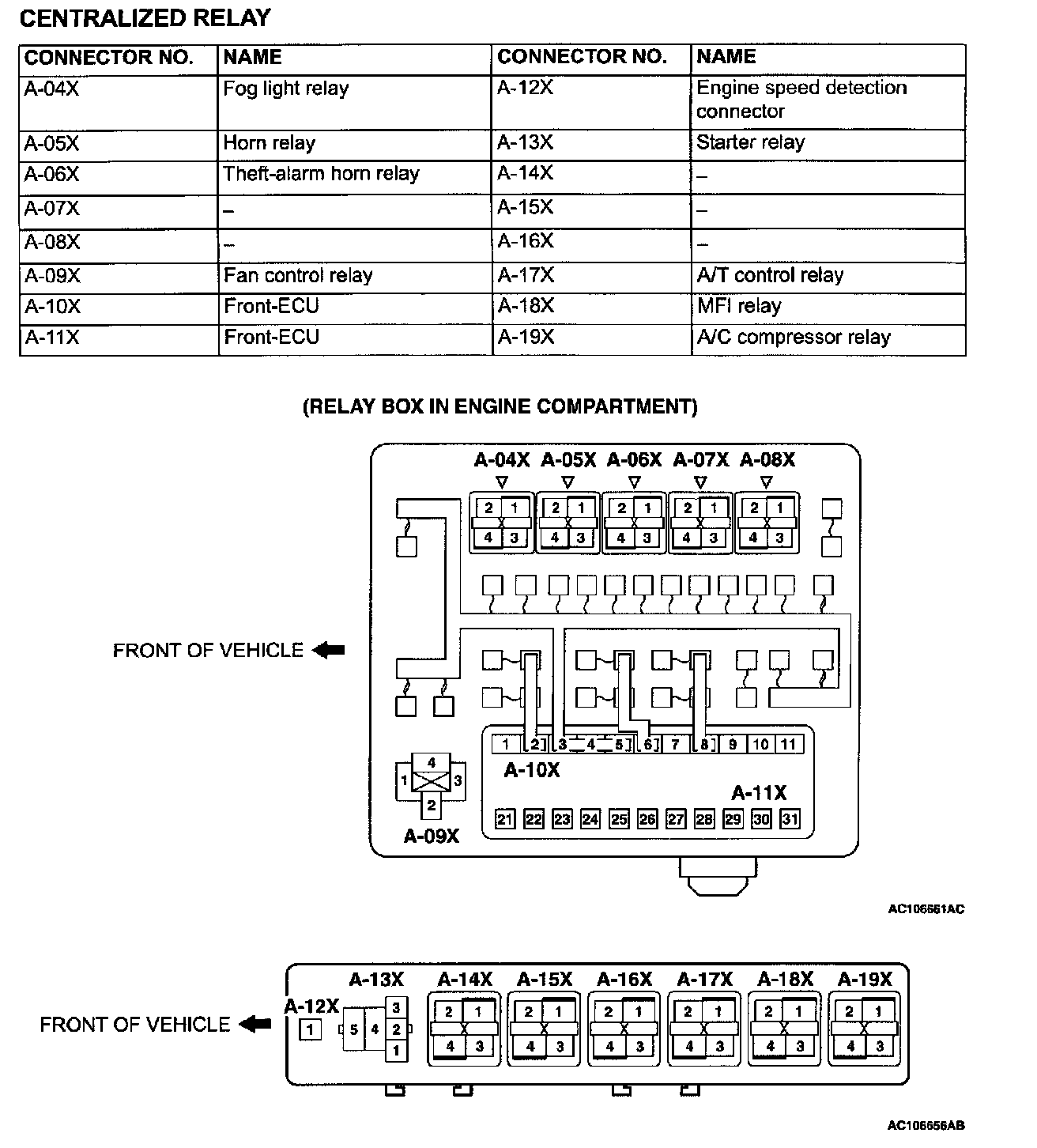

Centralized Relay:
