Operation Check: Notes

Check that the following items. If faulty, replace the sunroof-ECU.

CAUTION: Check that the following items are normal before carrying out this operation check.

1. Installation condition of the sunroof assembly
2. Installation condition, deformation and contamination of the sunroof drive cable
3. Installation of sunroof lid glass
4. Sunroof switch and sunroof motor

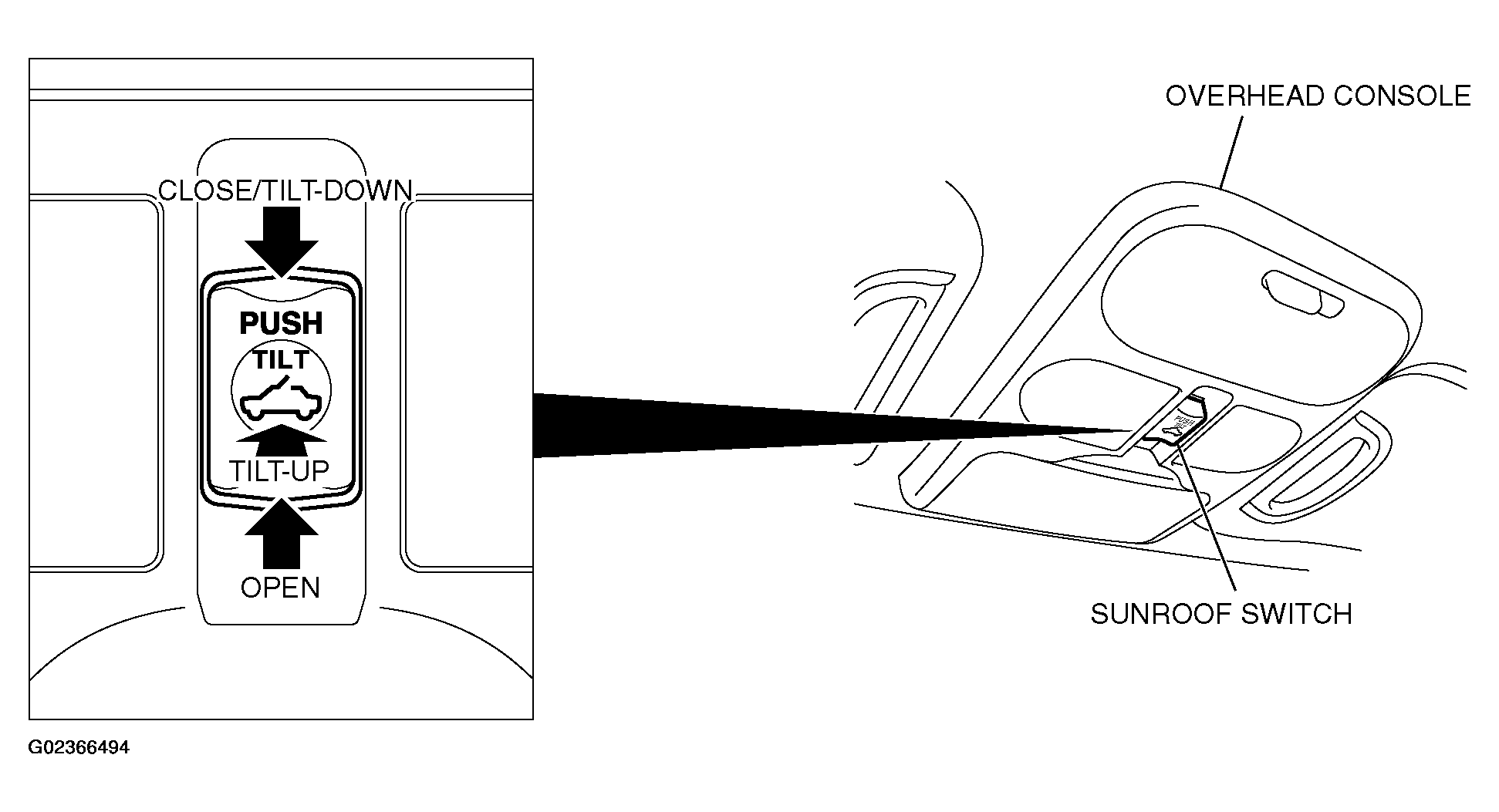

Fig 1: Identifying Sunroof Switch

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
