Power Window Operating Current Check

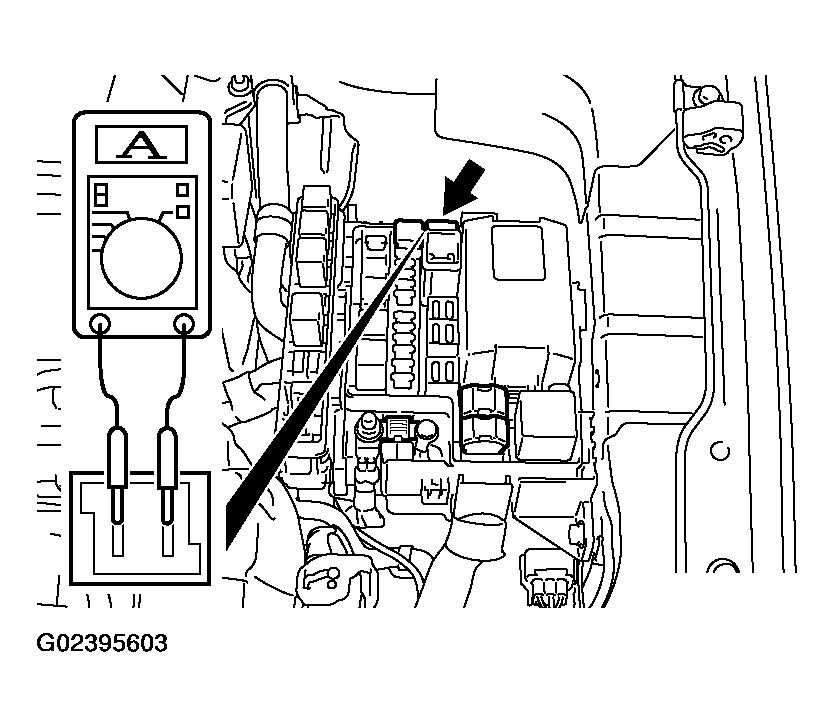

- Remove the power window fuse and connect an ammeter as shown in Fig 1 .
- When the power window switch is pressed in the "UP" position, a large amount of current flows from the time the window starts to close until it is fully closed, Measure the current during this time
Standard value (A): 5 +/- 1A [Power supply voltage 14.5 +/- 0.5V, 25°C (77°F)]
- If the operation current is outside the standard value, refer to INPUT SIGNAL CHART .
