Removal And Installation: Notes

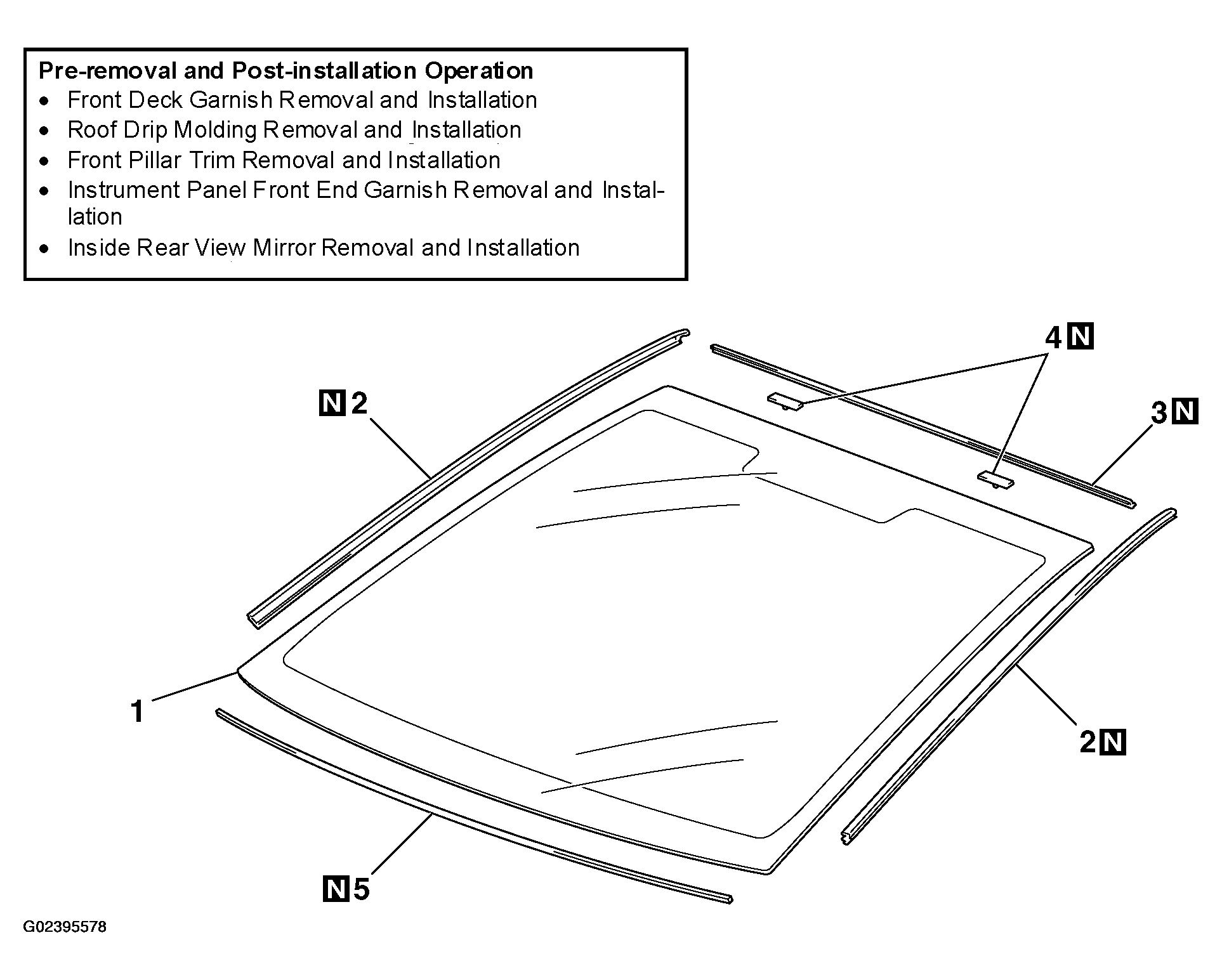

Fig 1: Pre-Removal And Post-Installation Operation Steps For Windshield
G02395578Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

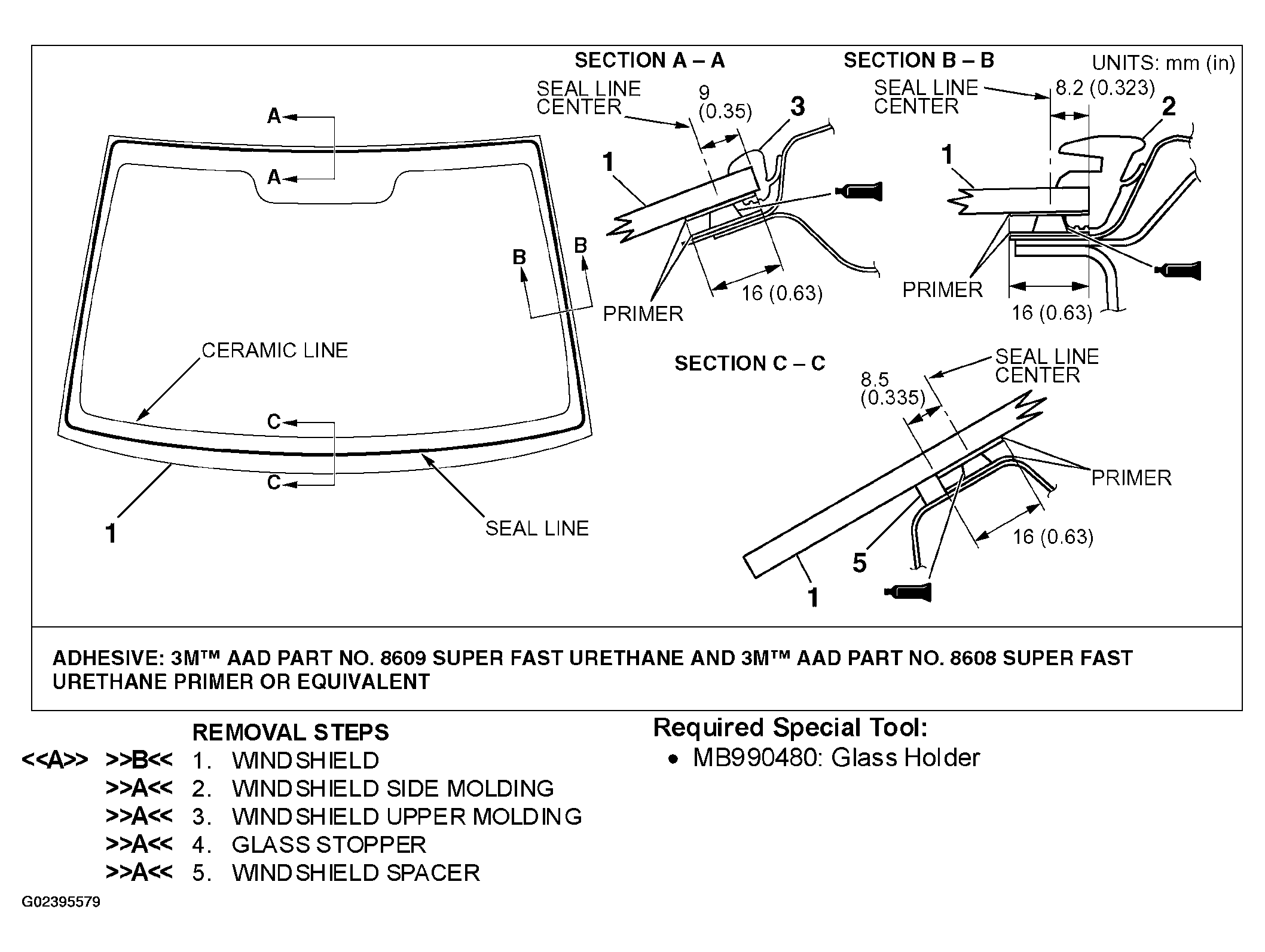

Fig 2: Removing And Installing Windshield
G02395579Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
