INSPECTION PROCEDURE 1: Communication With Scan Tool is Not Possible.: Notes

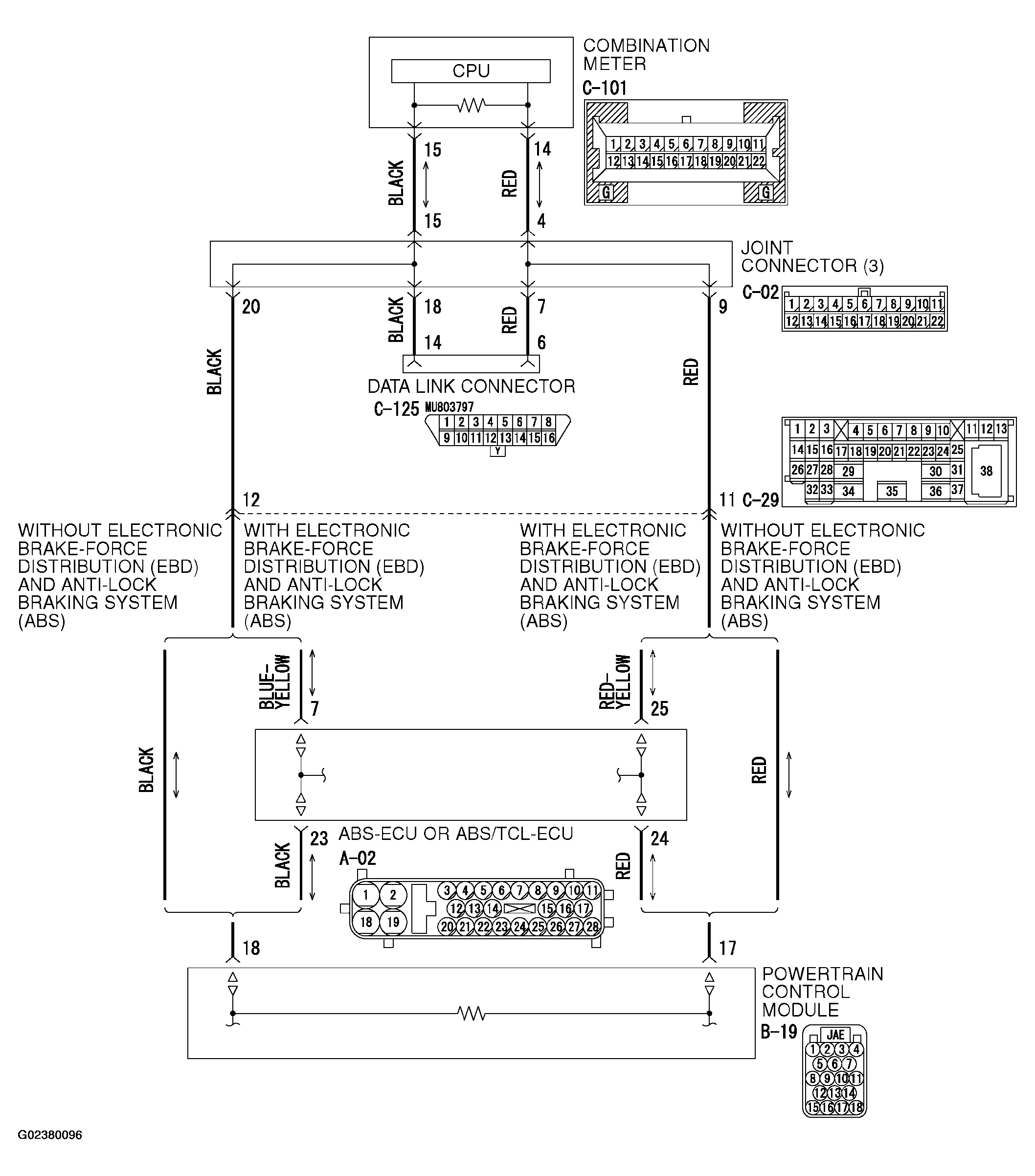

Fig 1: Identifying Combination Meter CAN-Bus Line Circuit Diagram
G02380096Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

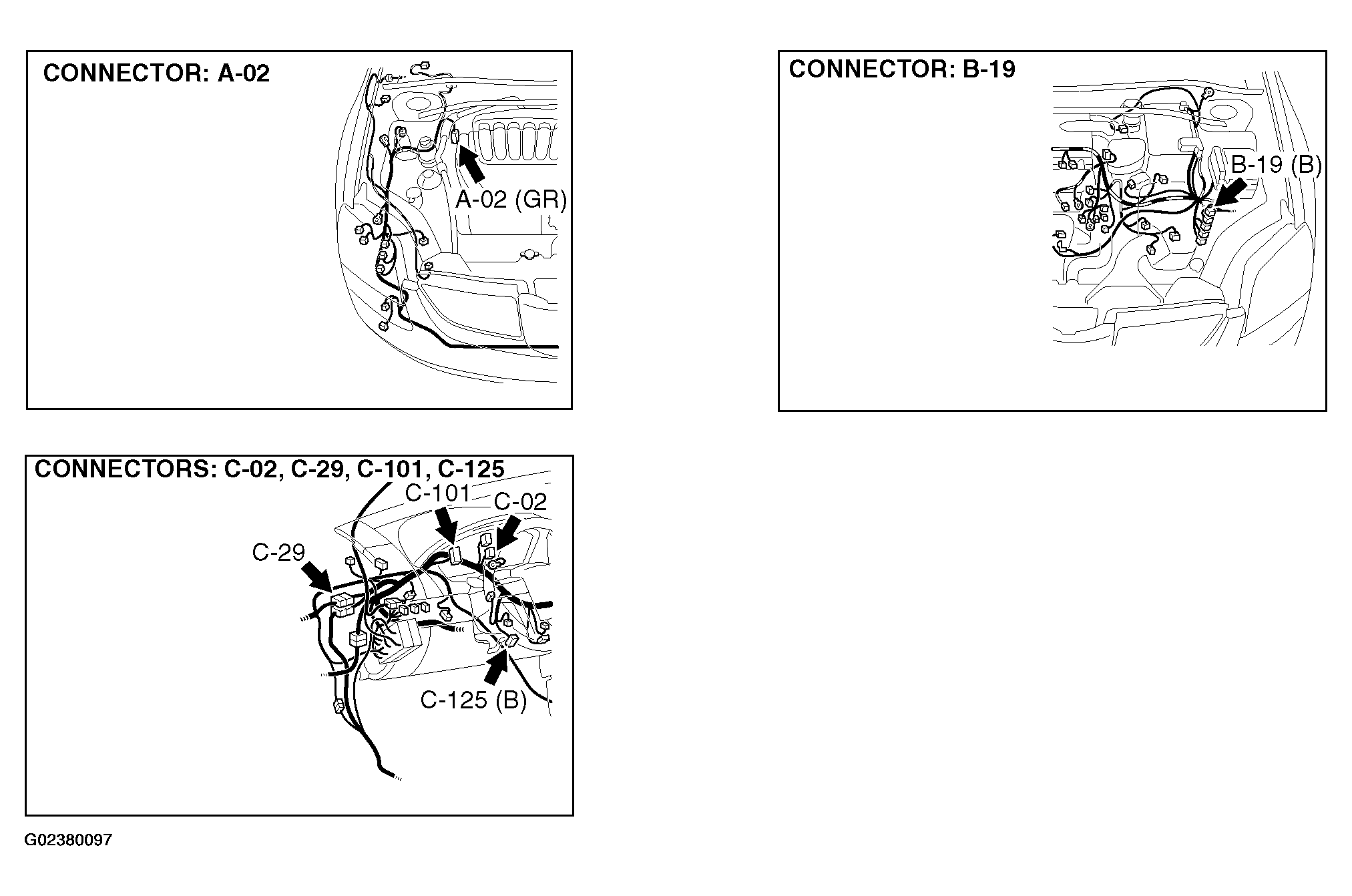

Fig 2: Locating Combination Meter CAN-Bus Line Connectors
G02380097Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
