INSPECTION PROCEDURE 8: Tachometer does not Work.: Notes

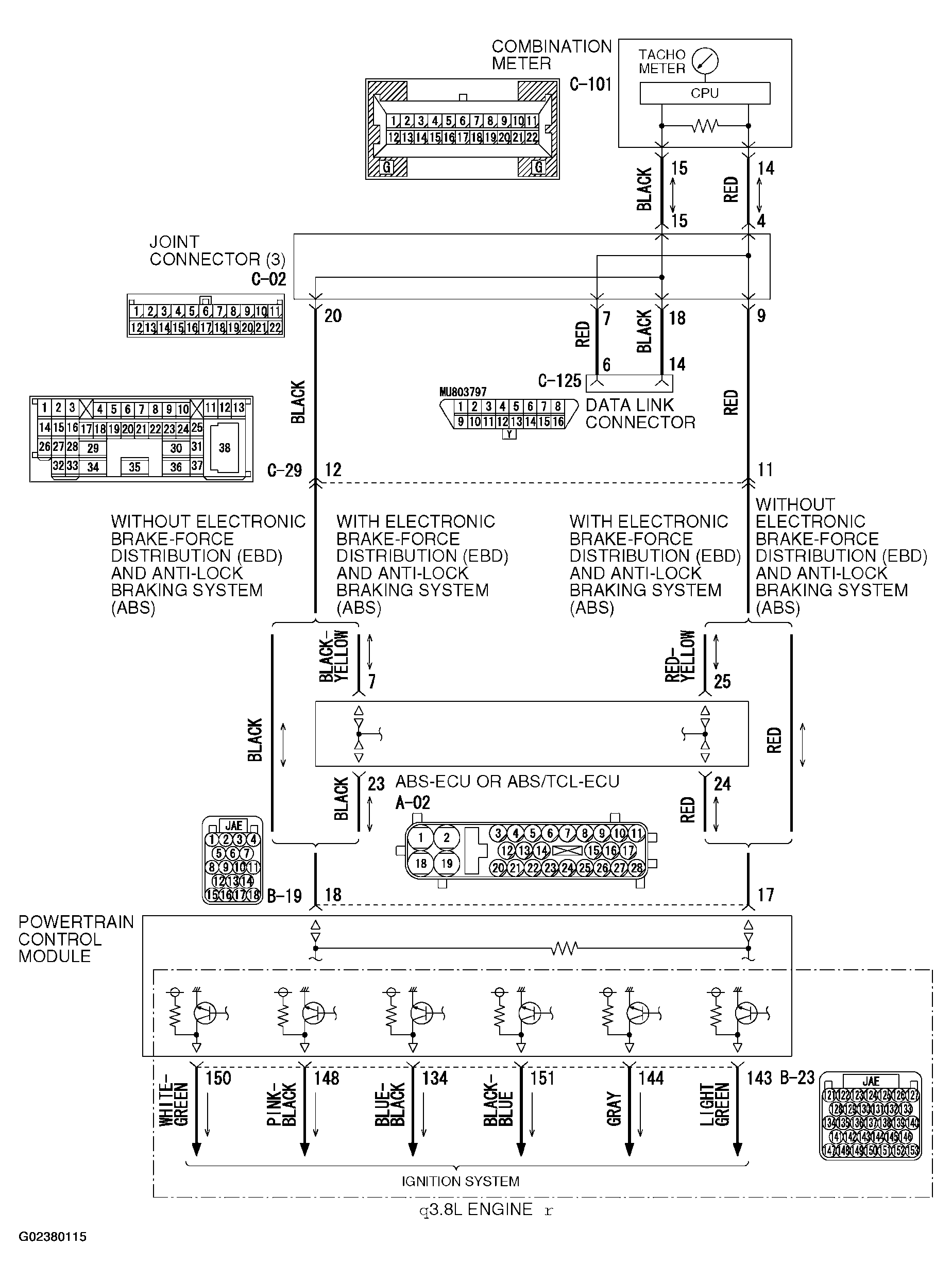

Fig 1: Identifying Tachometer Circuit Diagram
G02380115Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

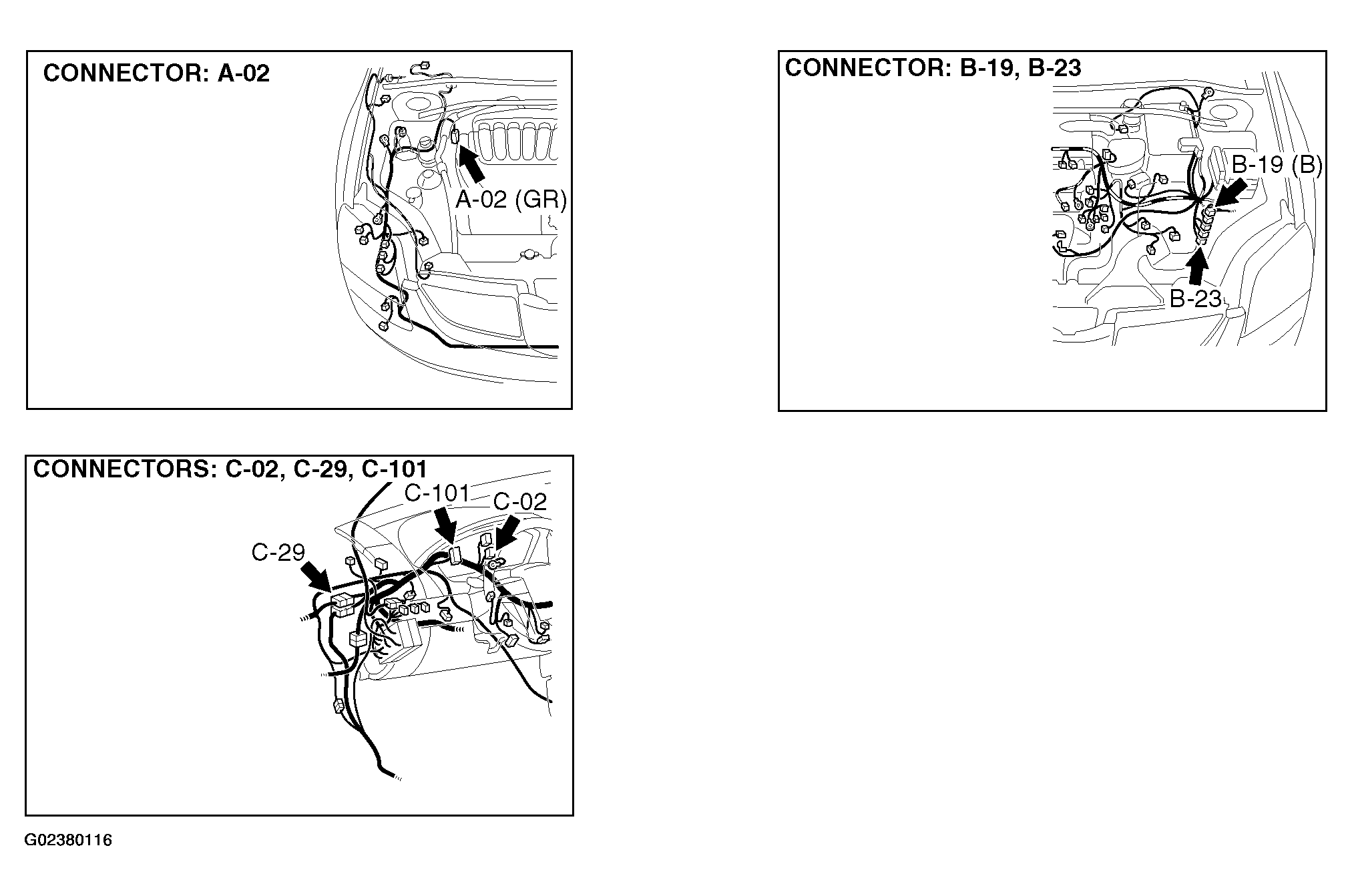

Fig 2: Locating Tachometer Circuit Connectors
G02380116Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
