DTC 11: Transponder Communication System or Radio Interference of Encrypted Code.: Notes

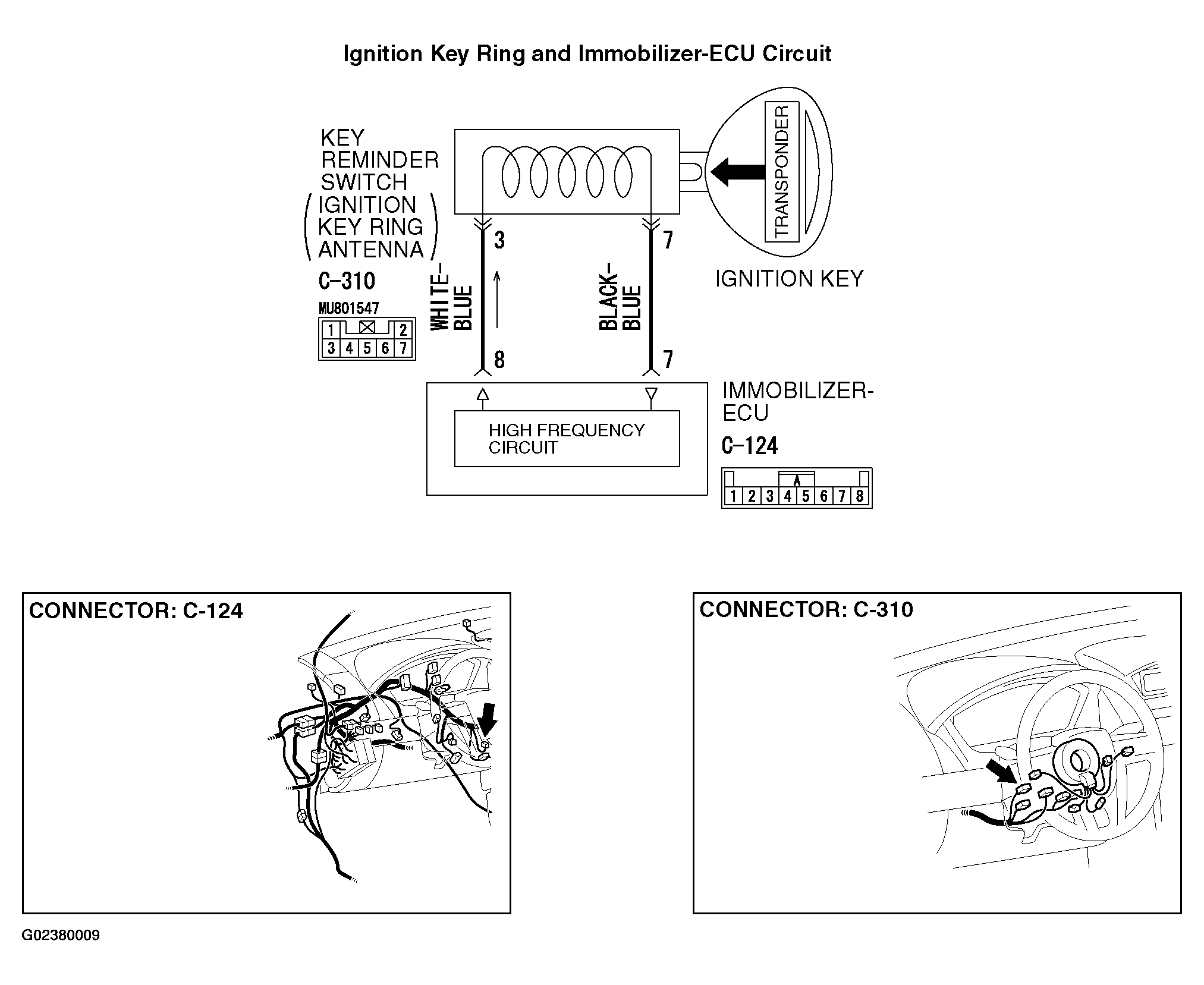

Fig 1: Identifying Ignition Key Ring And Immobilizer-ECU Circuit Diagram
G02380009Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
