INSPECTION PROCEDURE 1: Communication with Scan Tool MB991958 is Impossible.: Notes

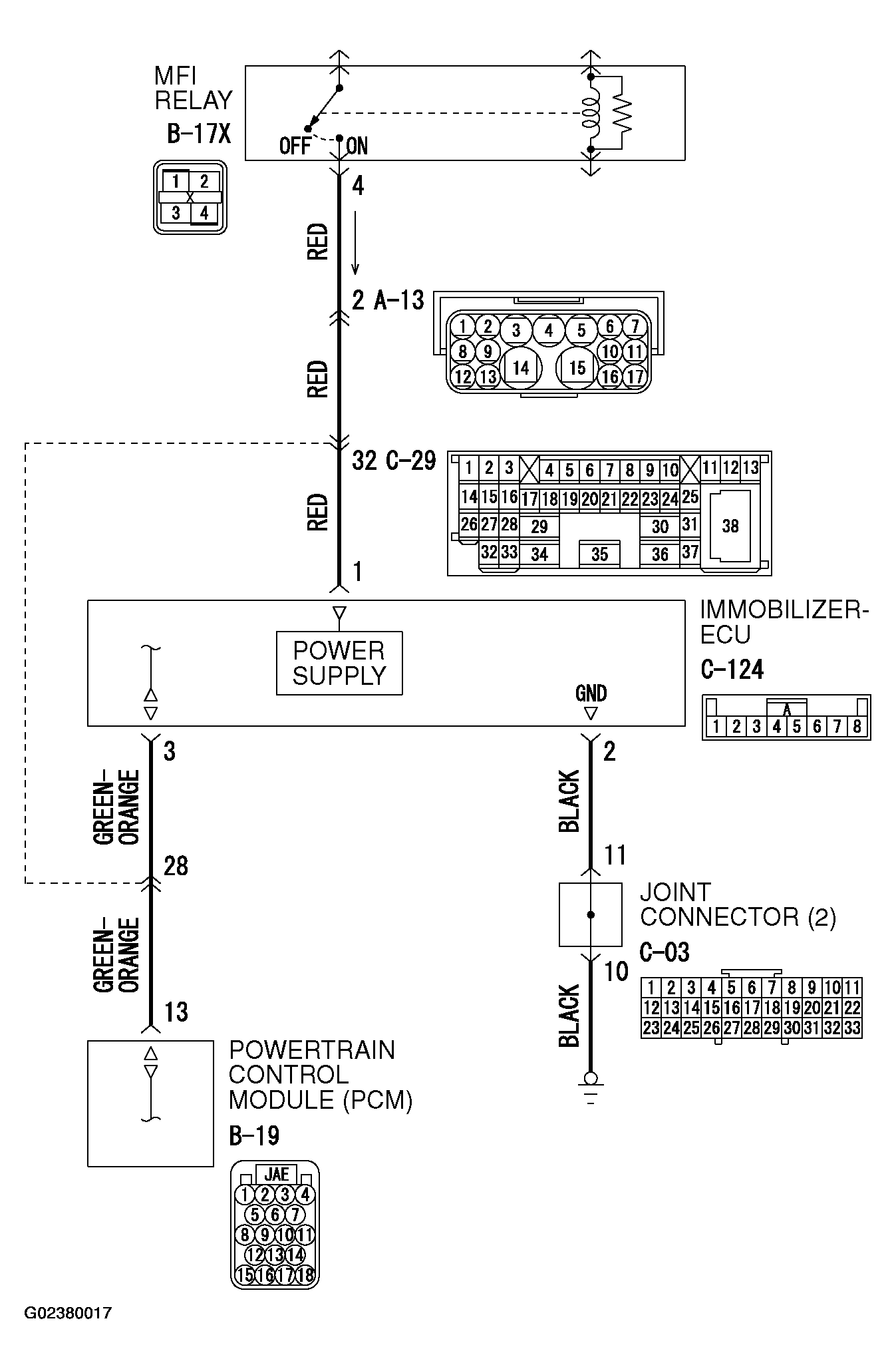

Fig 1: Identifying Communication Line Circuit Diagram
G02380017Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

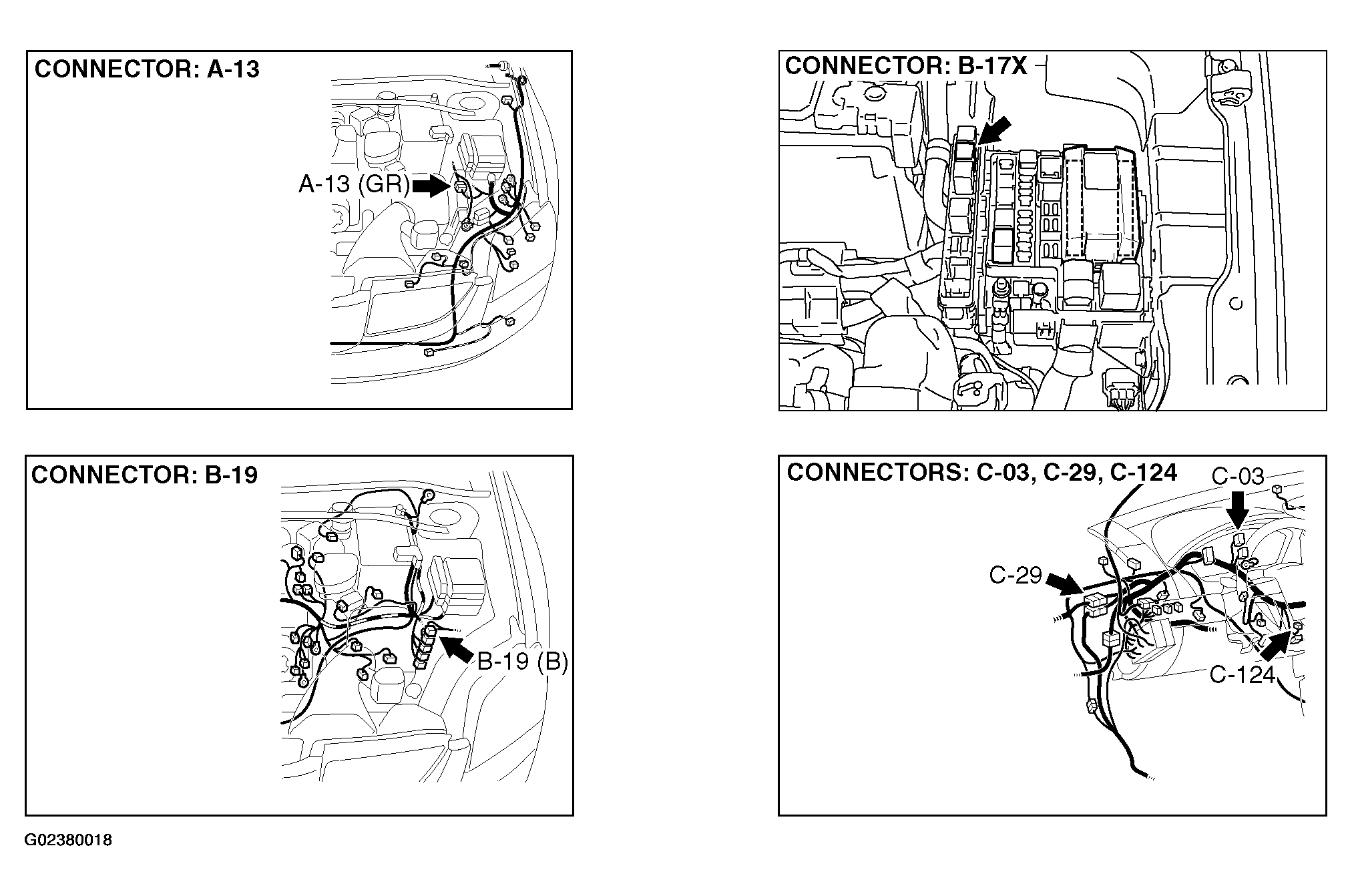

Fig 2: Locating Communication Line Connectors
G02380018Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
