Circuit Protection Devices

CIRCUIT PROTECTION DEVICES LOCATION

Component Location
Engine Compartment Relay Box At left side of engine compartment. See Figure .

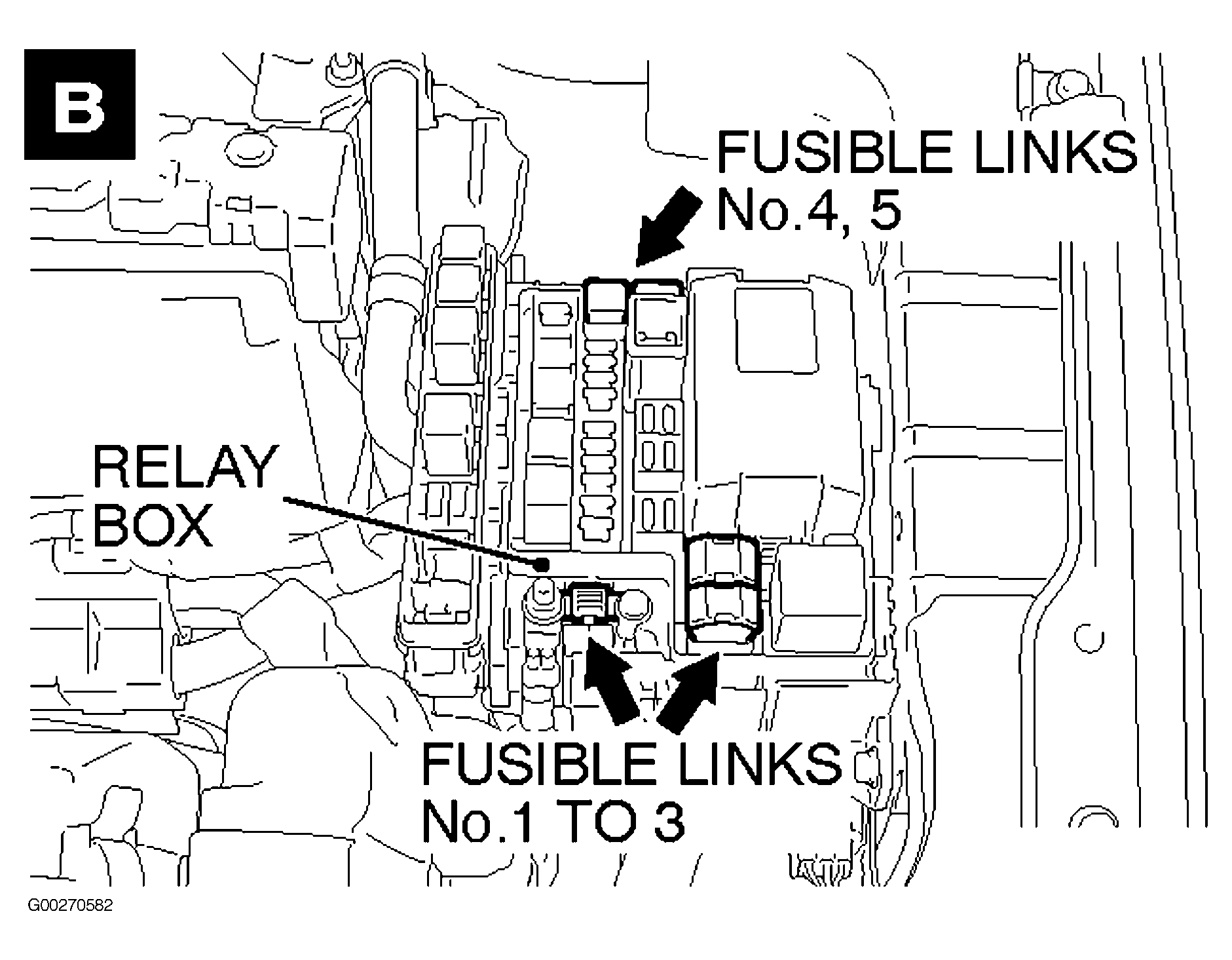

Fusible Link No. 1 - 5 On engine compartment relay box. See Figure .

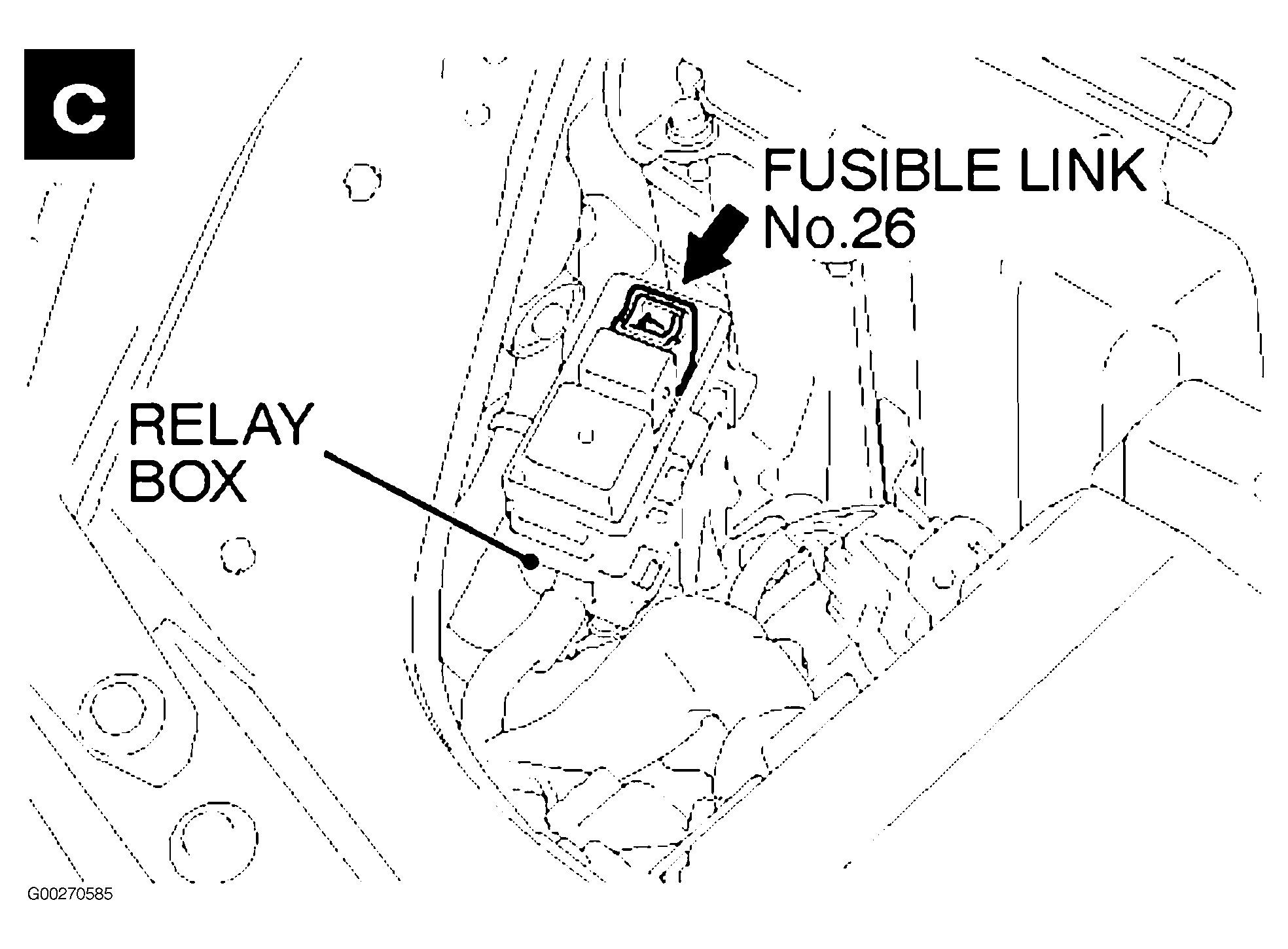

Fusible Link No. 26 In relay box. See Figure .

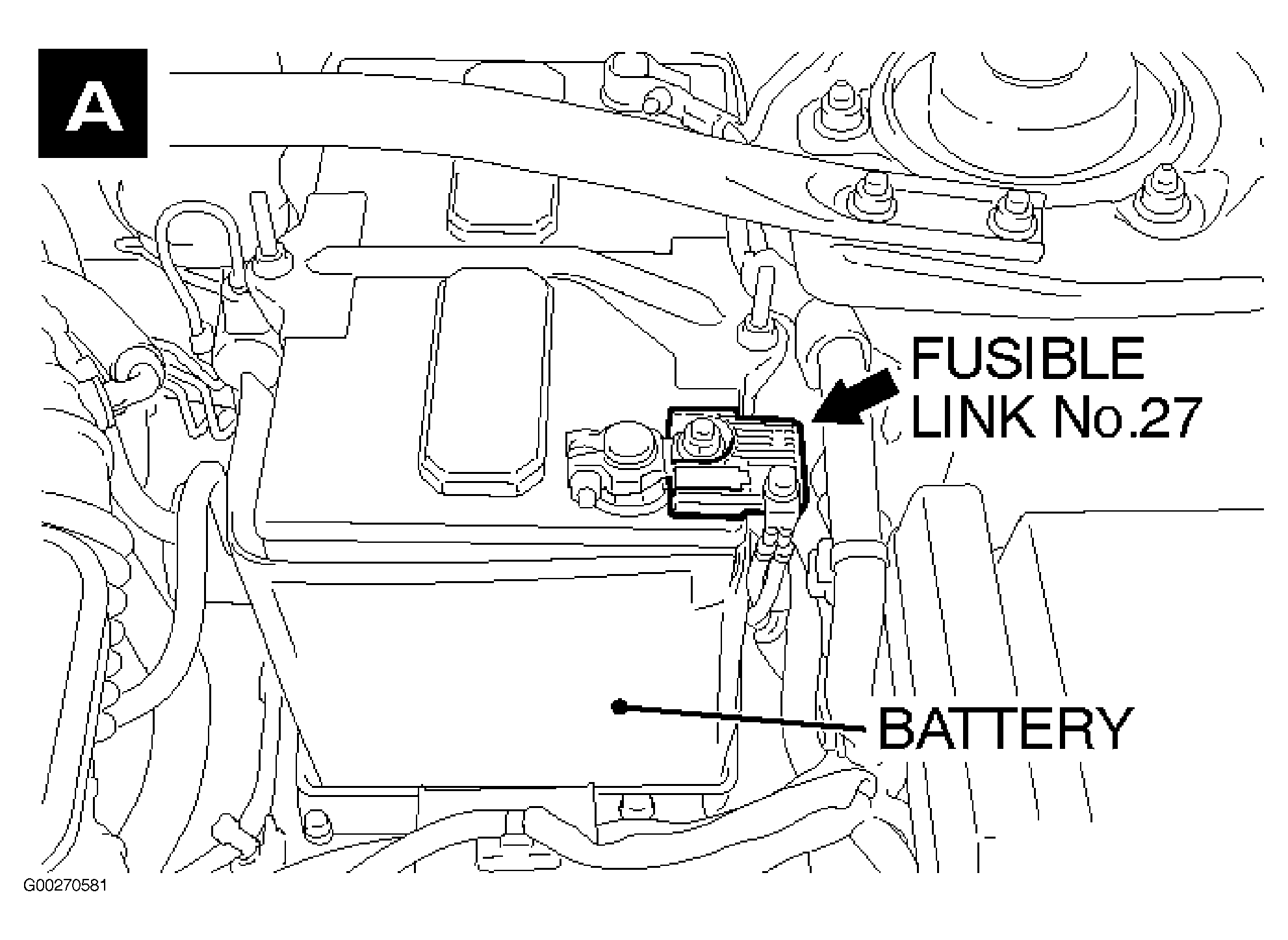

Fusible Link No. 27 At positive battery terminal connection. See Figure .

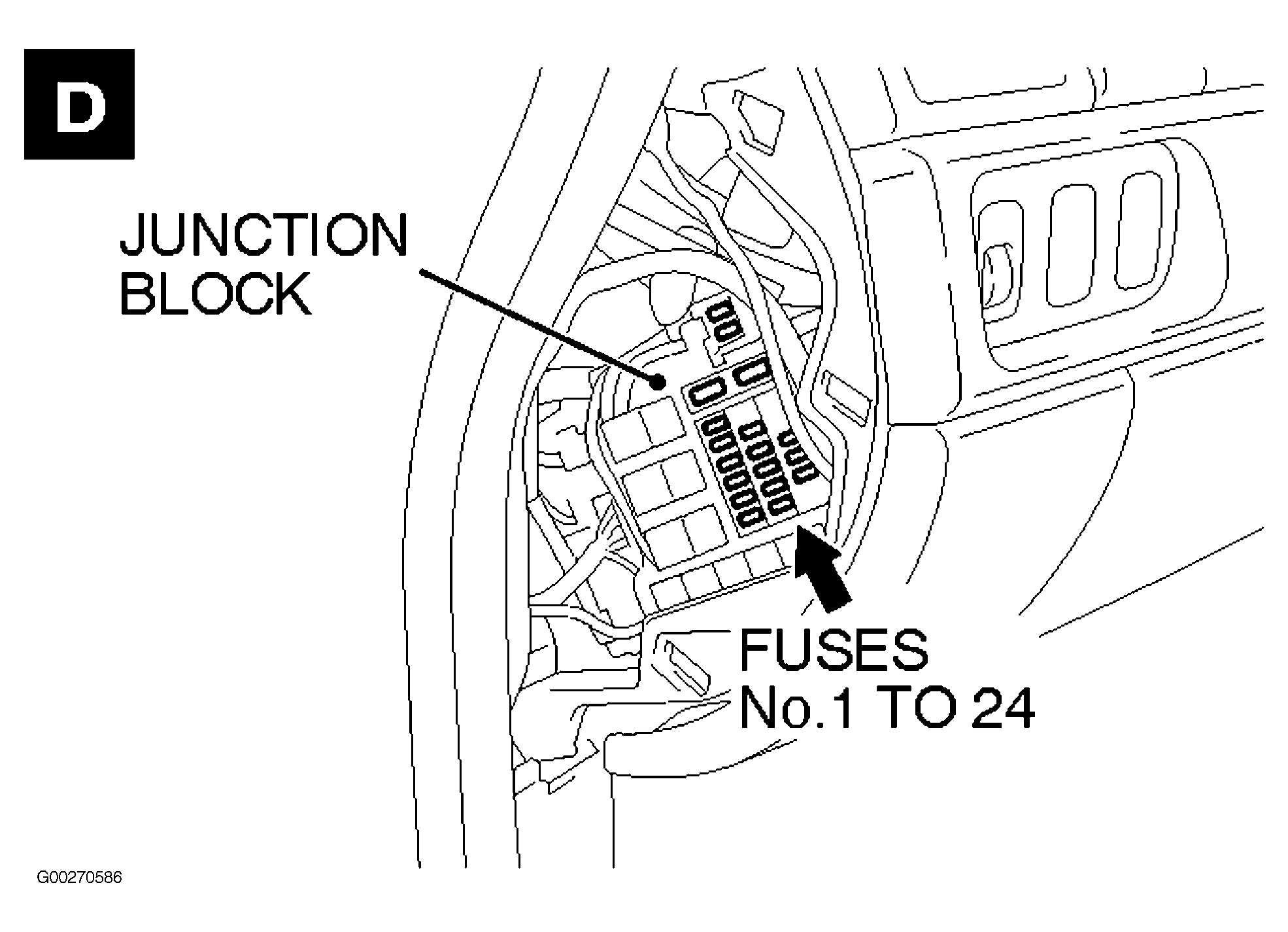

Junction Block Behind left side of dash. See Figure .

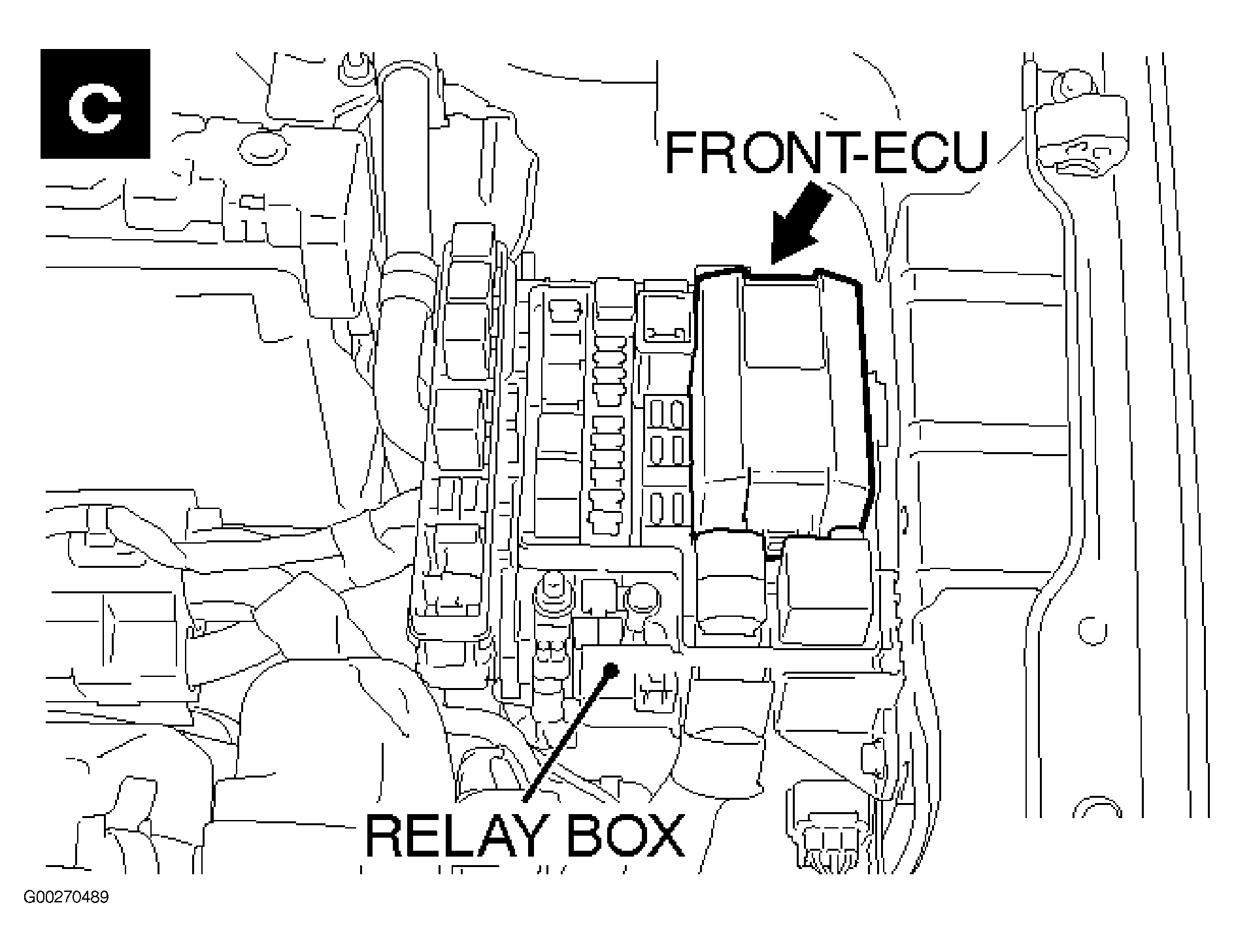

Relay Box Left front of engine compartment. See Figure .
