Special Tools

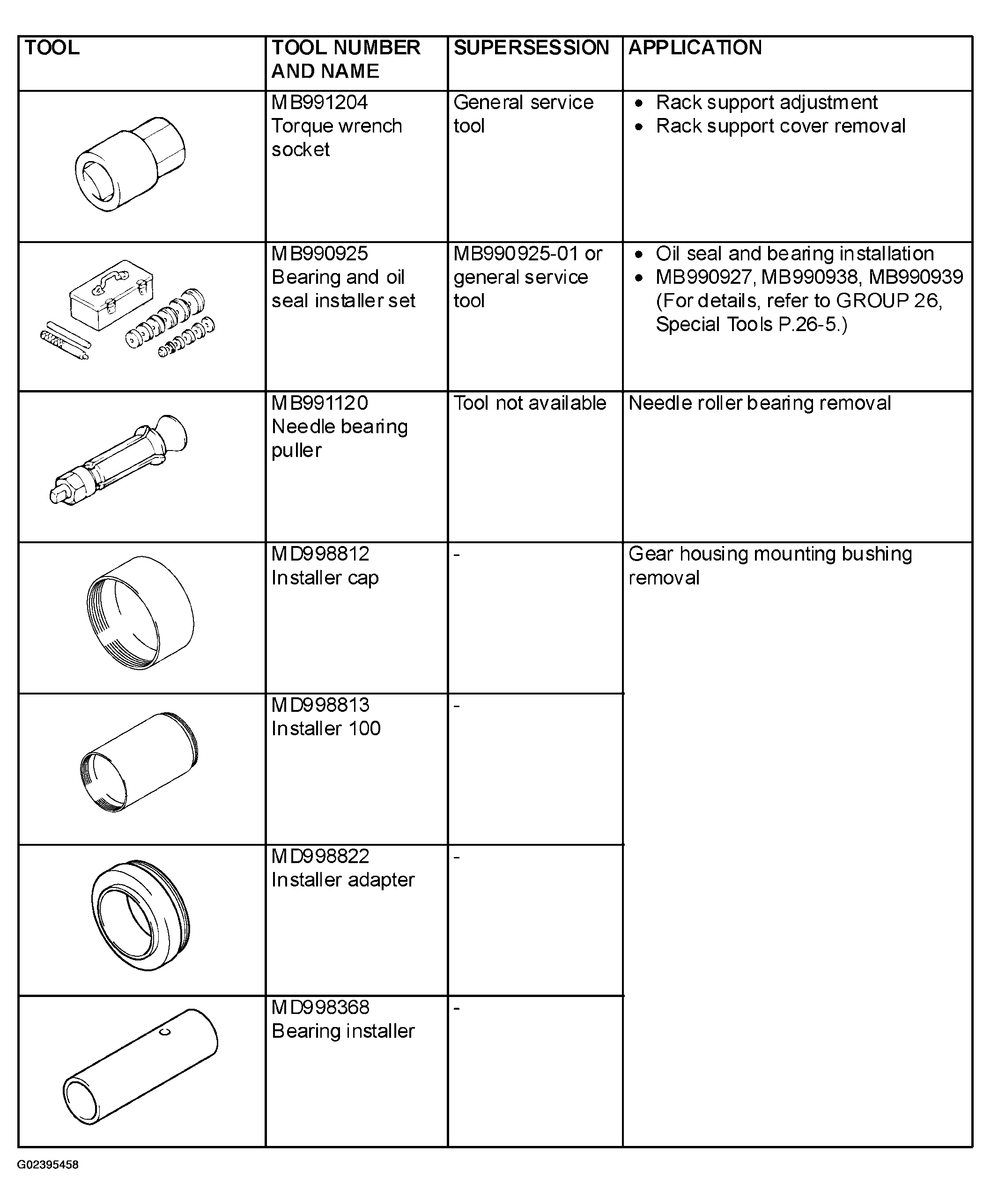

Fig 1: Identifying Power Steering Special Tools (1 of 4)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

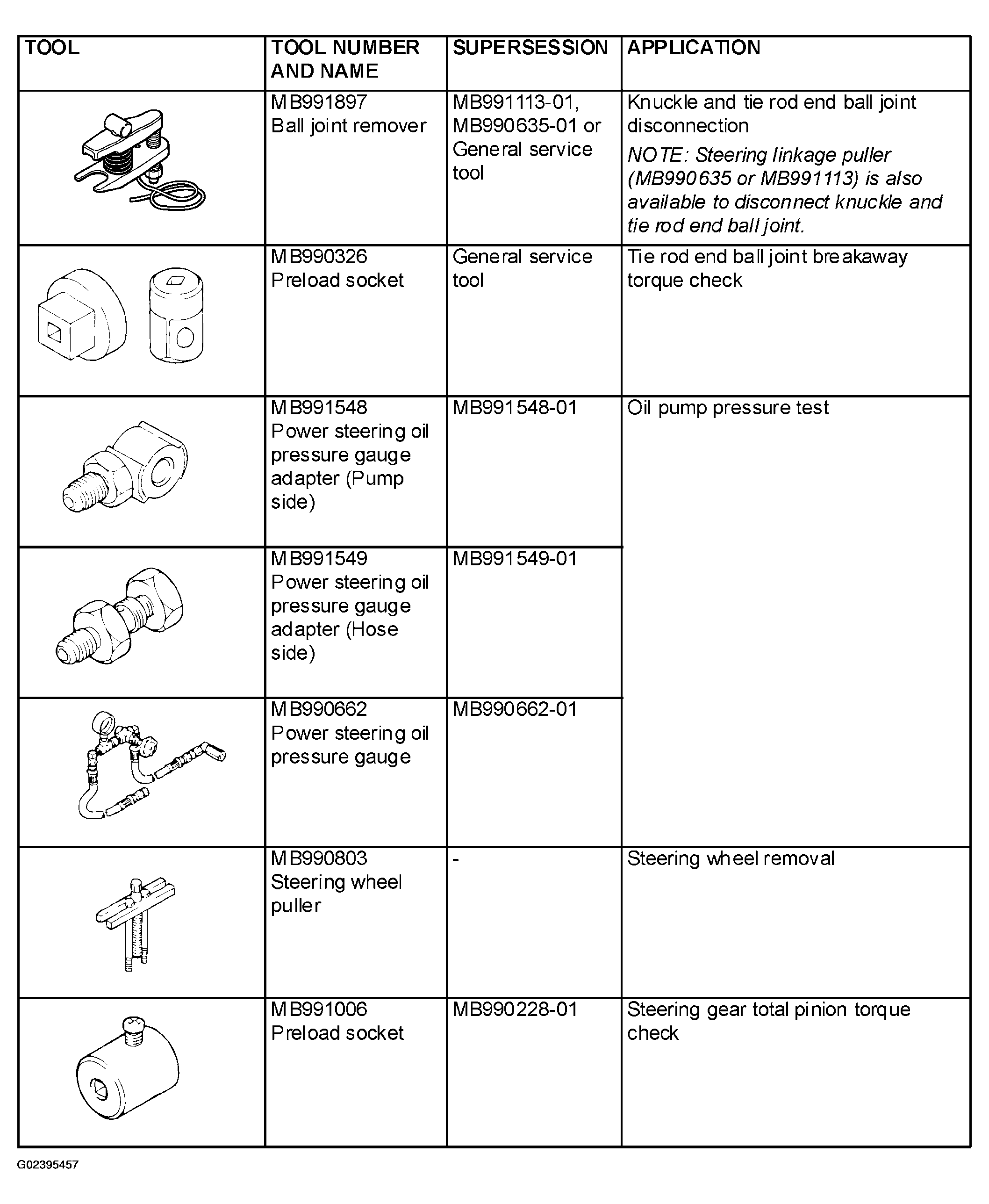

Fig 2: Identifying Power Steering Special Tools (2 of 4)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

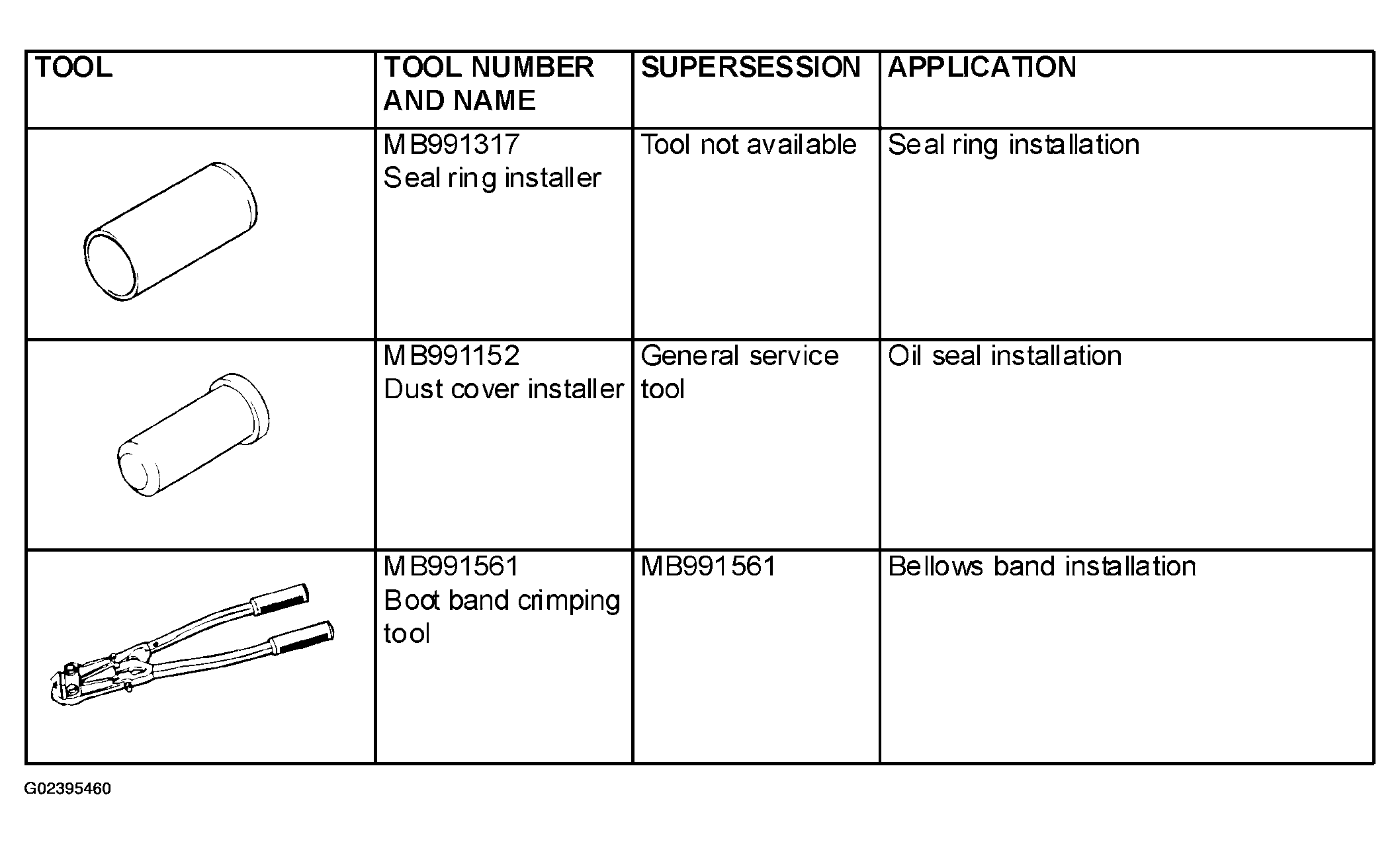

Fig 3: Identifying Power Steering Special Tools (3 of 4)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

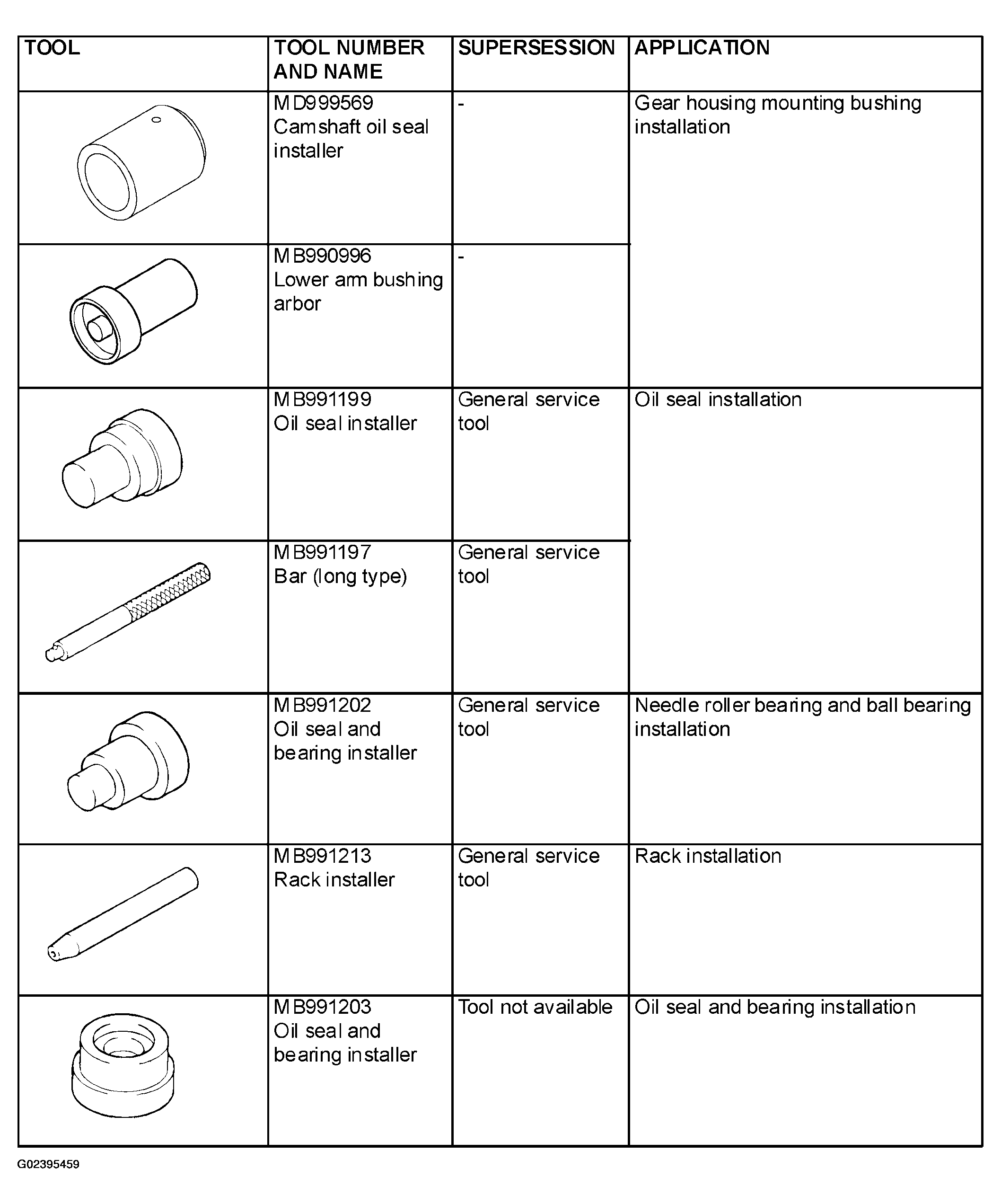

Fig 4: Identifying Power Steering Special Tools (4 of 4)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
