Emission Control -- Except Evolution: Diagnosis

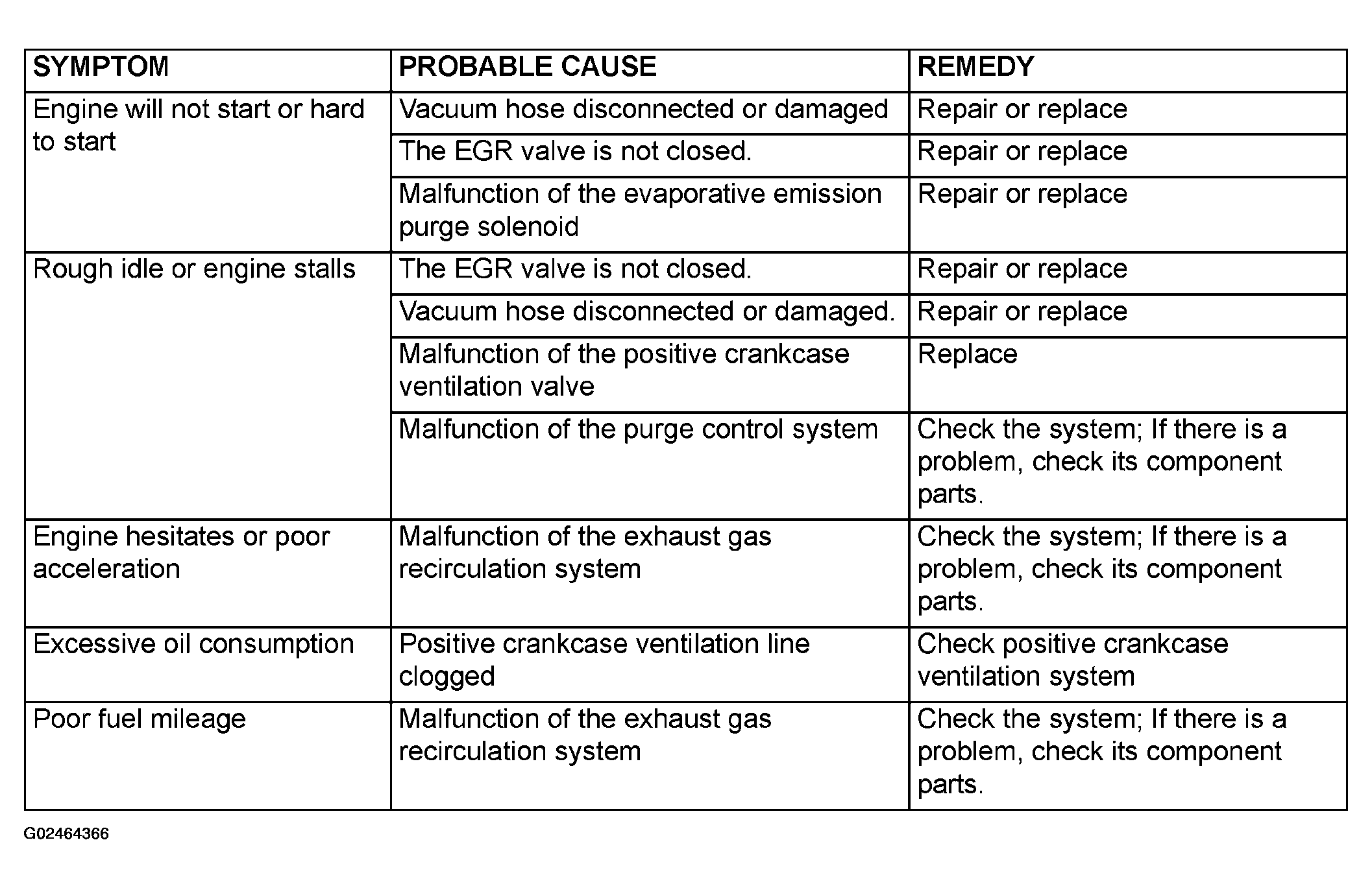

Fig 1: Emission Control Diagnosis Symptom Chart
G02464366Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
