Special Tools

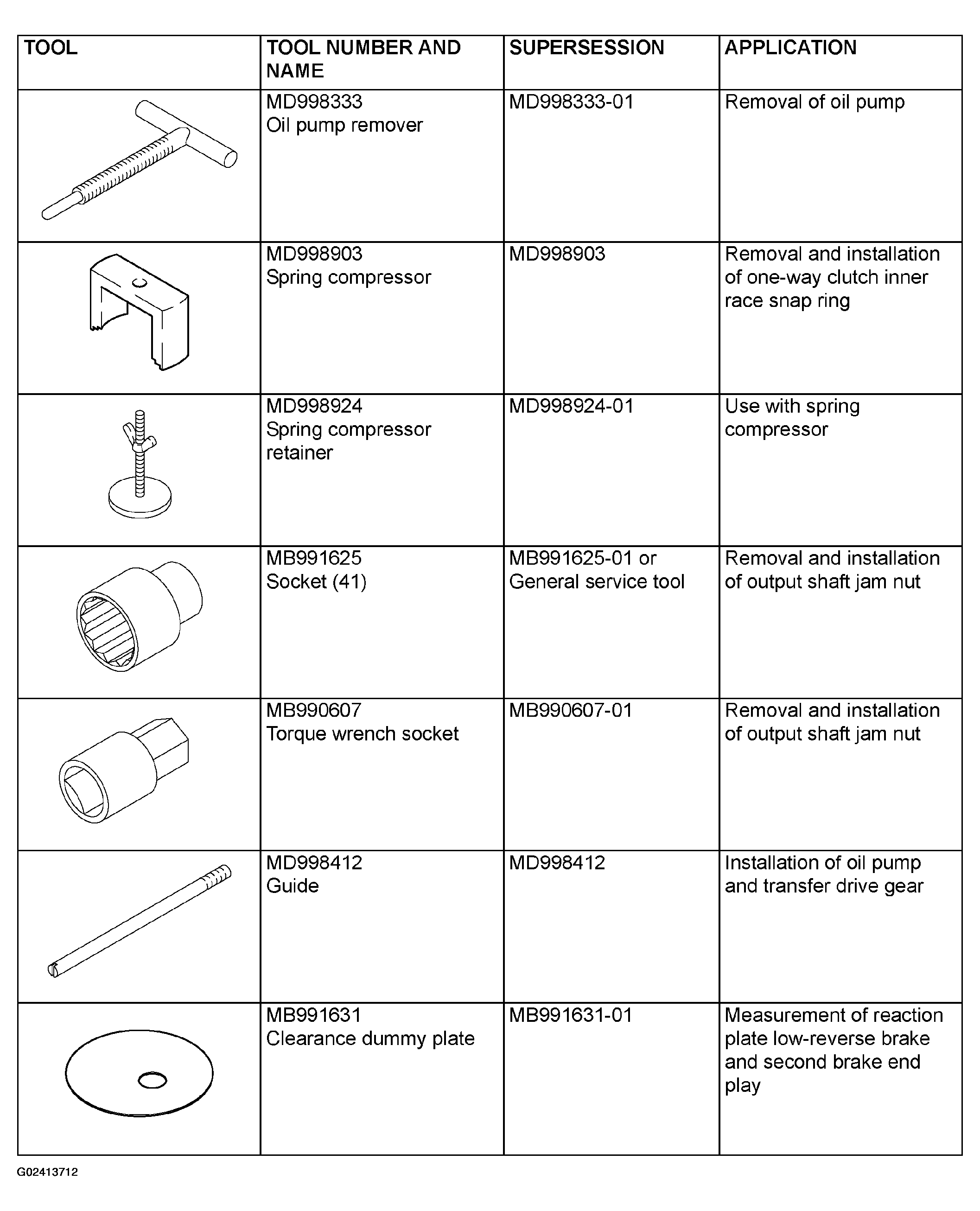

Fig 1: Special Tools Chart (1 Of 4)
G02413712Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

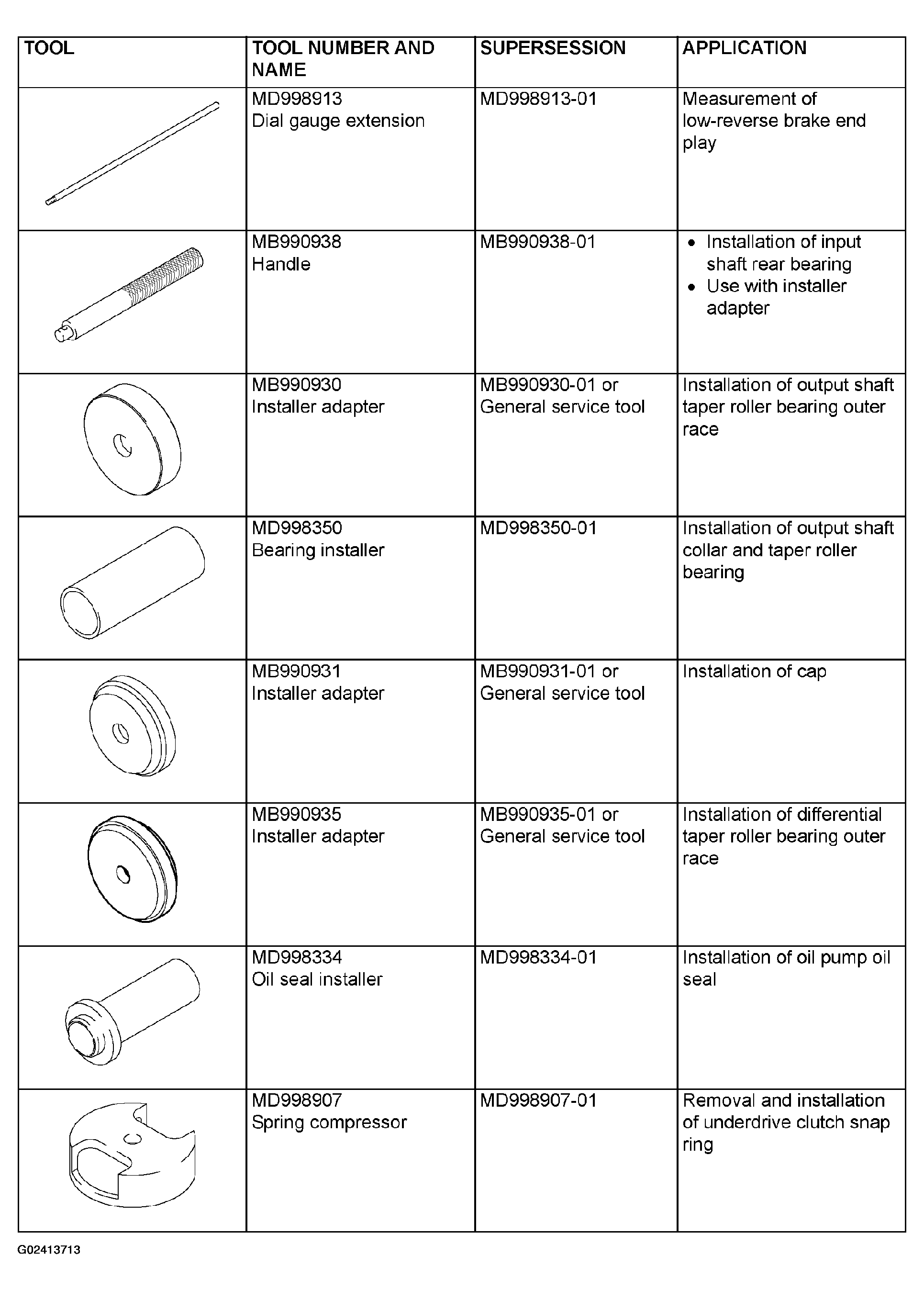

Fig 2: Special Tools Chart (2 Of 4)
G02413713Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

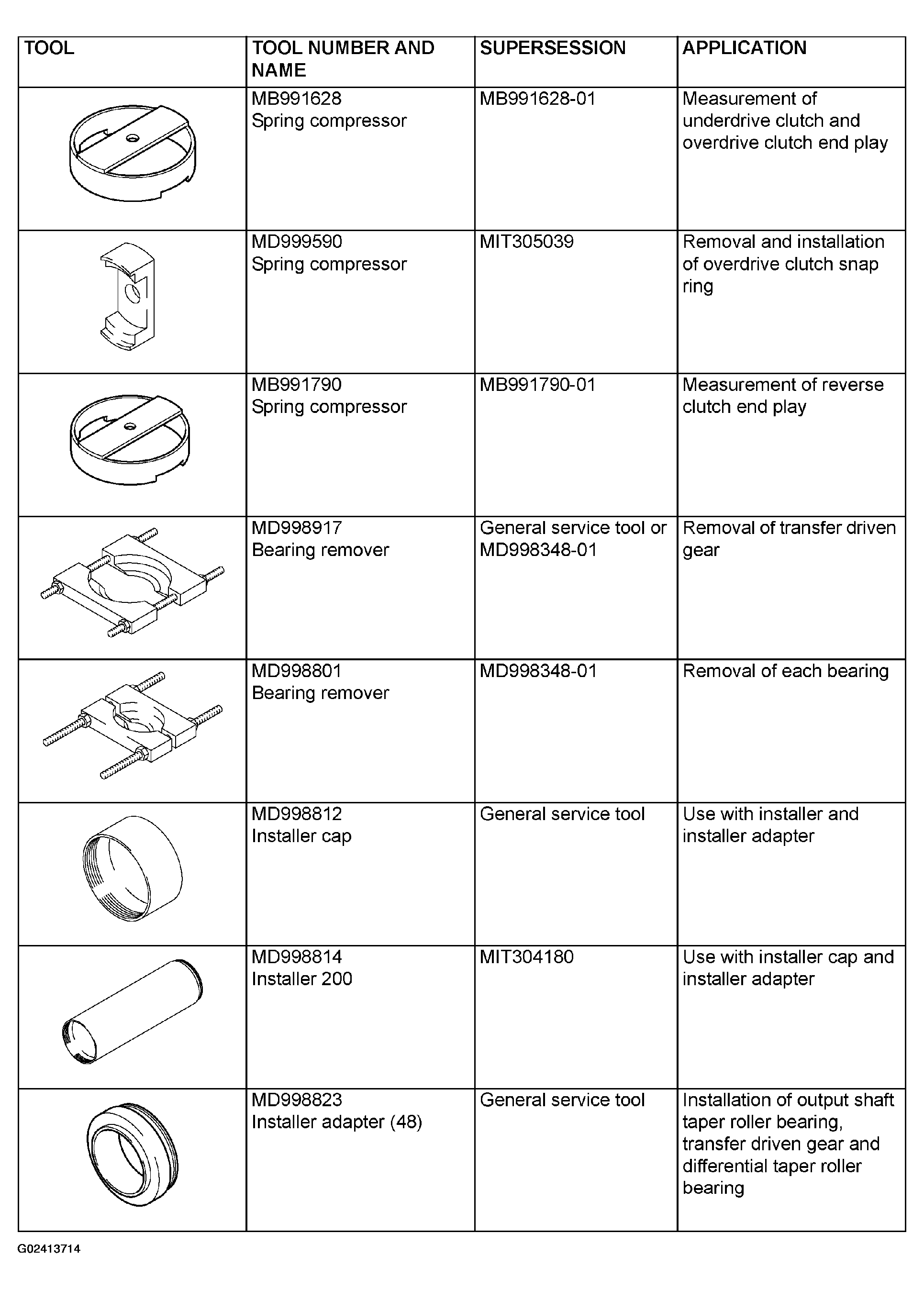

Fig 3: Special Tools Chart (3 Of 4)
G02413714Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

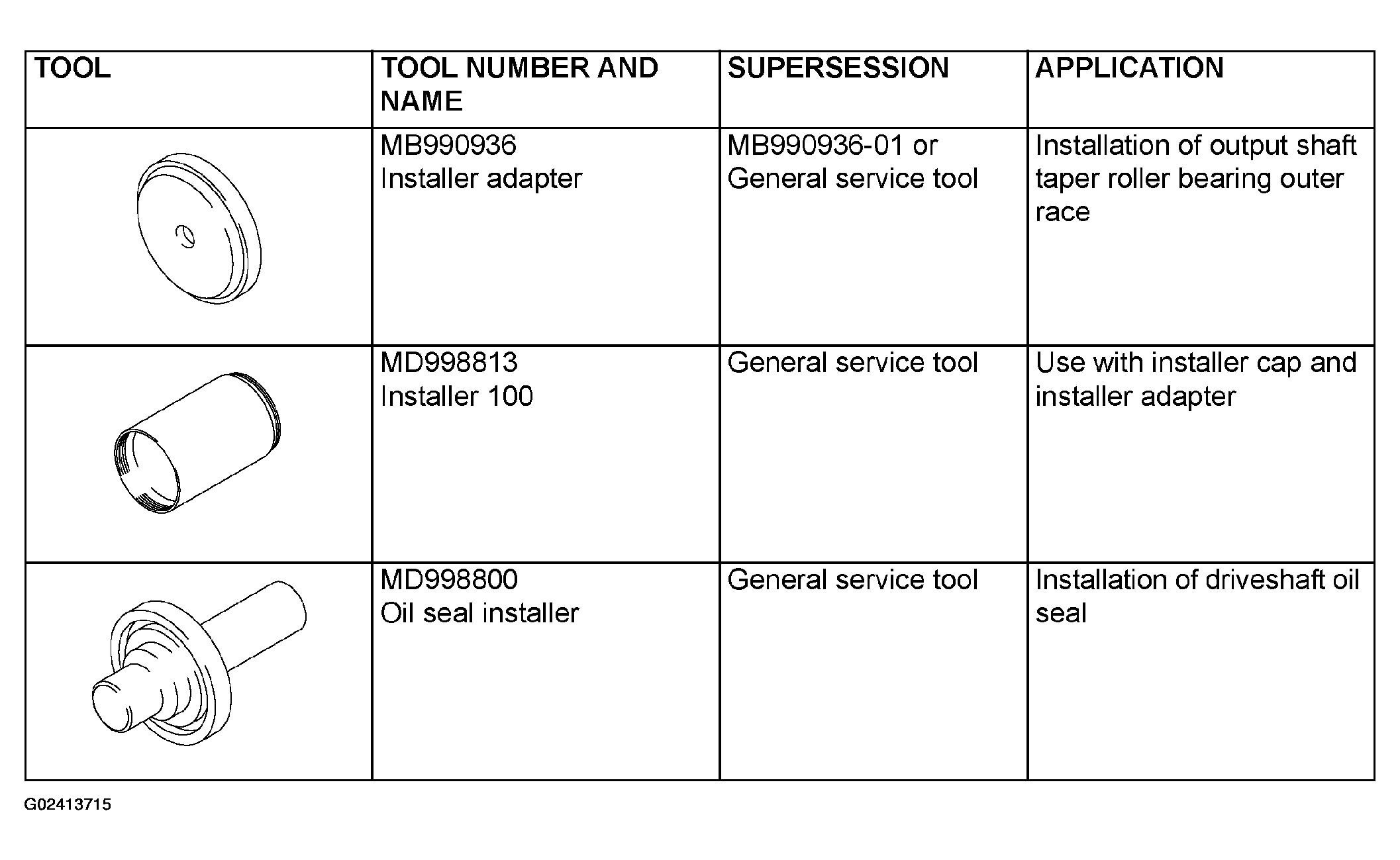

Fig 4: Special Tools Chart (4 Of 4)
G02413715Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
