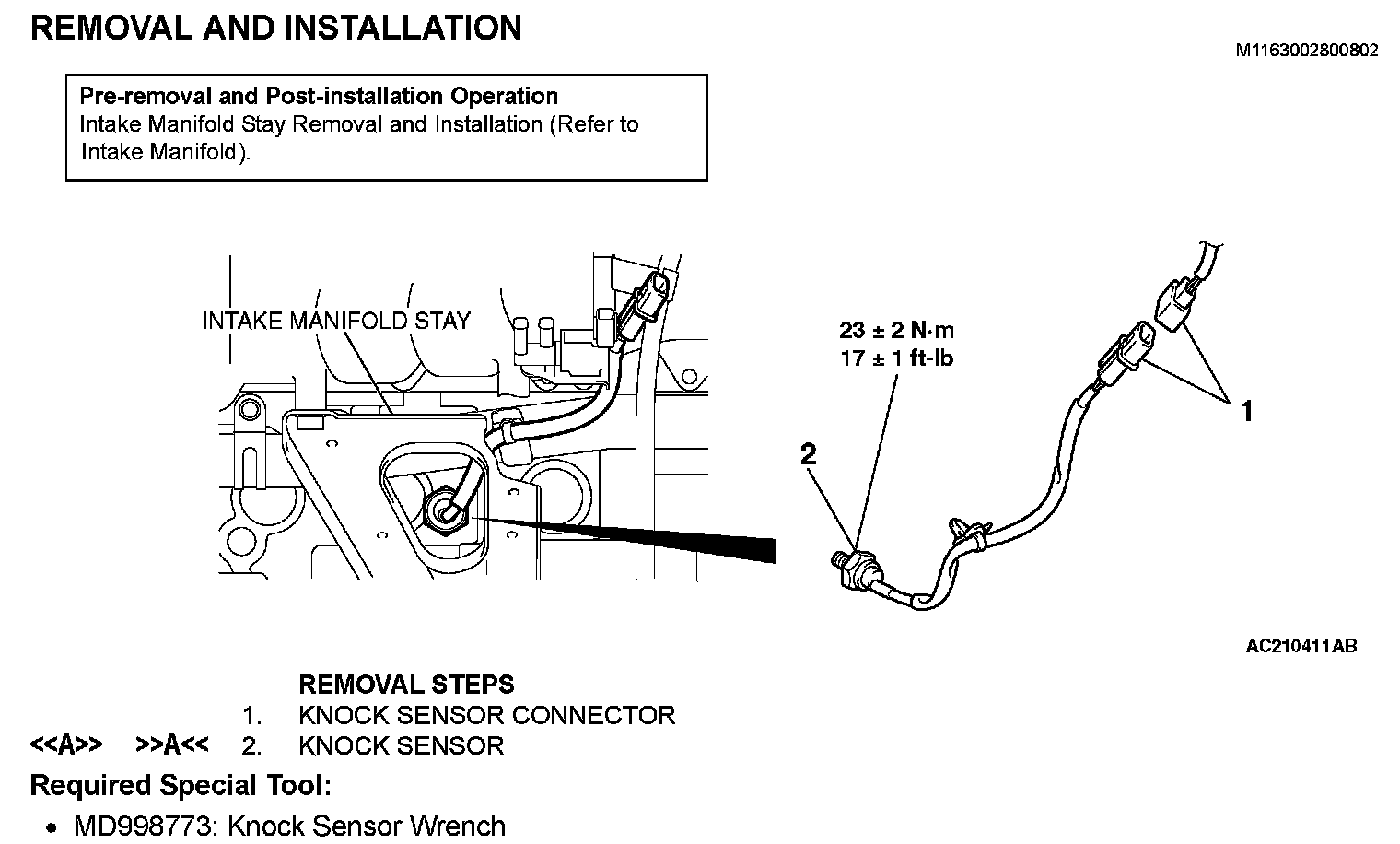

Removal and Installation

KNOCK SENSOR




REMOVAL AND INSTALLATION

REMOVAL SERVICE POINT




<> KNOCK SENSOR REMOVAL
Use special tool MD998773 to remove the knock sensor.

INSTALLATION SERVICE POINT




>>A<<KNOCK SENSOR INSTALLATION
Use special tool MD998773 to install the knock sensor.
