Symptom Index

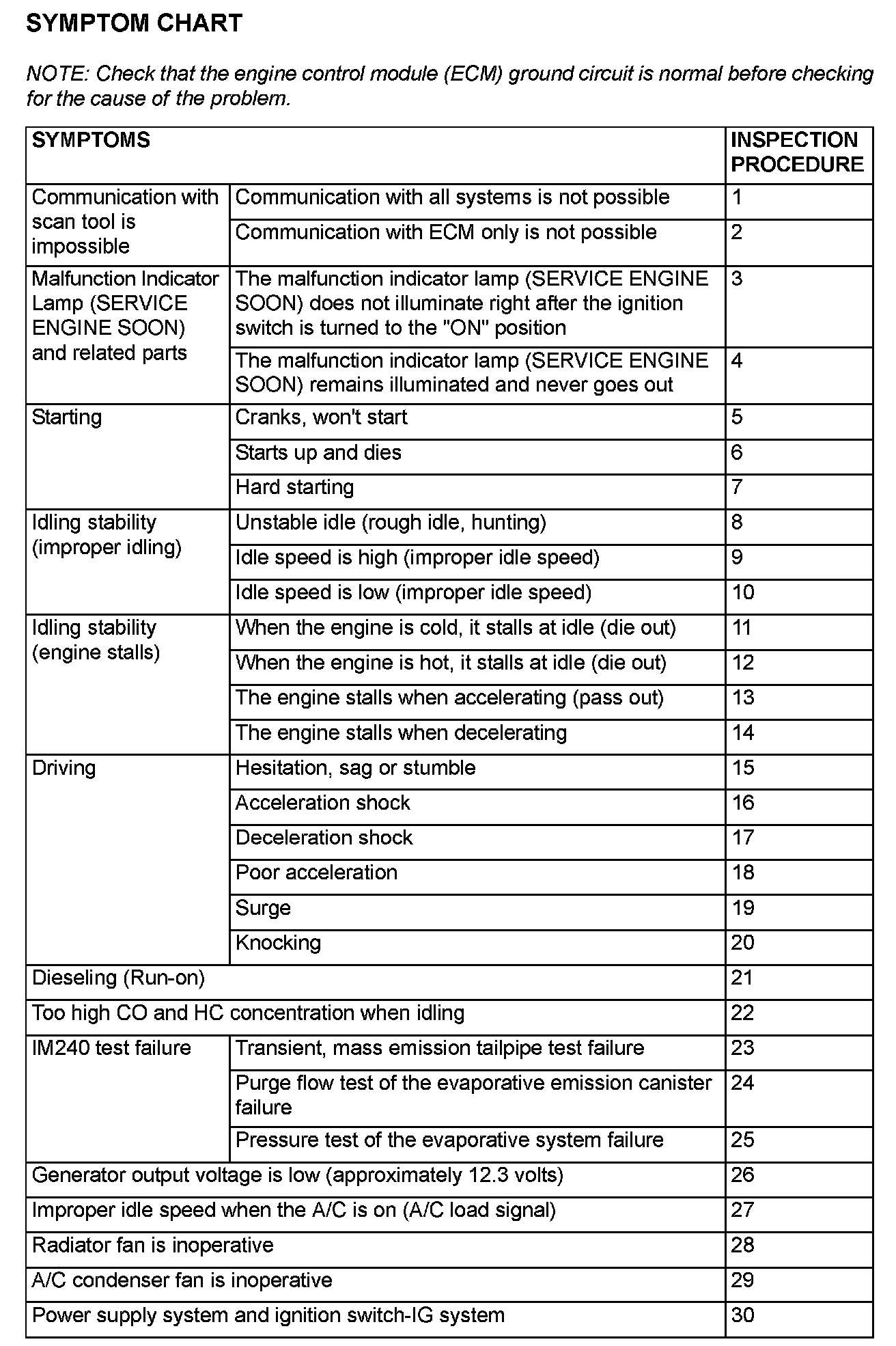

Inspection Chart For Trouble Symptoms Part 1:



Inspection Chart For Trouble Symptoms Part 2:

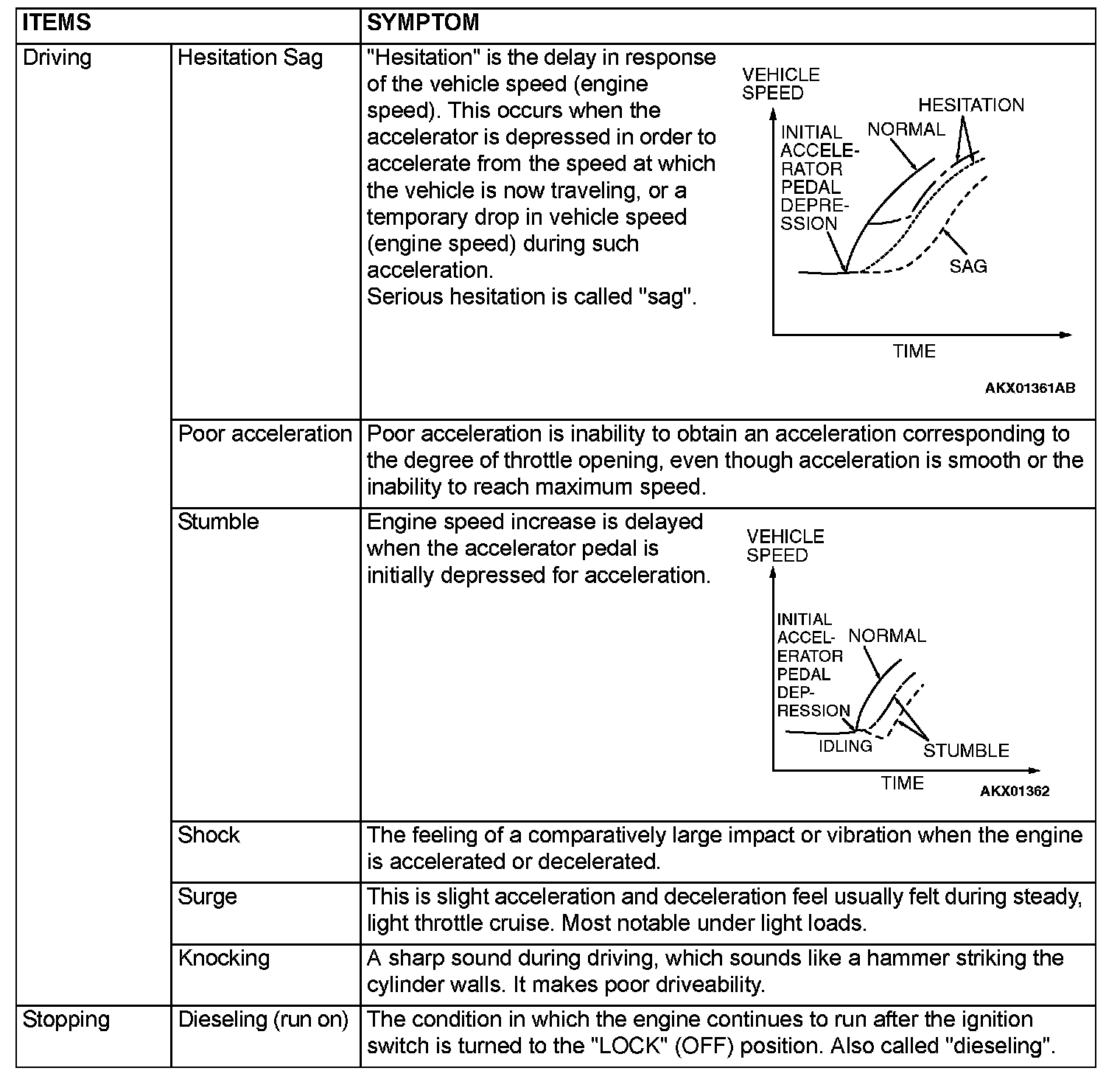

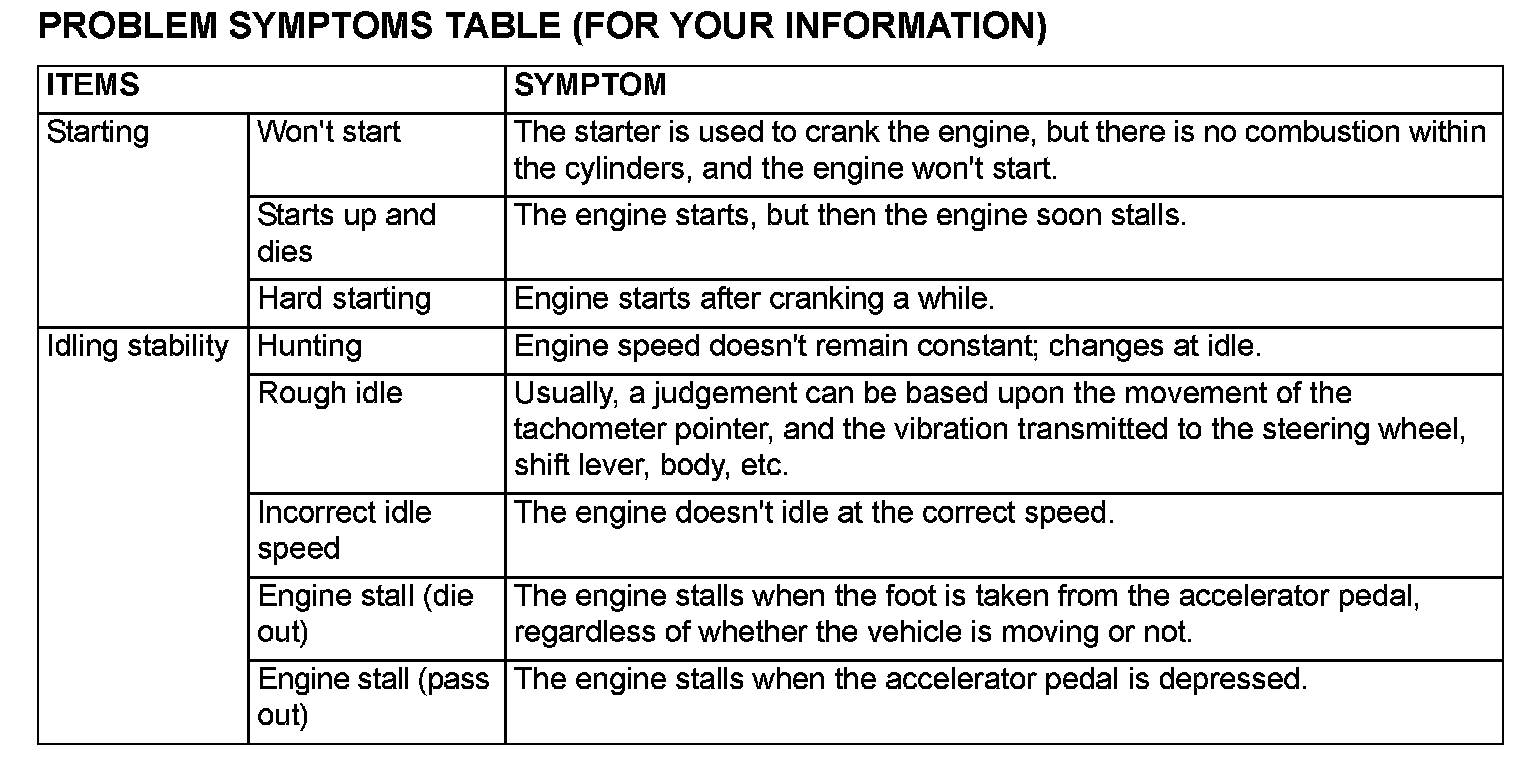

Problem Symptoms Table (For Your Information) Part 1:



Problem Symptoms Table (For Your Information) Part 2:
