Ignition Switch: Service and Repair

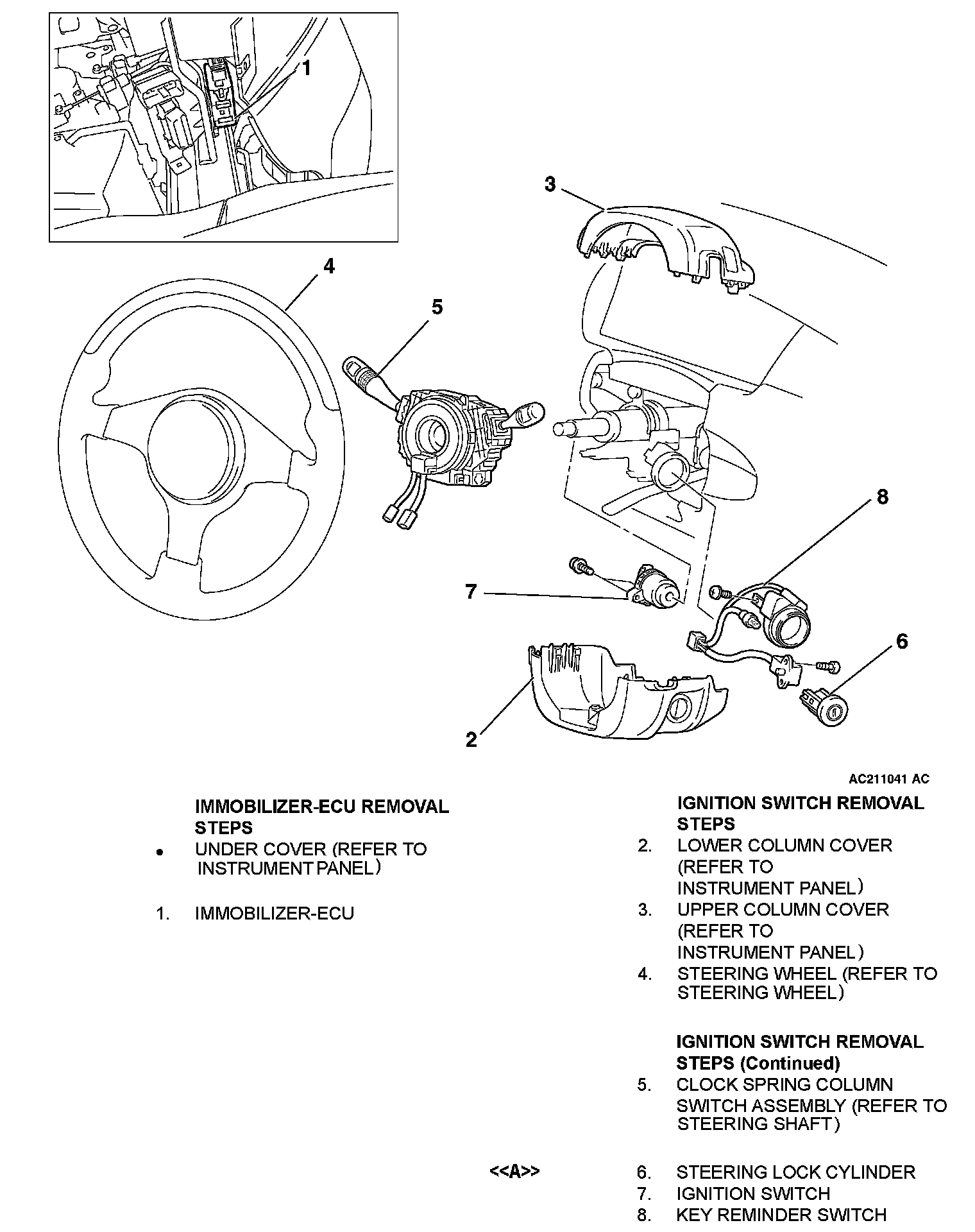

IGNITION SWITCH
REMOVAL AND INSTALLATION
WARNING:
- Before removing the steering wheel - driver's air bag module assembly, refer to Service Precautions and Air Bag Module and Clock Spring.
- When removing and installing the steering wheel, do not let it bump against the air bag module.
REMOVAL SERVICE POINT
<> STEERING LOCK CYLINDER REMOVAL
1. Insert the key into steering lock cylinder to turn the ignition key to the "ACC" position.
2. Insert the locking pin with a small cross-tipped screwdriver, etc., and remove the steering lock cylinder.
