Defogger Relay Check

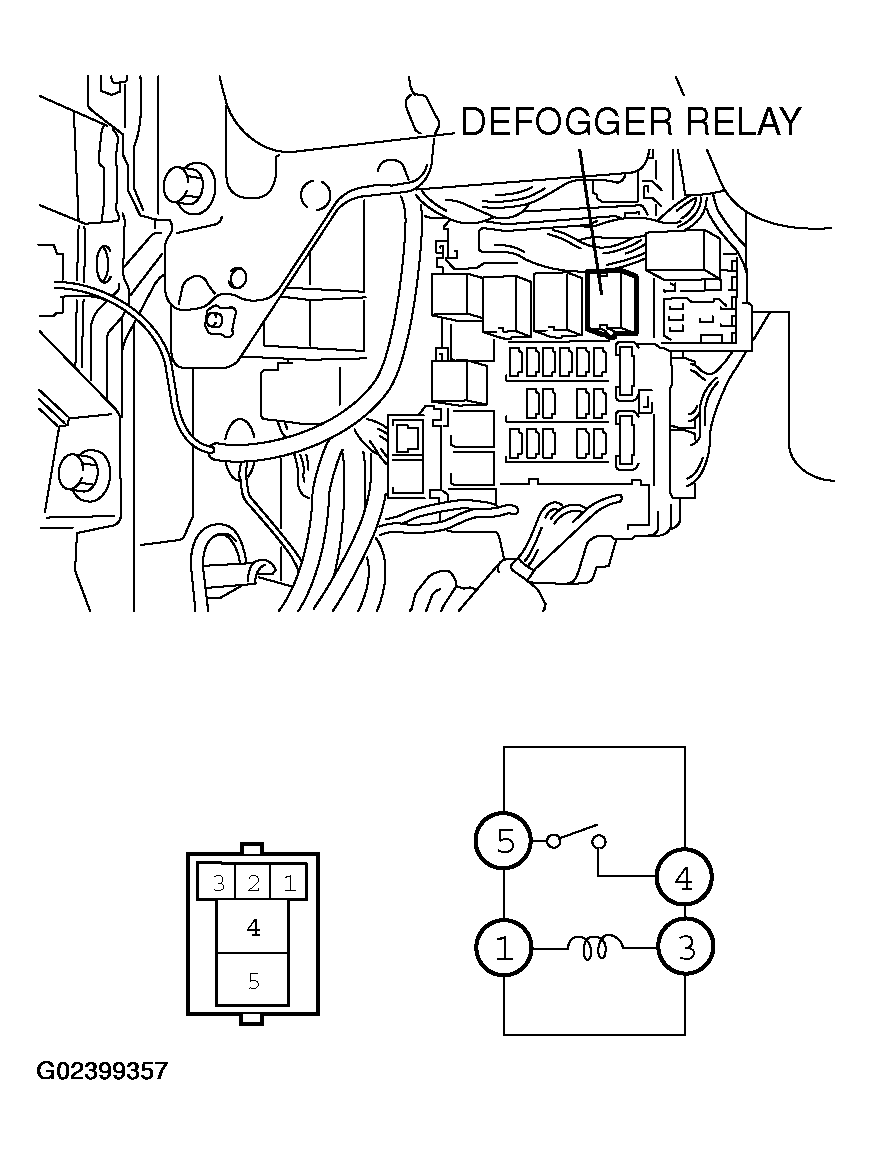

Fig 1: Checking Defogger Relay
G02399356Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

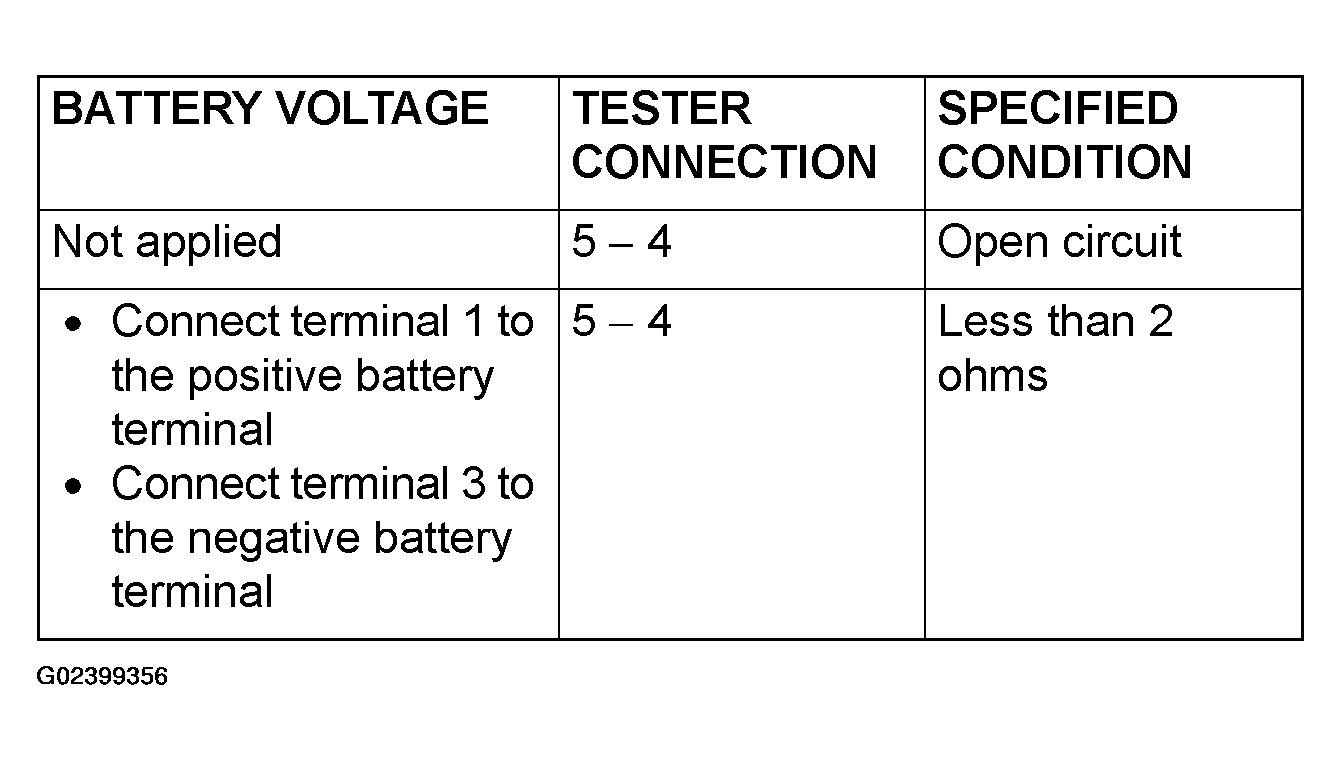

Fig 2: Tester Connection Specified Condition Chart
G02399357Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
