Simplified Wiring System (SWS) - Evolution
>>
On-Vehicle Service
>>
Adjustment Procedures Of SWS Function < Vehicles With Keyless Entry System >
>>
Configuration Of Functions
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Configuration Of Functions

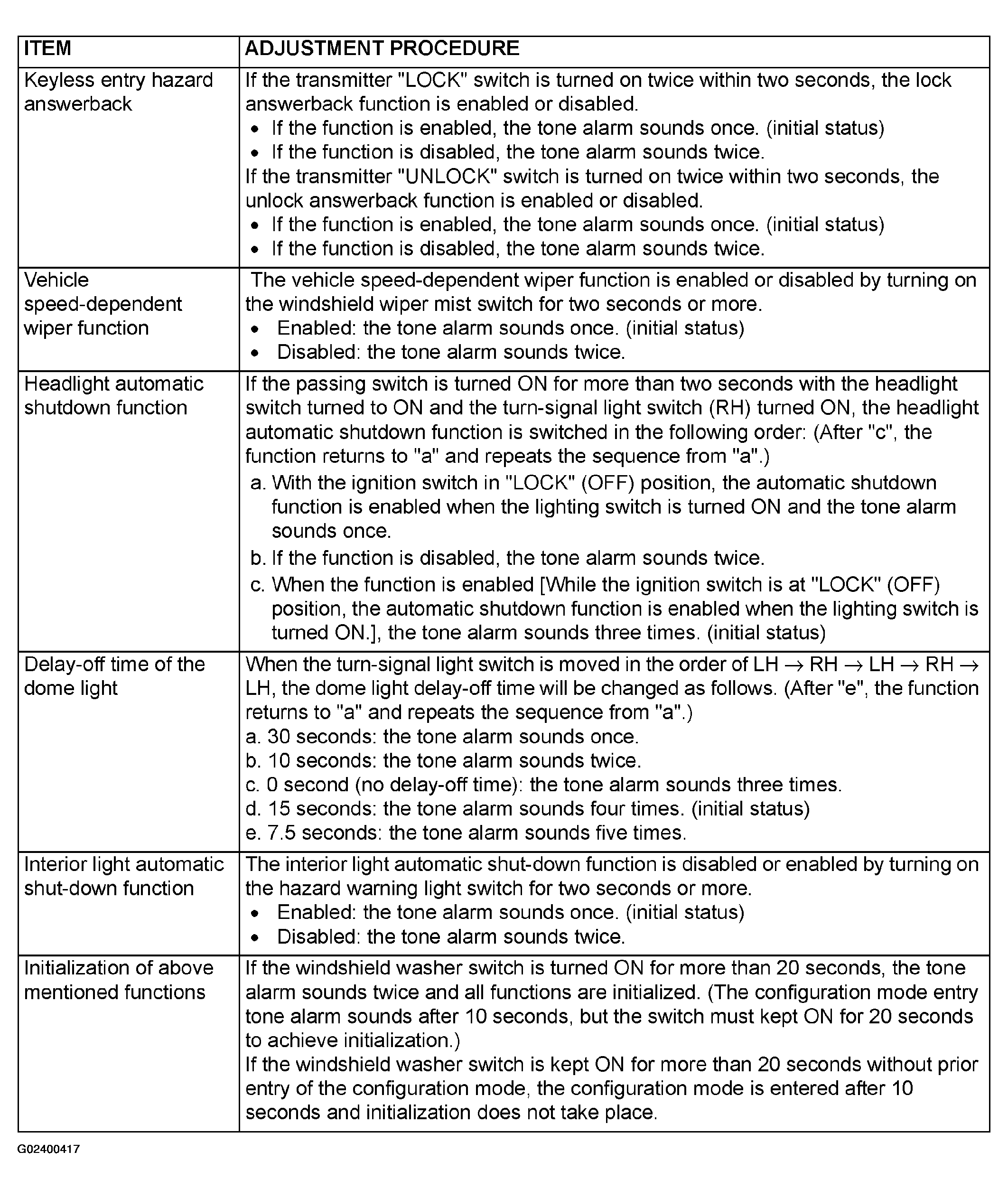

Fig 1: Function Configuration Chart
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
