Differential Carrier Assembly: Disassembly: Notes

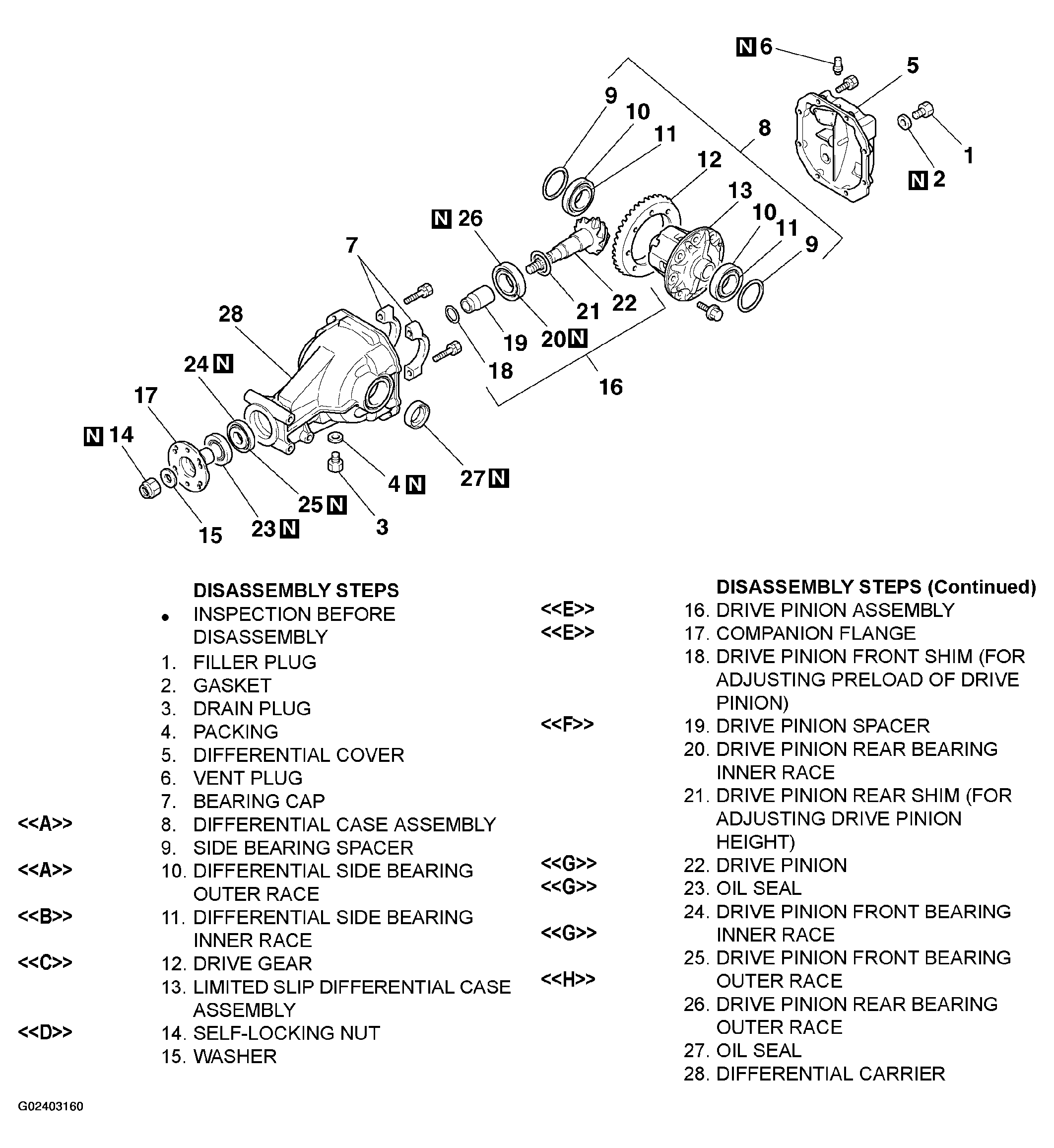

Fig 1: Disassembling Differential Carrier Assembly

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:

• MB990909: Working Base
• MB991116: Working Base Adapter
• MB990939: Brass Bar
• MB990810: Side Bearing Puller
• mb990811: Side Bearing Cup
• MB990850: End Yoke Holder
• MD998801: Remover
