Special Tools: Notes

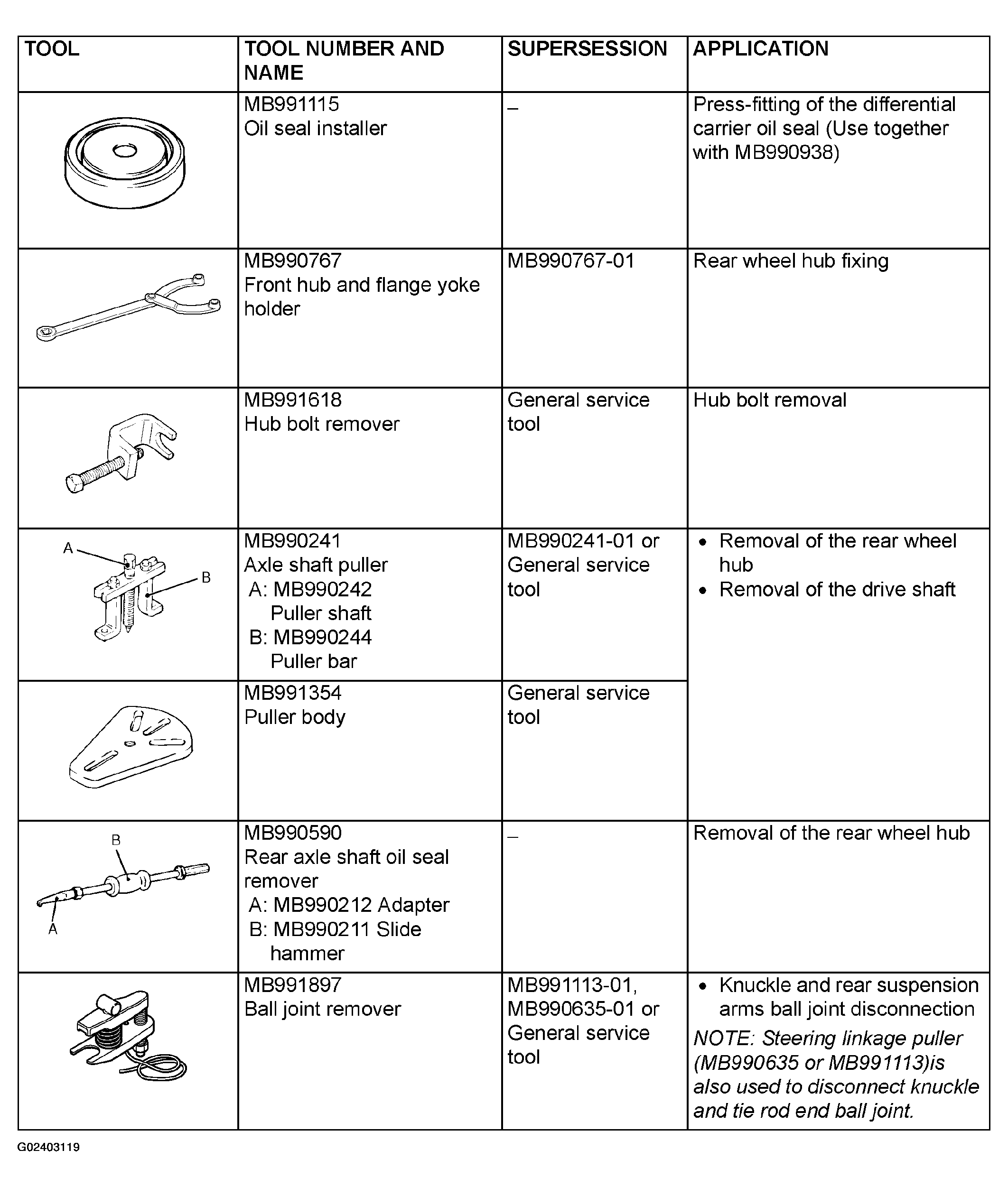

Fig 1: Special Tools Chart (1 Of 4)
G02403119Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

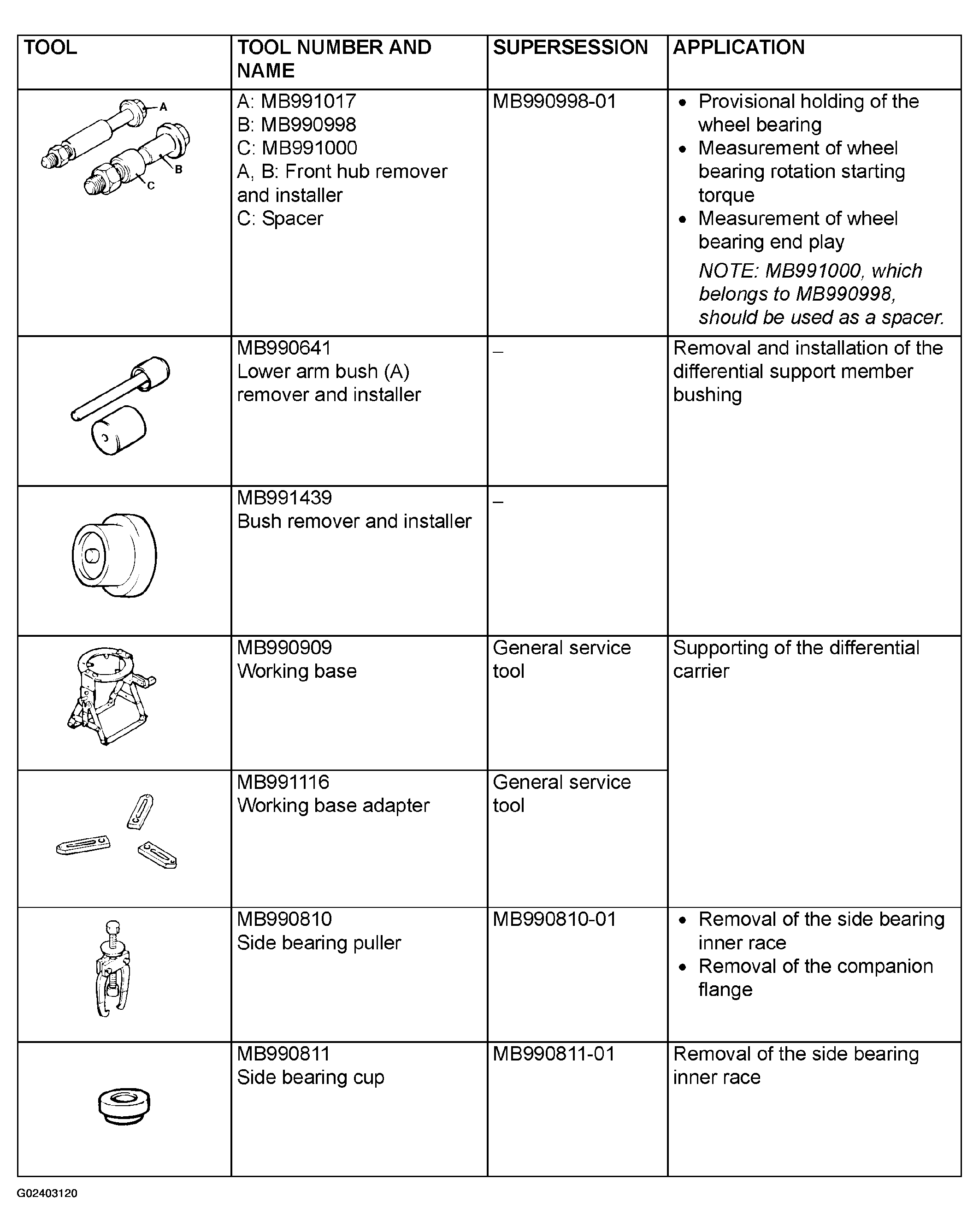

Fig 2: Special Tools Chart (2 Of 4)
G02403120Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

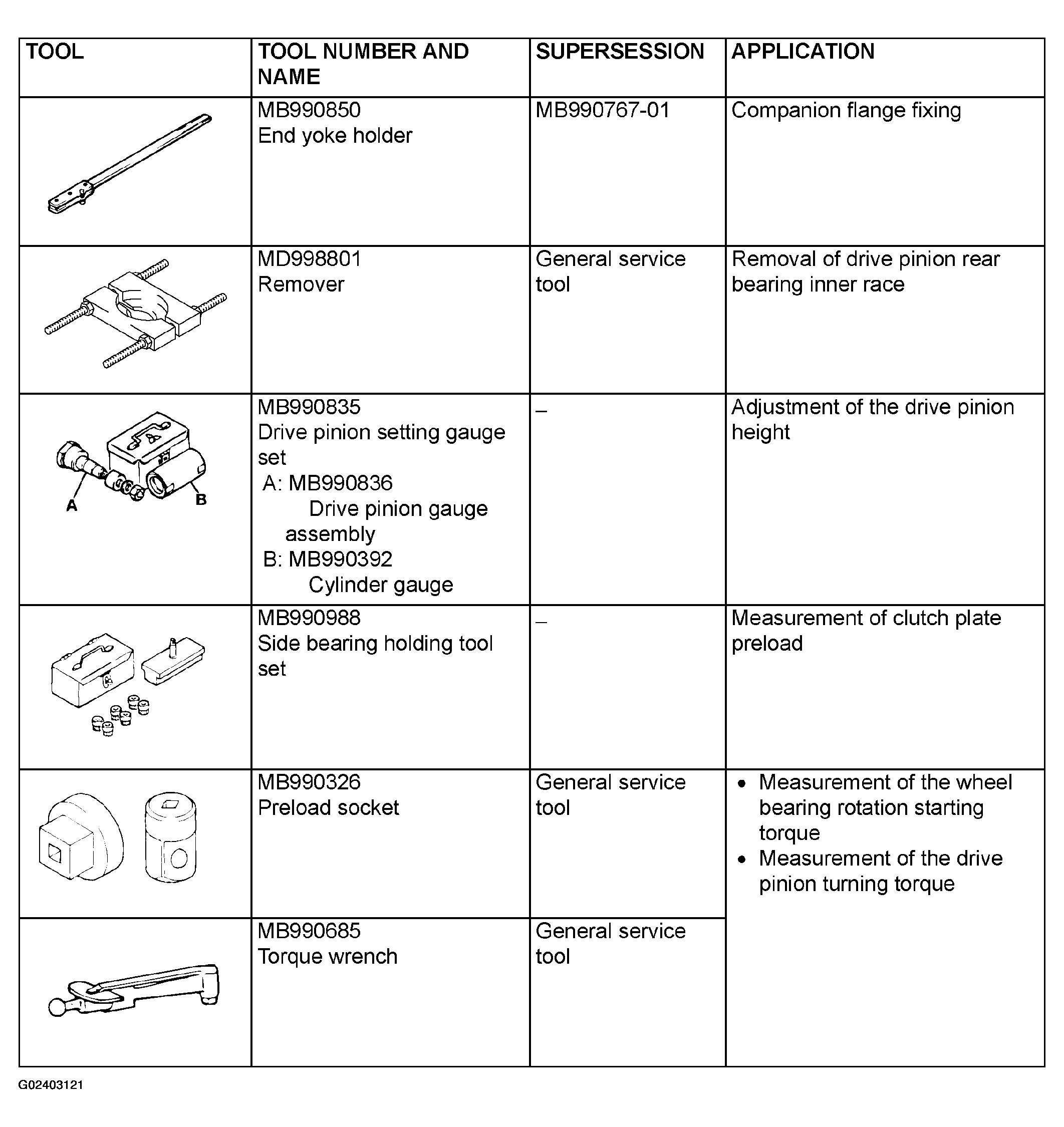

Fig 3: Special Tools Chart (3 Of 4)
G02403121Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

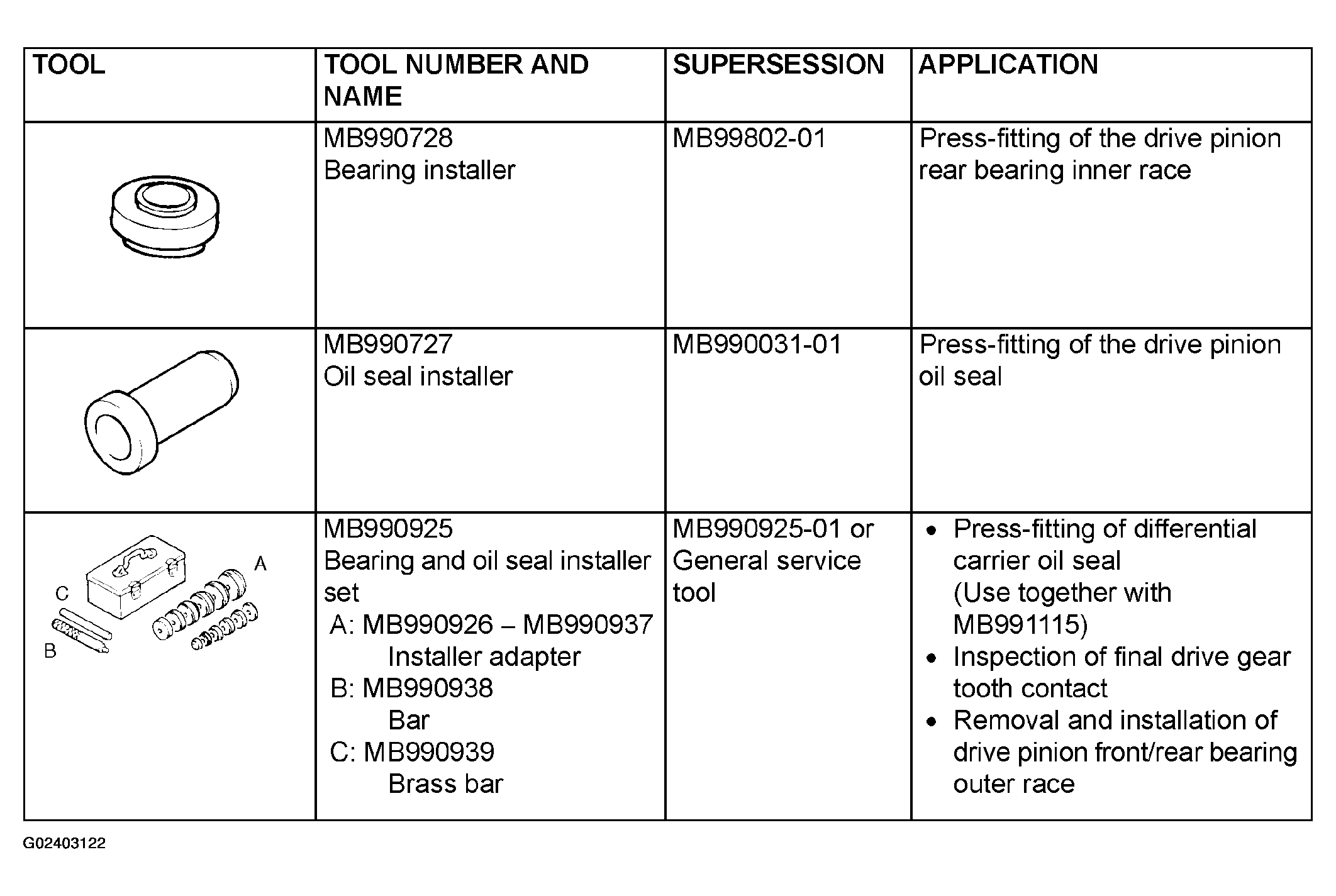

Fig 4: Special Tools Chart (4 Of 4)
G02403122Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
