Special Tools

WARNING: This page is about a different variant/trim than selected.

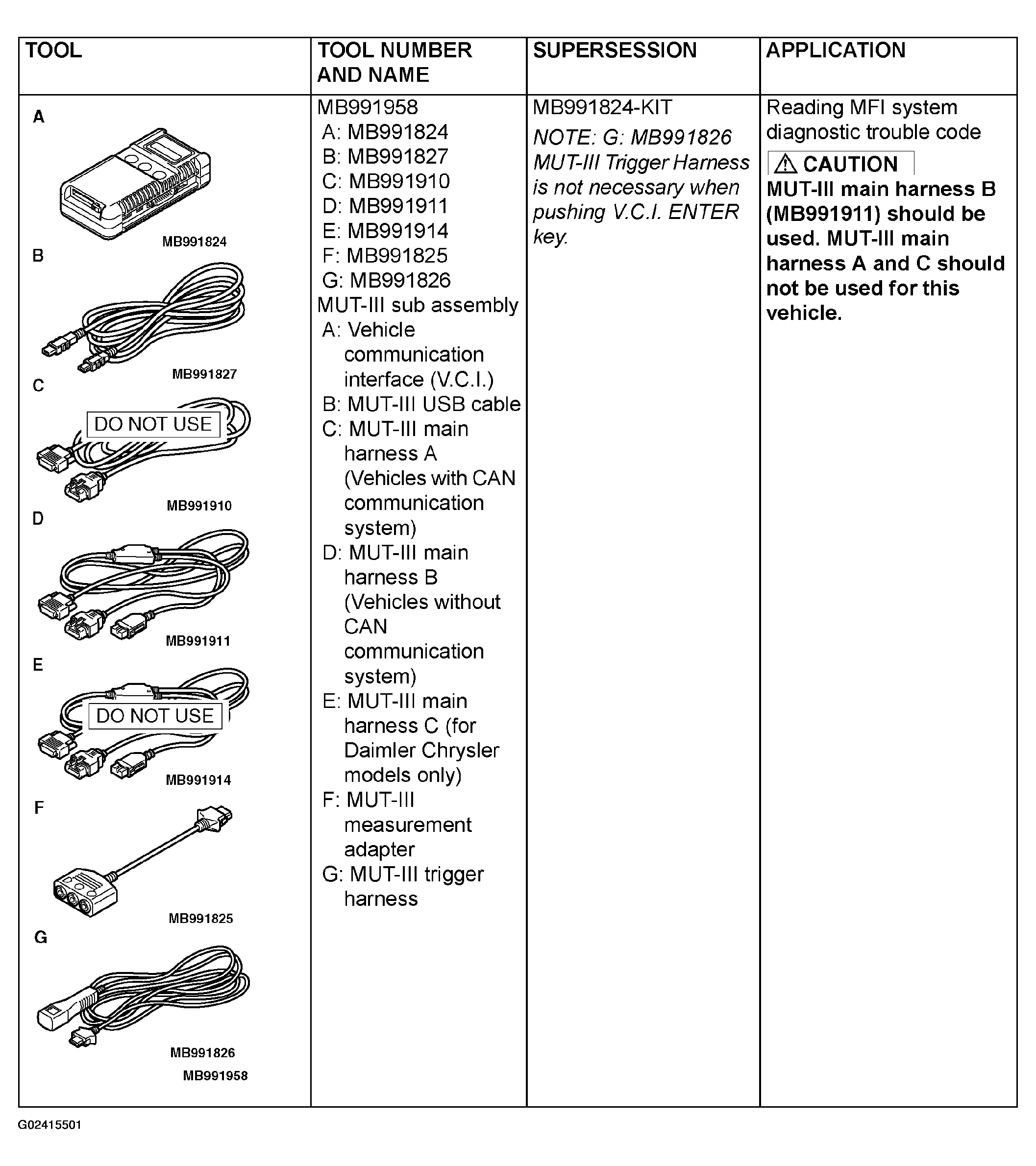

Fig 1: Identifying Special Tools Chart (1 Of 2)
G02415501Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

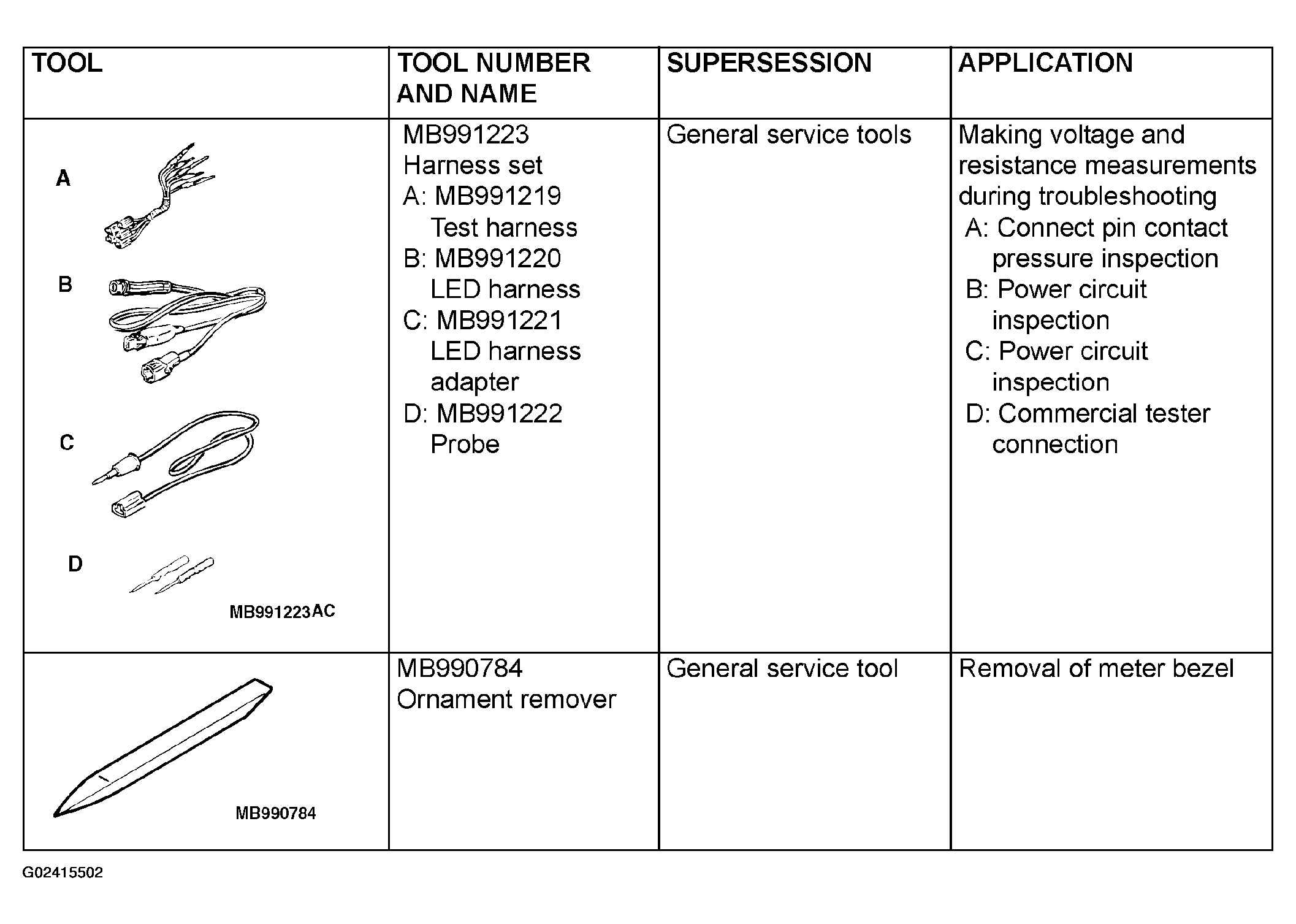

Fig 2: Identifying Special Tools Chart (2 Of 2)
G02415502Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
