Hazard Light

WARNING: This page is about a different variant/trim than selected.

The hazard lights output (flashing) is turned ON when the hazard switch is turned OFF to ON. When the switch is turned ON again, the output is turned OFF.

NOTE: The hazard light switch is a push-return type toggle switch.

Fig 1: Identifying Blinking Pattern Of Hazard Light

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

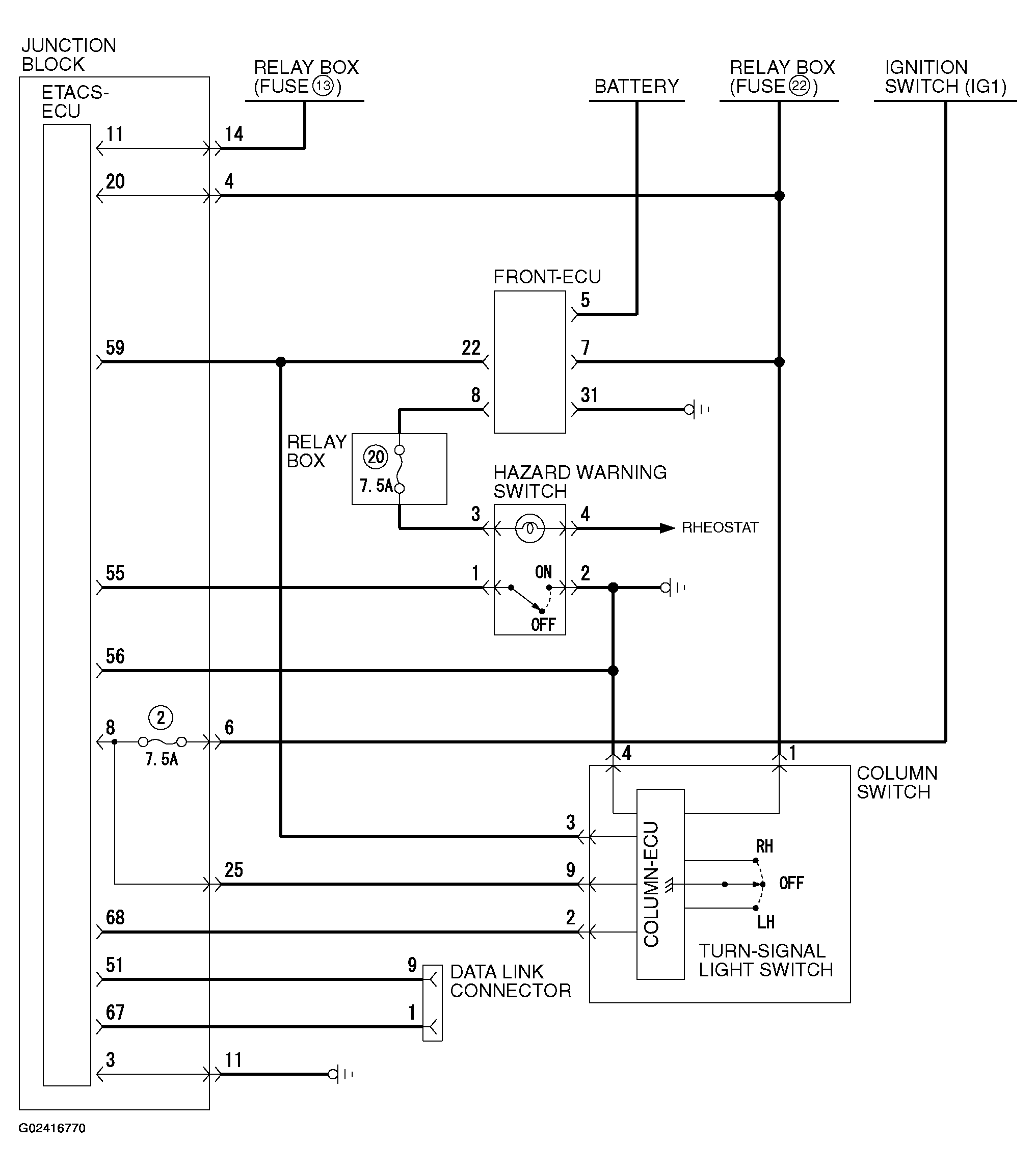

Fig 2: Turn Signal Light And Hazard Light Circuit Diagram (1 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

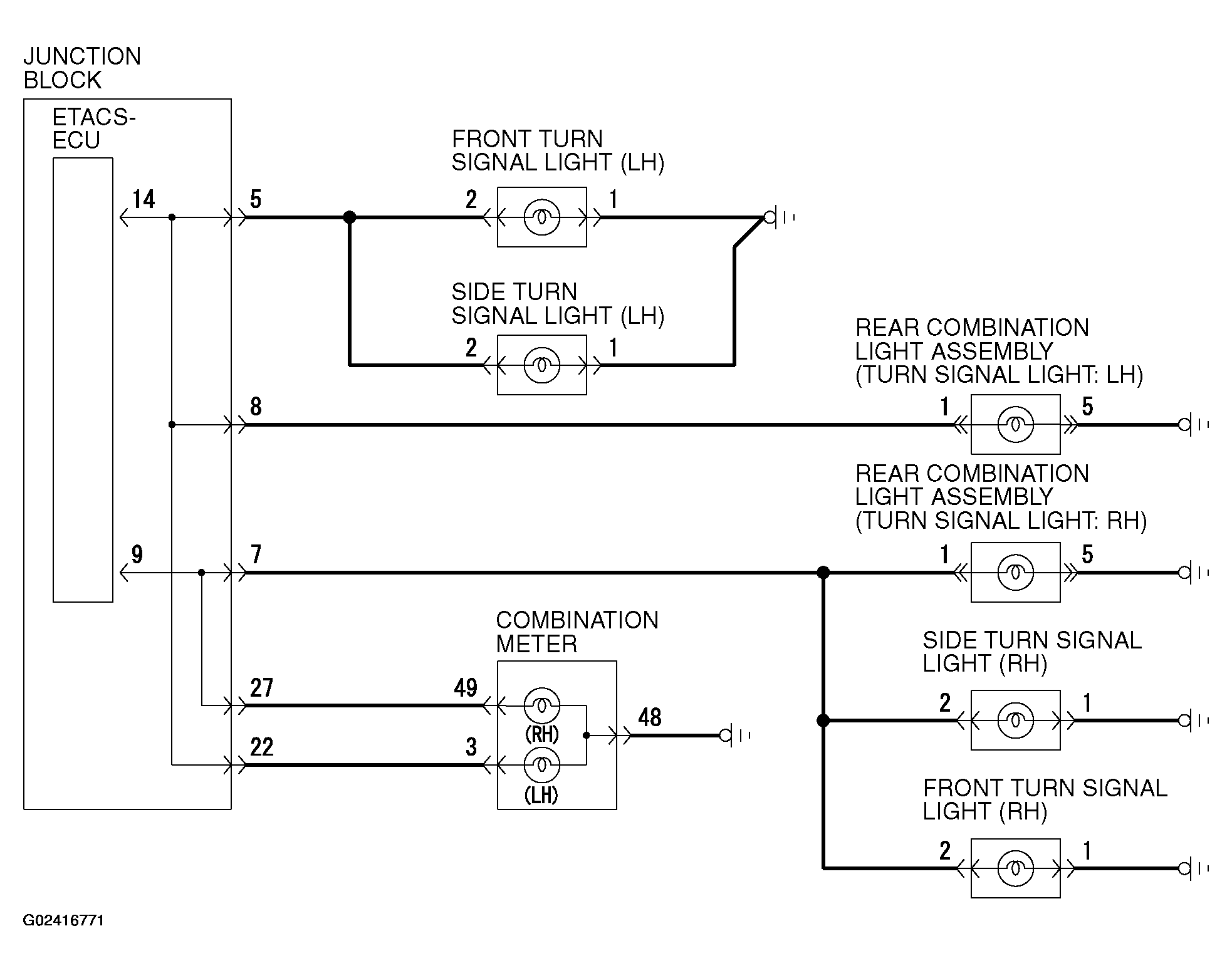

Fig 3: Turn Signal Light And Hazard Light Circuit Diagram (2 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
