General Circuit Diagram For The Keyless Entry System

WARNING: This page is about a different variant/trim than selected.

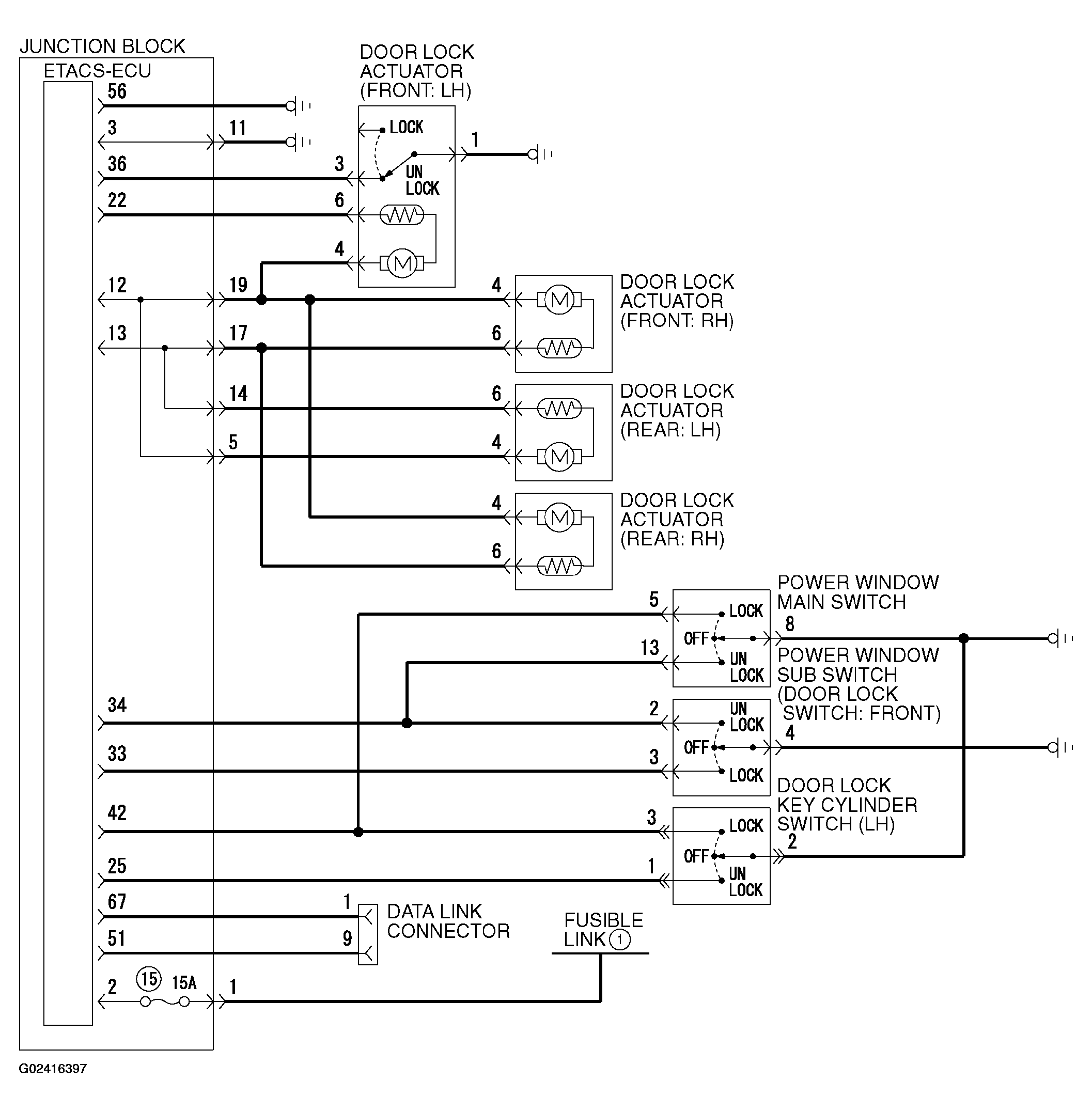

Fig 1: Keyless Entry System Circuit Diagram (1 Of 2)
G02416397Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

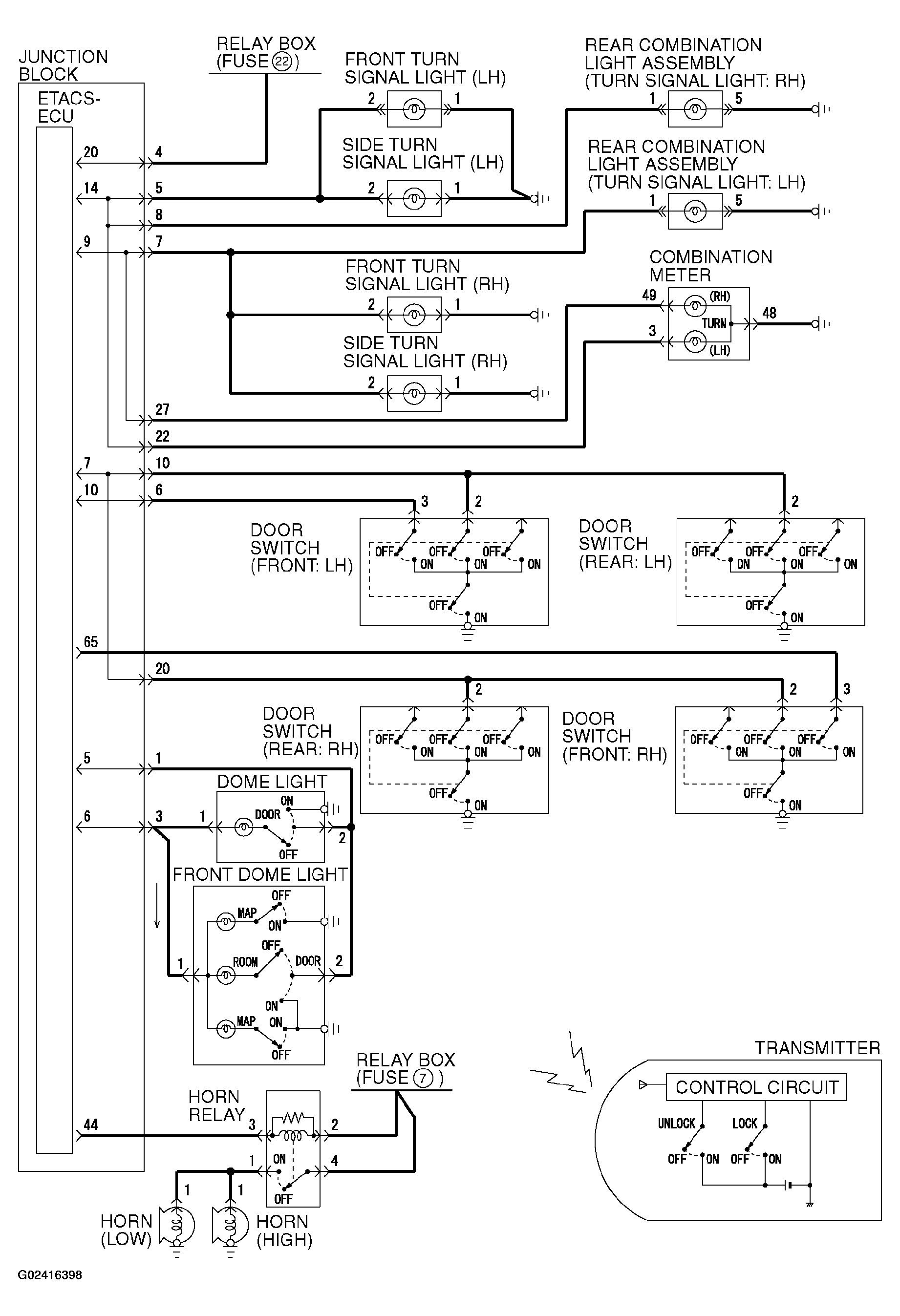

Fig 2: Keyless Entry System Circuit Diagram (2 Of 2)
G02416398Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
