Power Window Timer Function

When the ignition switch is turned to the "ON" position, the power window relay is turned ON. After the ignition switch is turned OFF, the system continues to turn ON the power window relay for about 30 seconds and to enable the opening and closing of the door window by the power window switch. When the driver's or front passenger's door is opened while the timer is in operation, the power window relay will be turned OFF.

Fig 1: Identifying Blinking Pattern (Power Window Timer Function)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

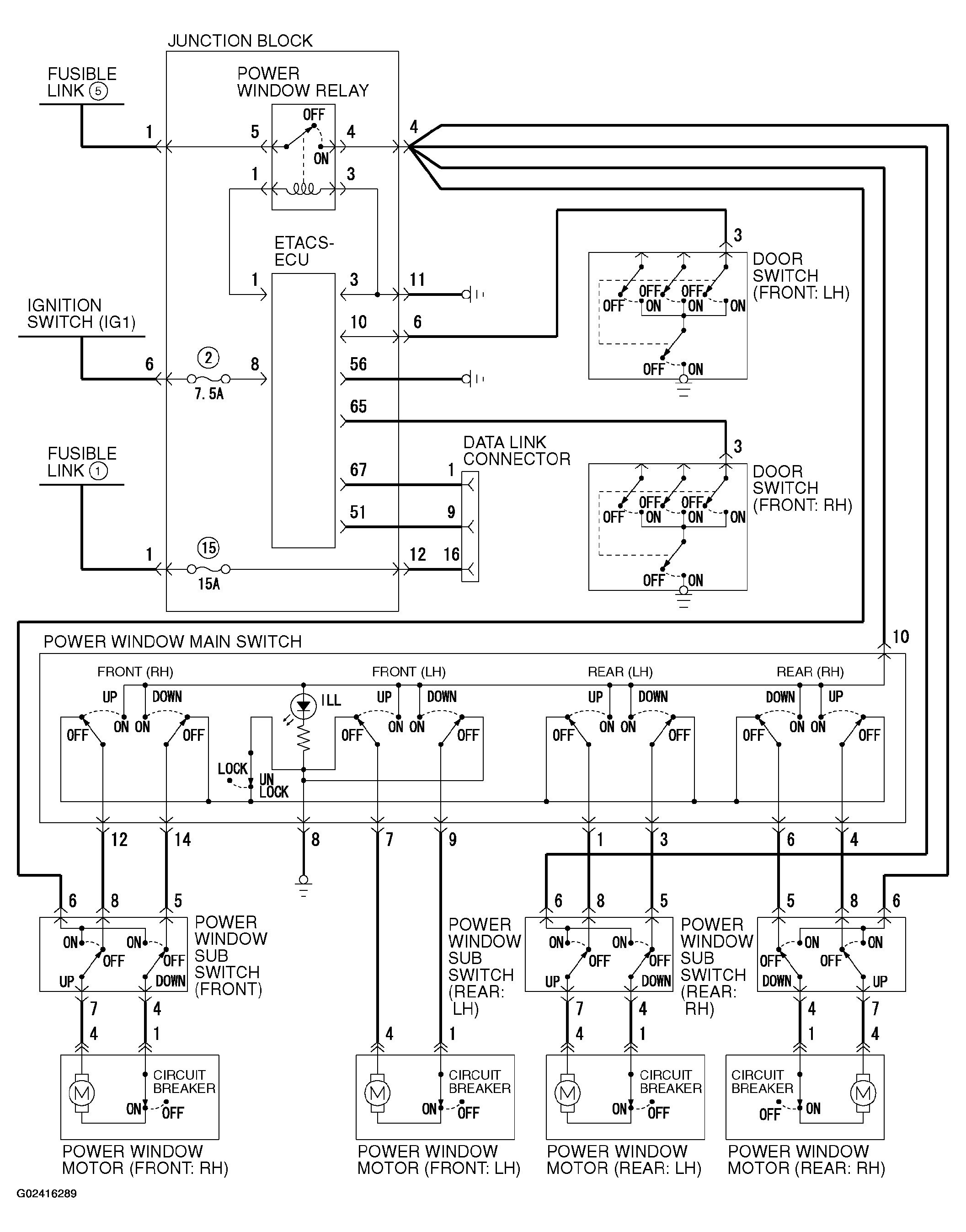

Fig 2: Power Windows Circuit Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
