Special Tools

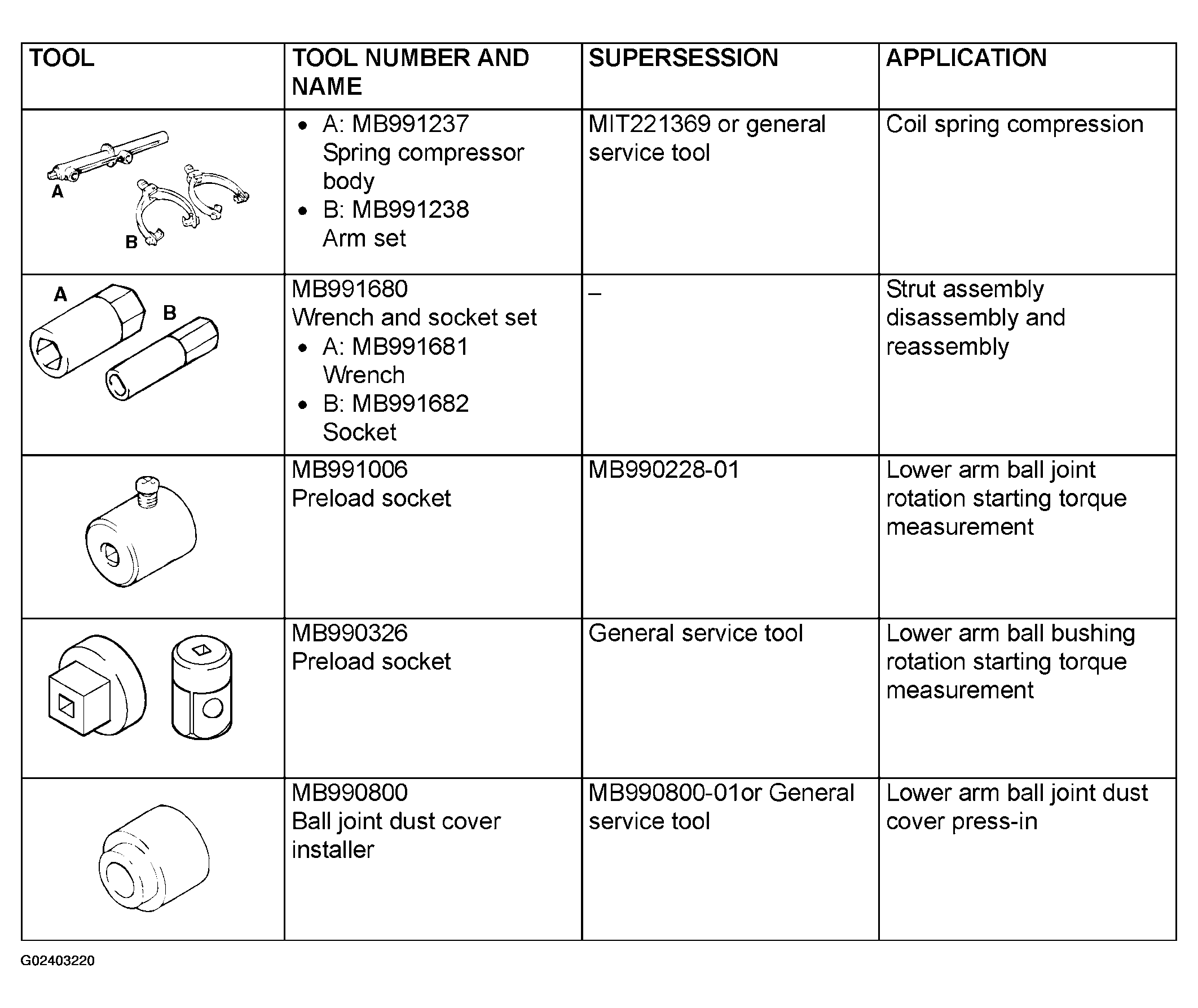

Fig 1: Special Tools Specification (1 Of 2)
G02403220Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

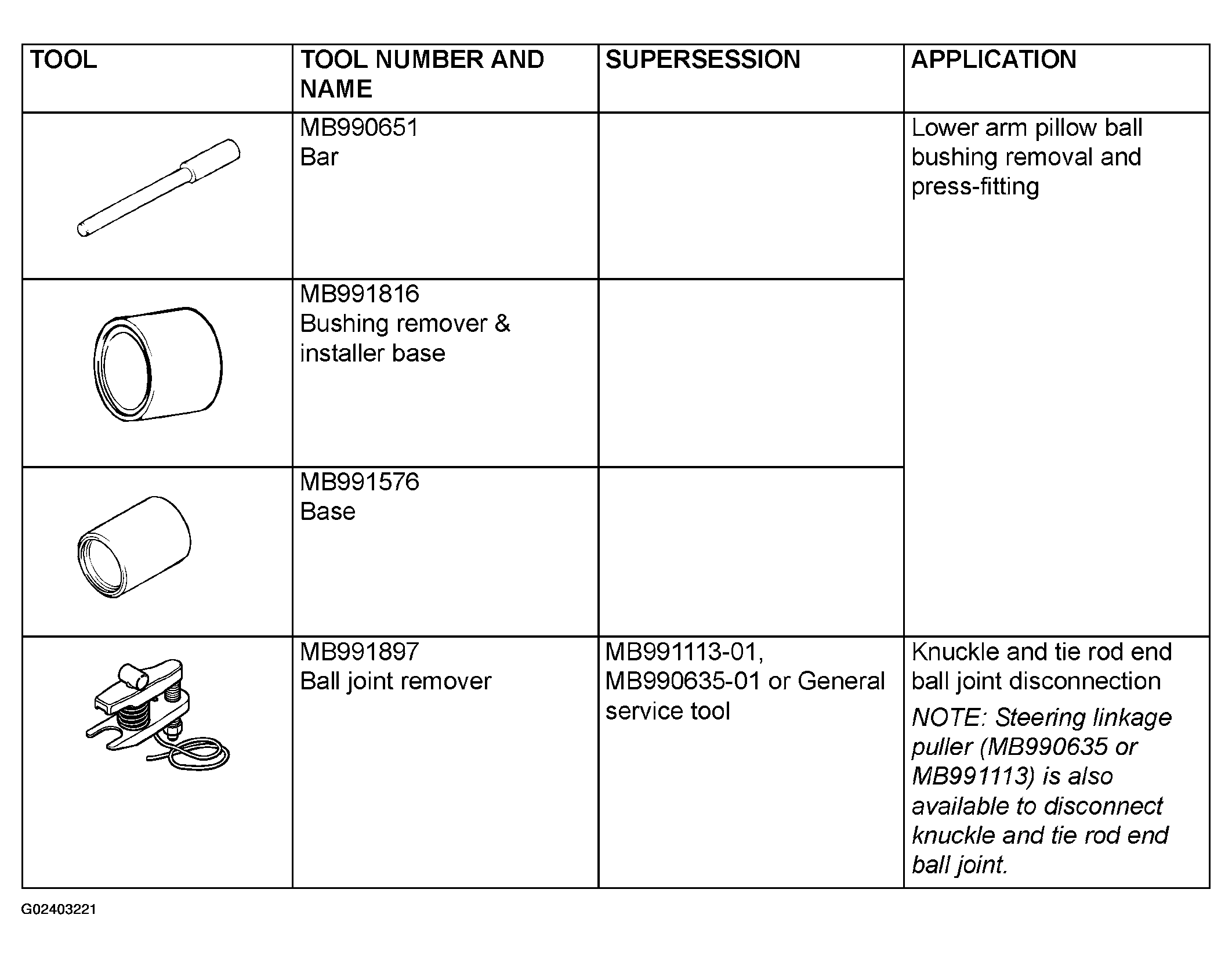

Fig 2: Special Tools Specification (2 Of 2)
G02403221Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
