Disassembly And Assembly: Notes

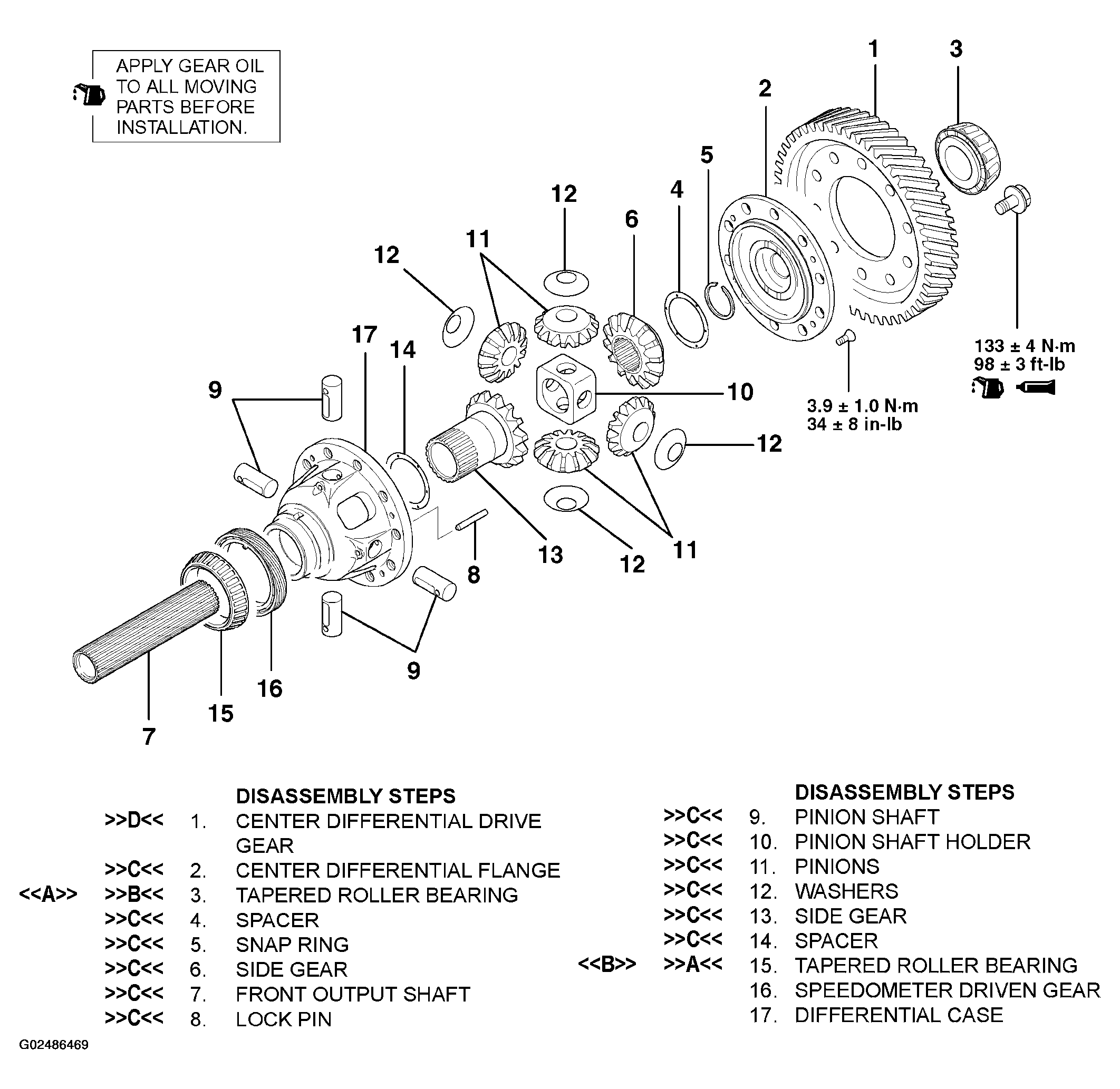

Fig 1: Disassembling/Assembling Center Differential
G02486469Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:
