Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location |
|---|---|

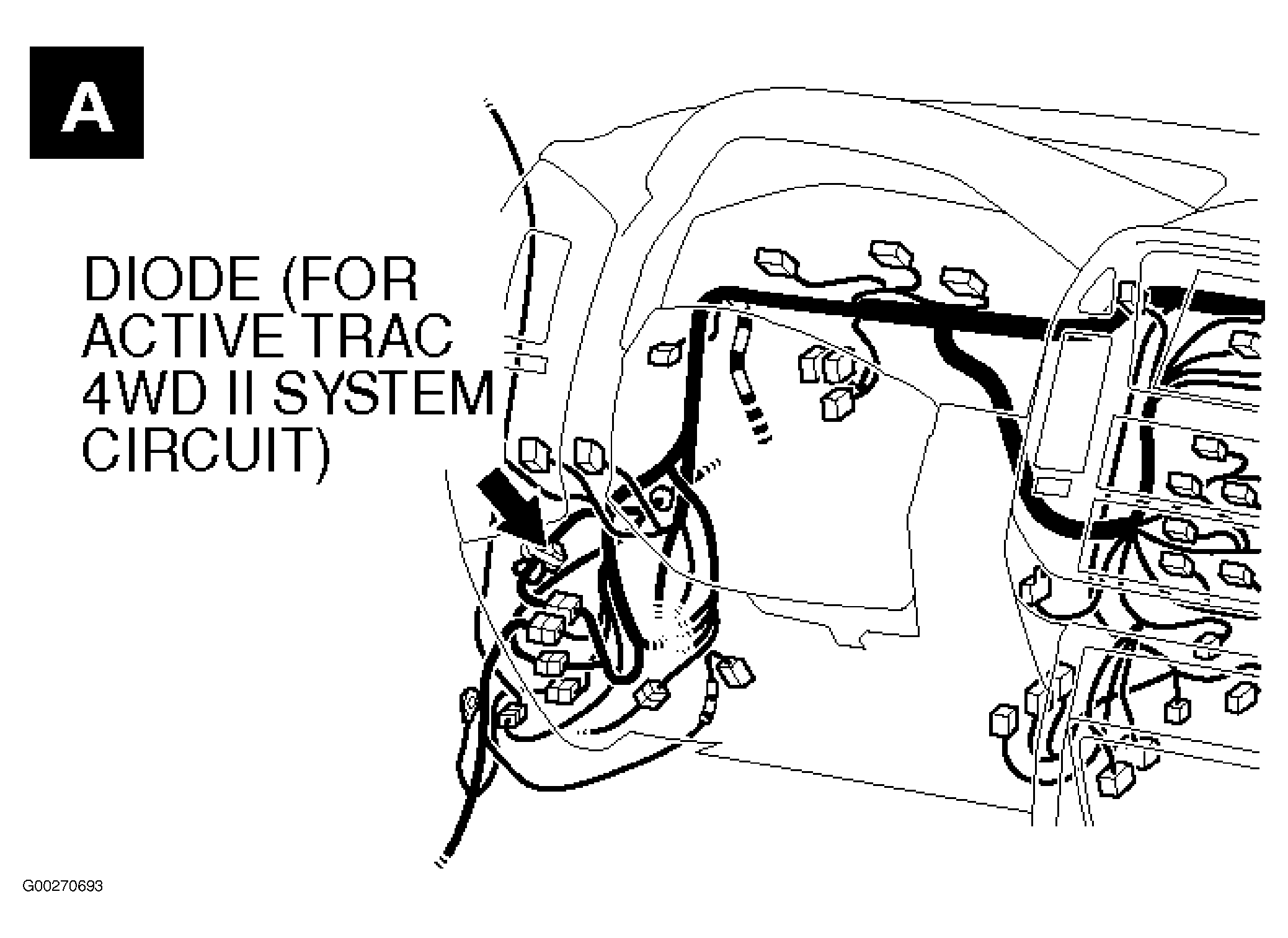

| Diode (Active Trac 4WD) | Behind lower left side of dash. See Figure . |

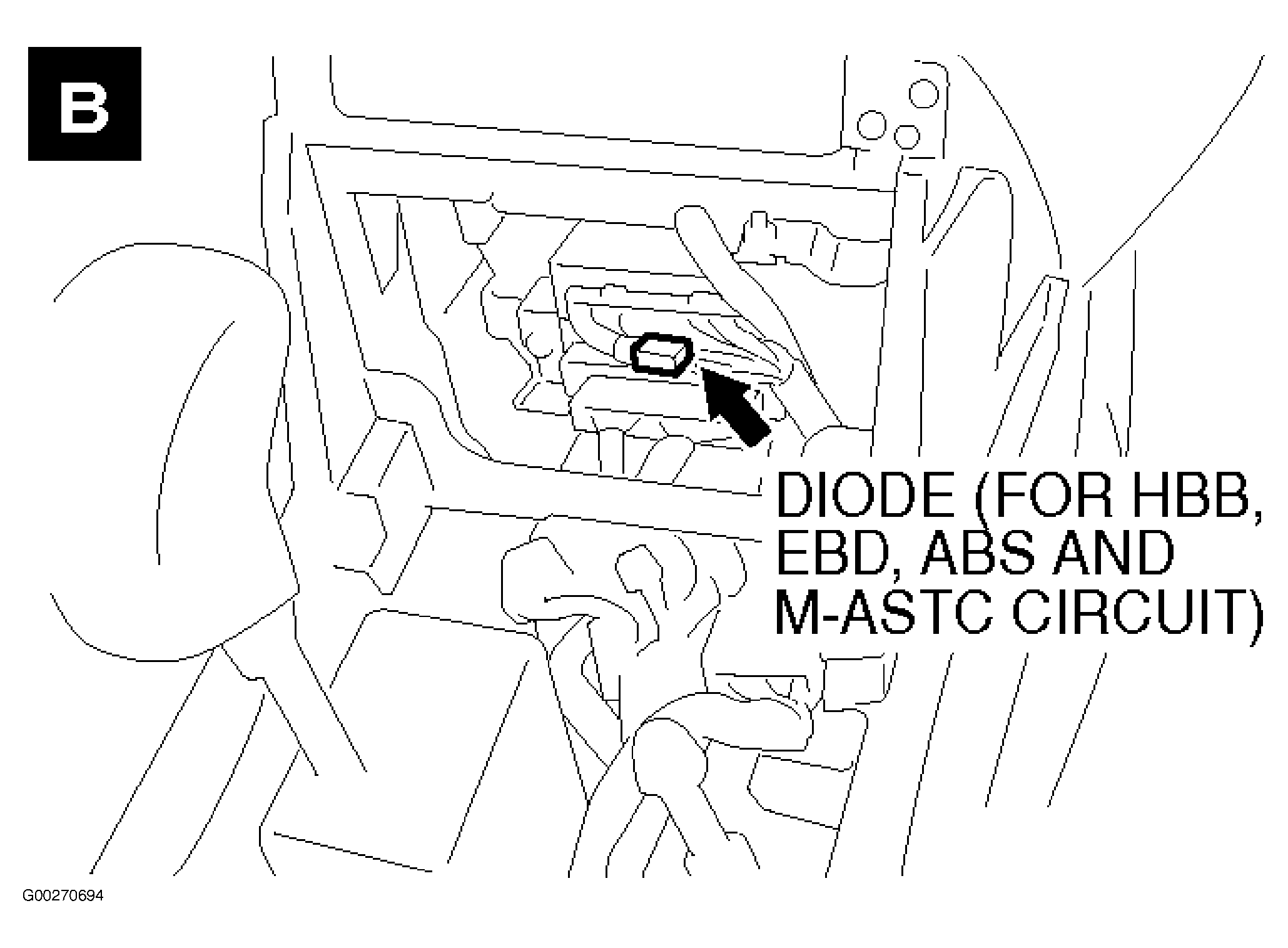

| Diode (HBB, EBD, ABS & M-ASTC) | Behind lower center of dash. See Figure . |

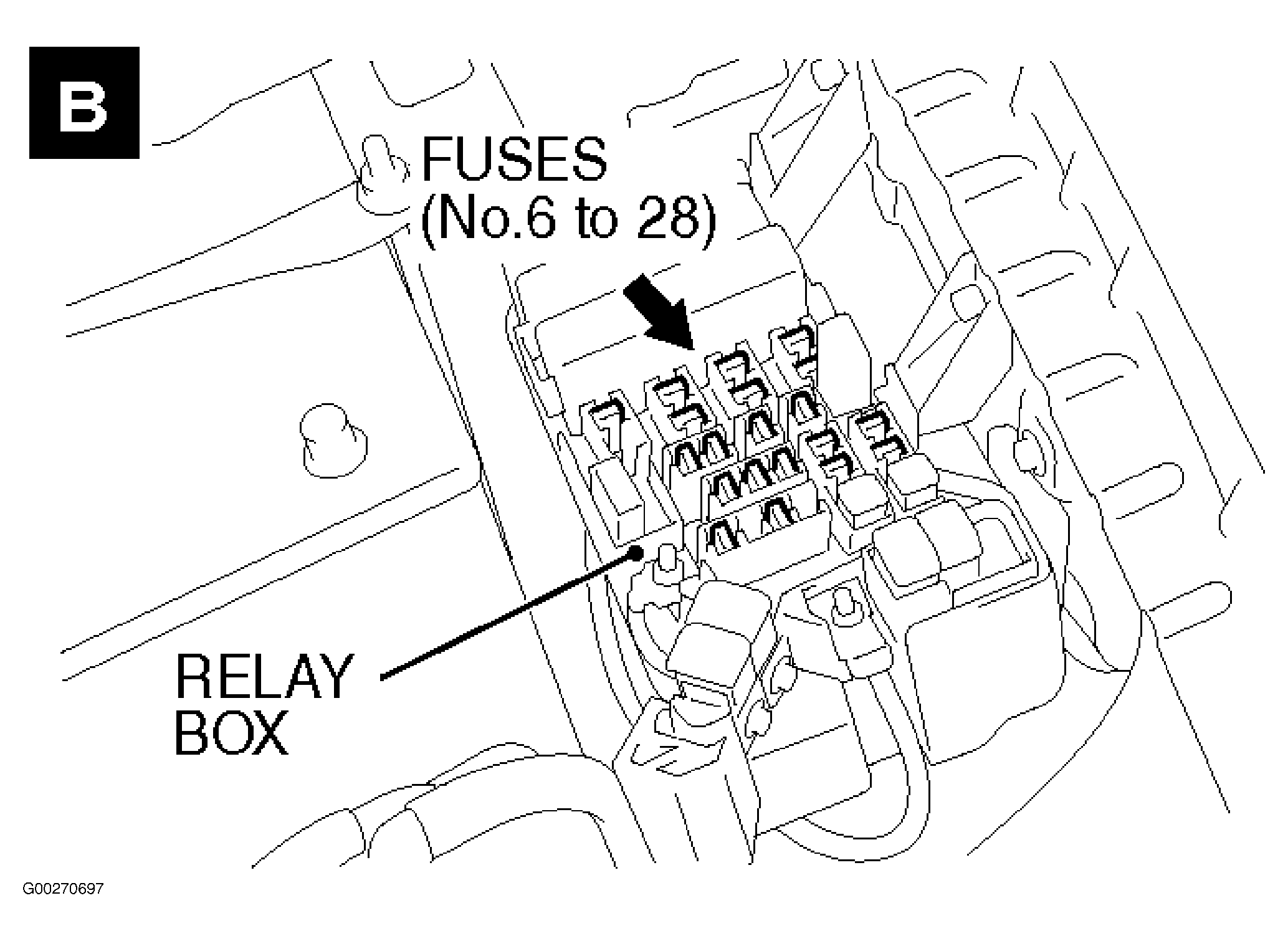

| Engine Compartment Relay Box | Left side of engine compartment. See Figure . |

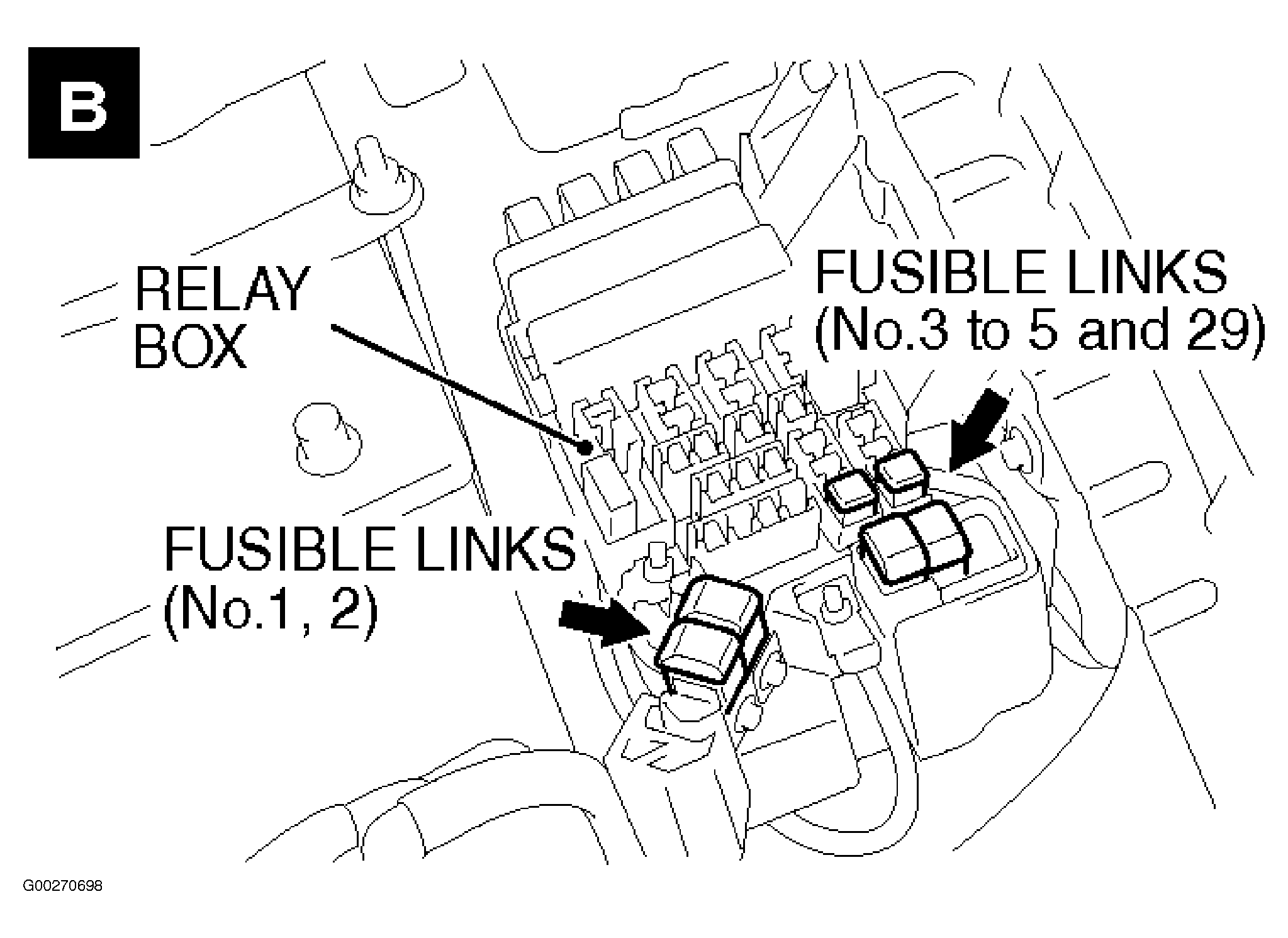

| Fusible Links 1, 2, 3, 4, 5 & 29 | In engine compartment relay box. See Figure . |

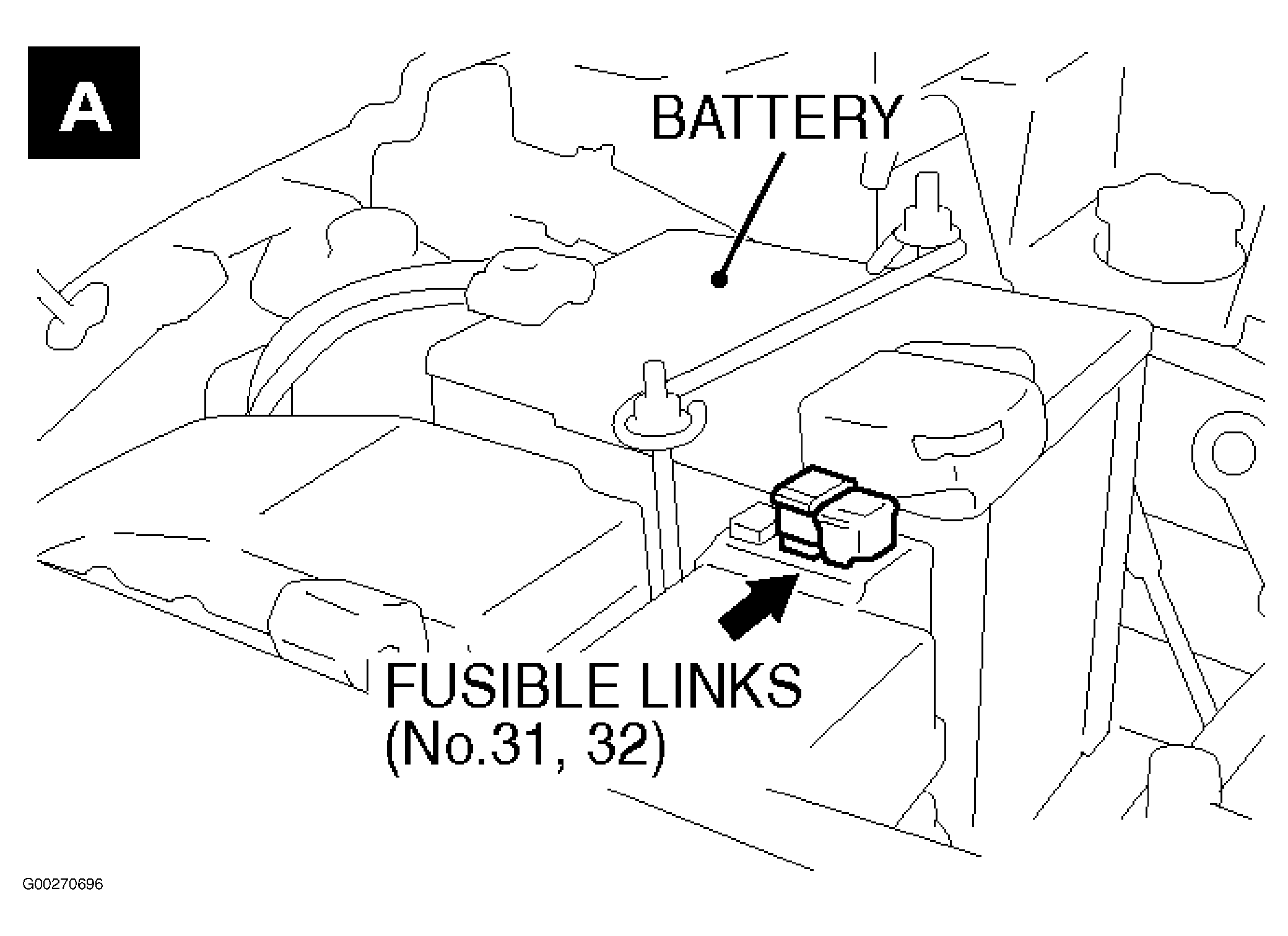

| Fusible Links 31 & 32 | Next to battery. See Figure . |

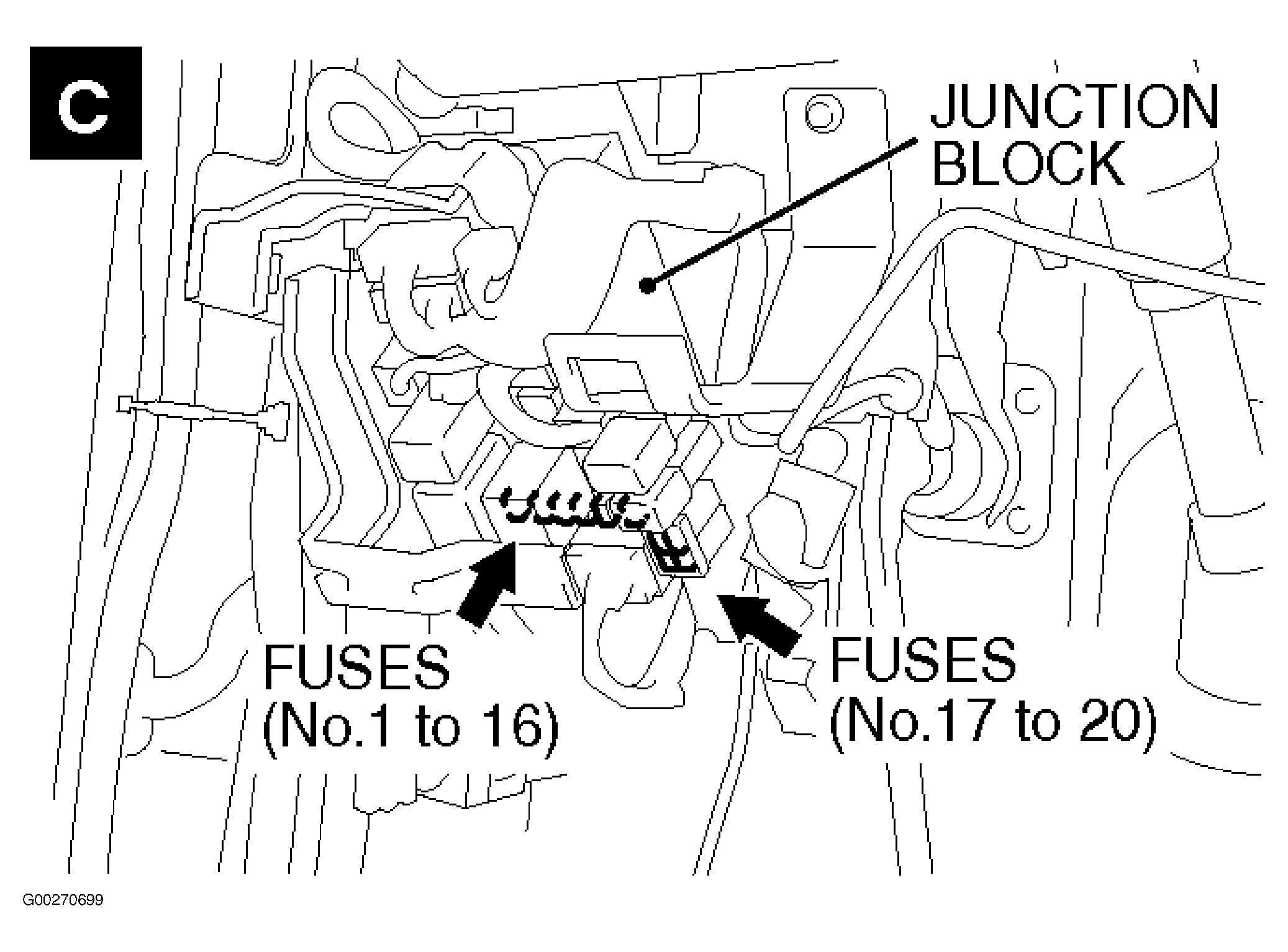

| Junction Block | Behind lower left side of dash. See Figure . |
