Removal And Installation: Notes

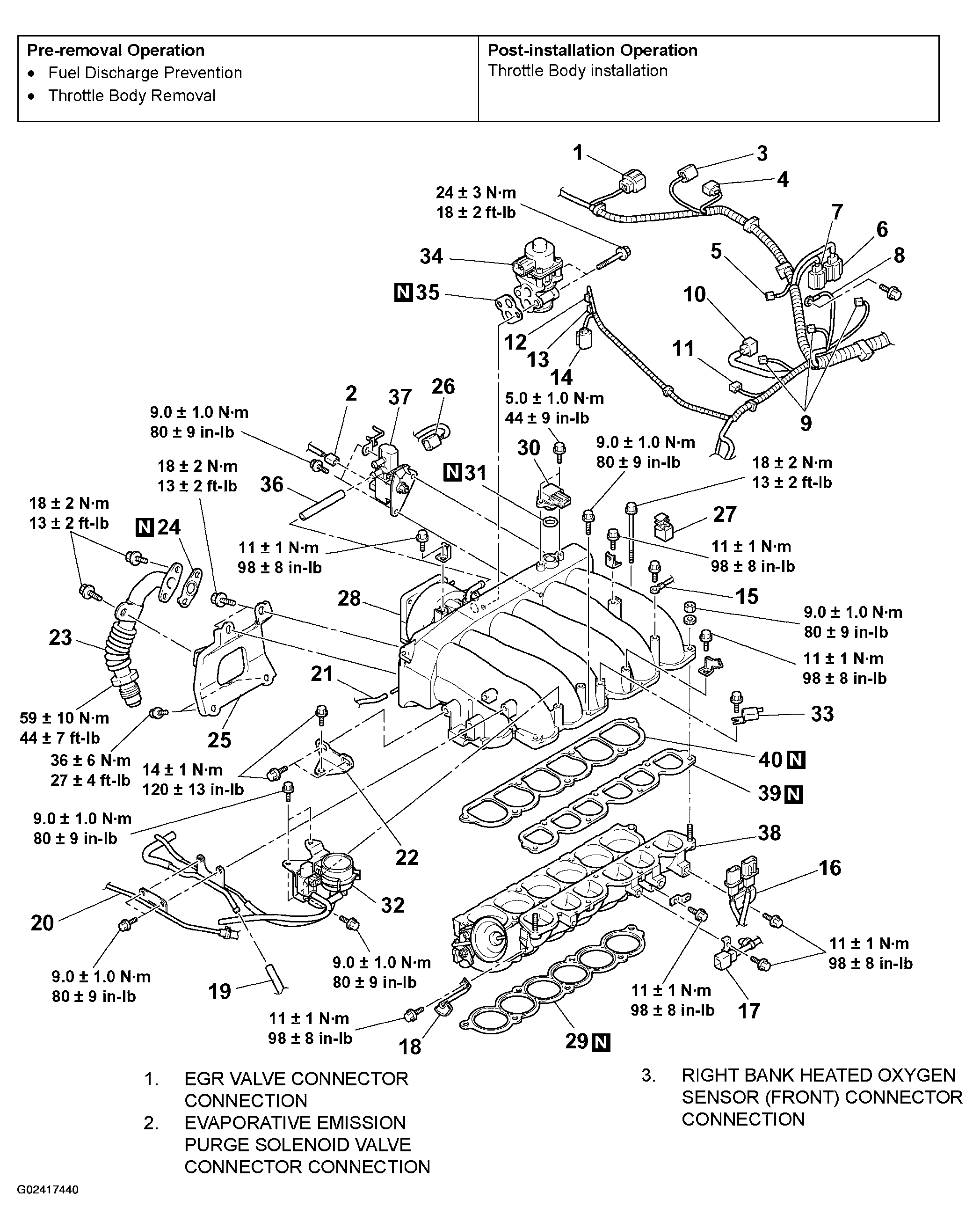

Fig 1: Removing & Installing Intake Manifold (1 Of 3)
G02417440Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

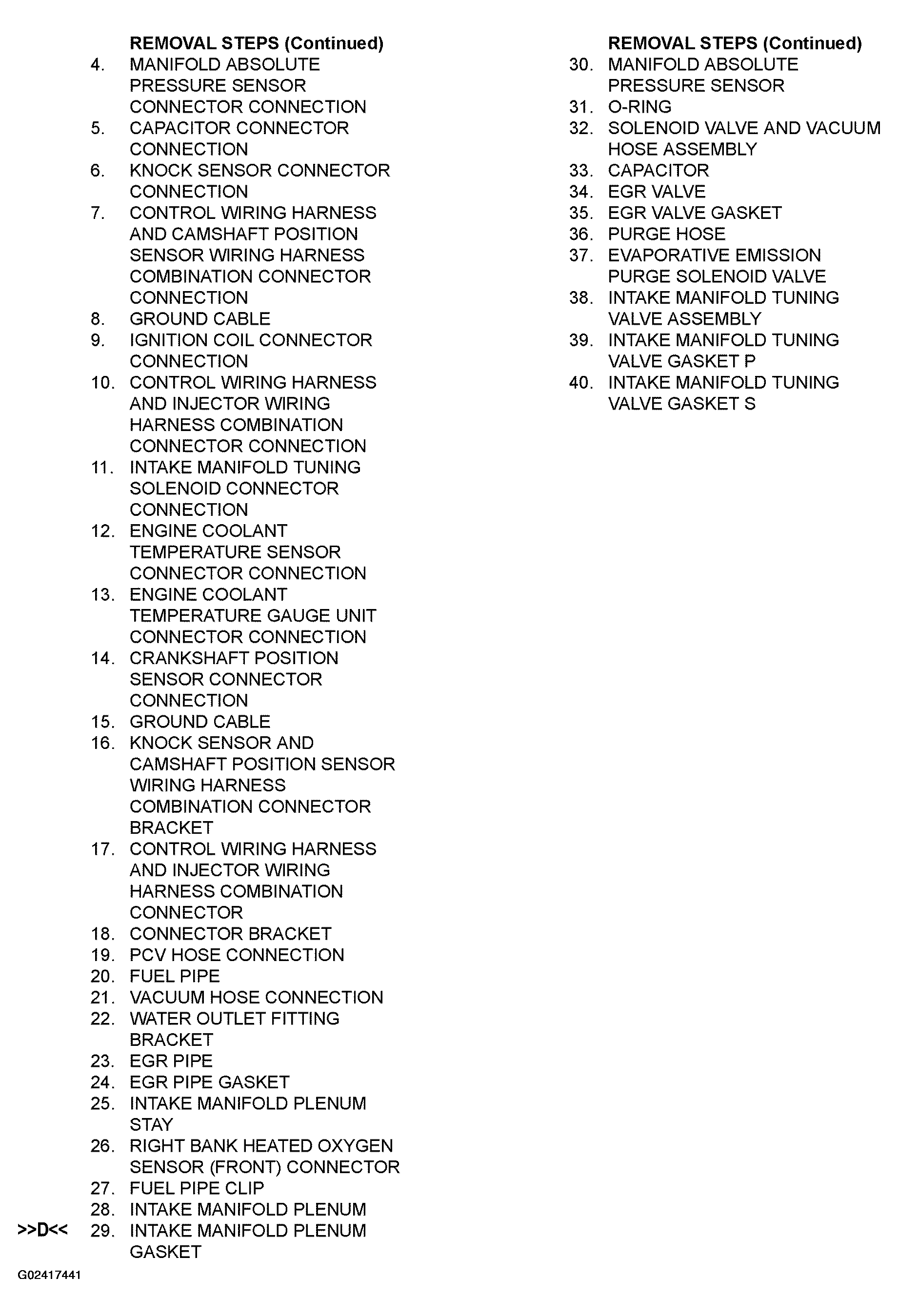

Fig 2: Removing & Installing Intake Manifold (2 Of 3)
G02417441Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

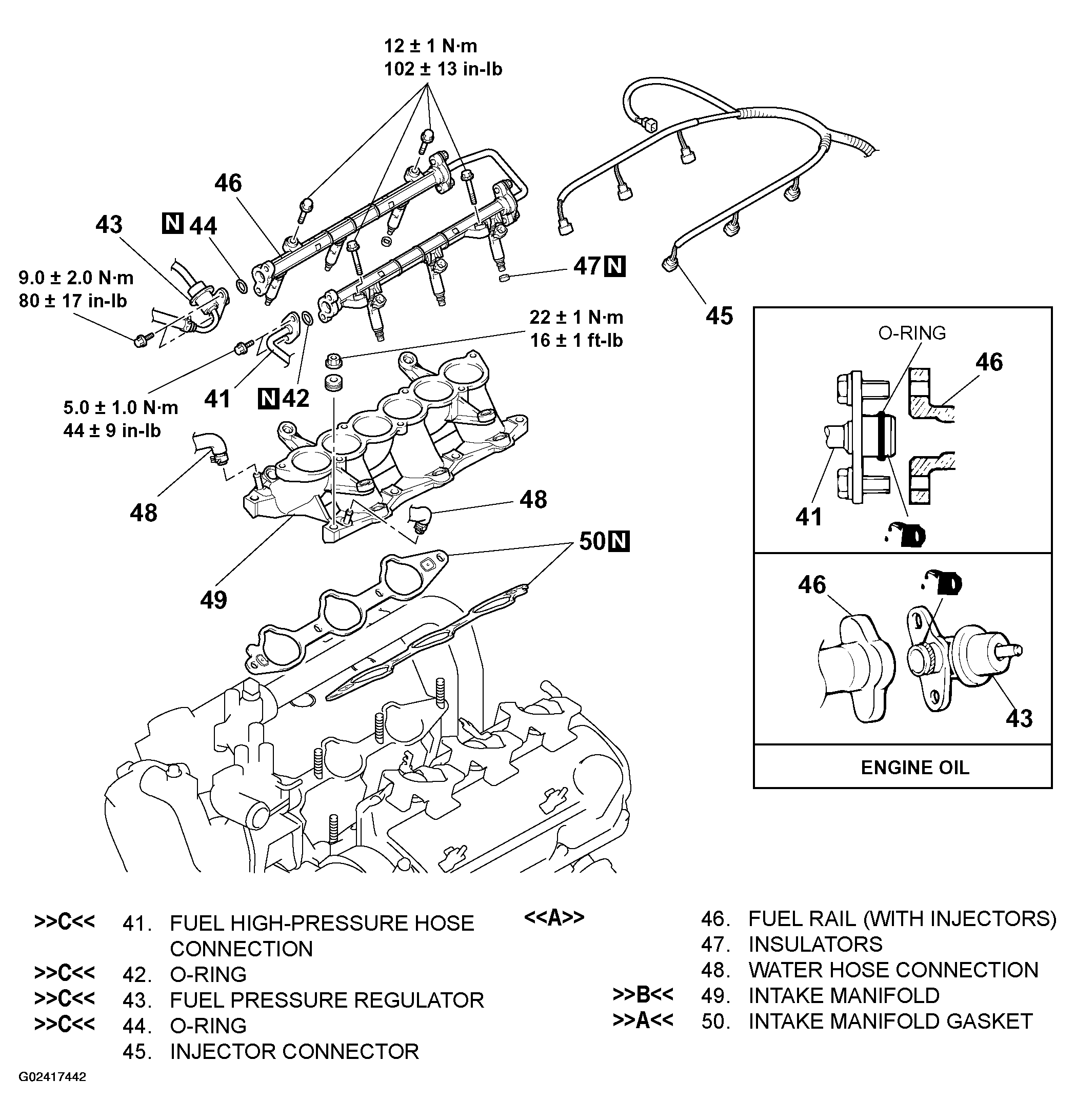

Fig 3: Removing & Installing Intake Manifold (3 Of 3)
G02417442Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
