Shift Pattern Control

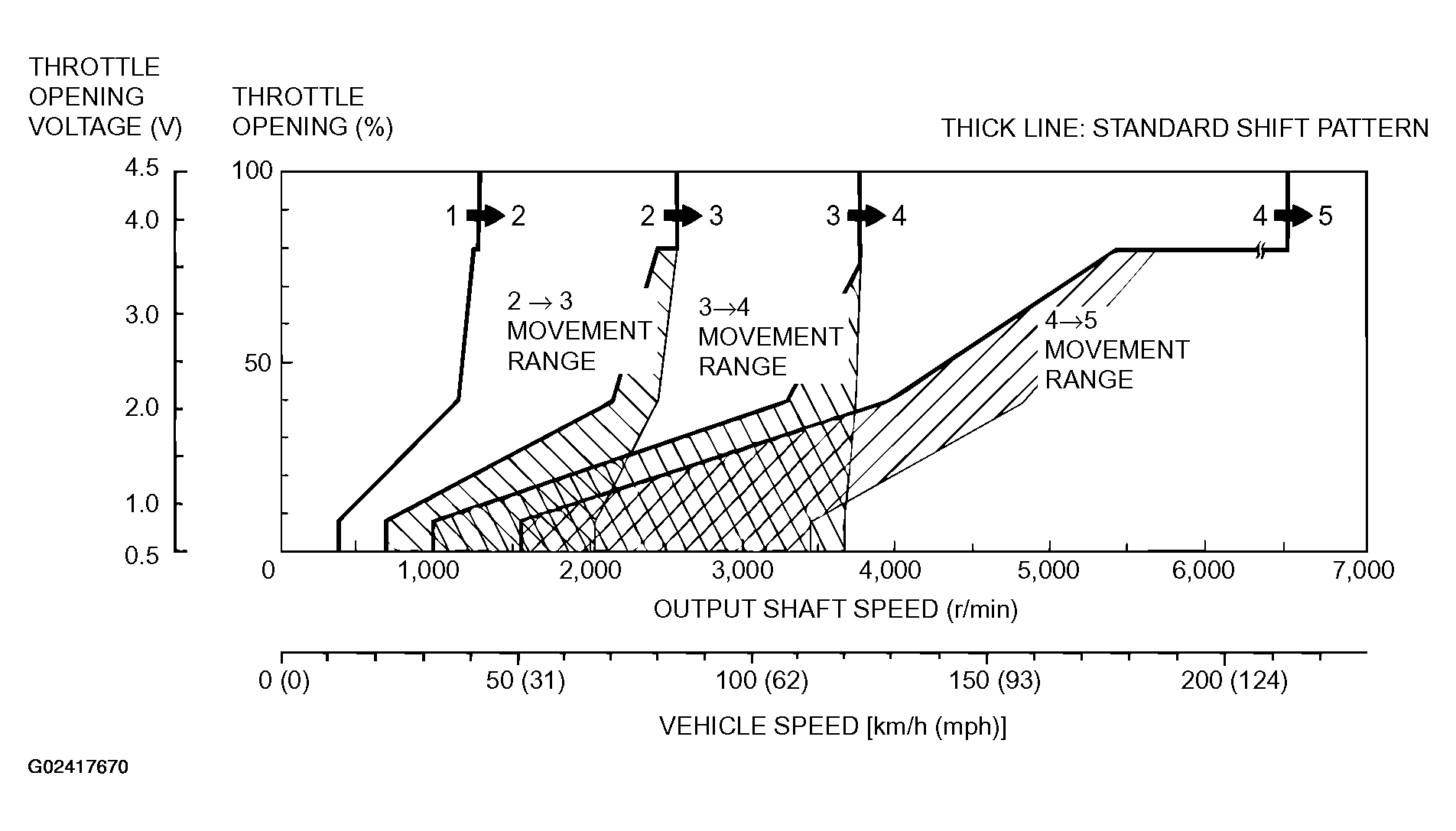

Fig 1: Shift Pattern Control - Upshift Pattern

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

NOTE: Within 2 -to- 3 and 3 -to- 4 movement ranges, the PCM adjusts shift points according to the driving conditions by memorizing the accelerator pedal stroke and braking timing.

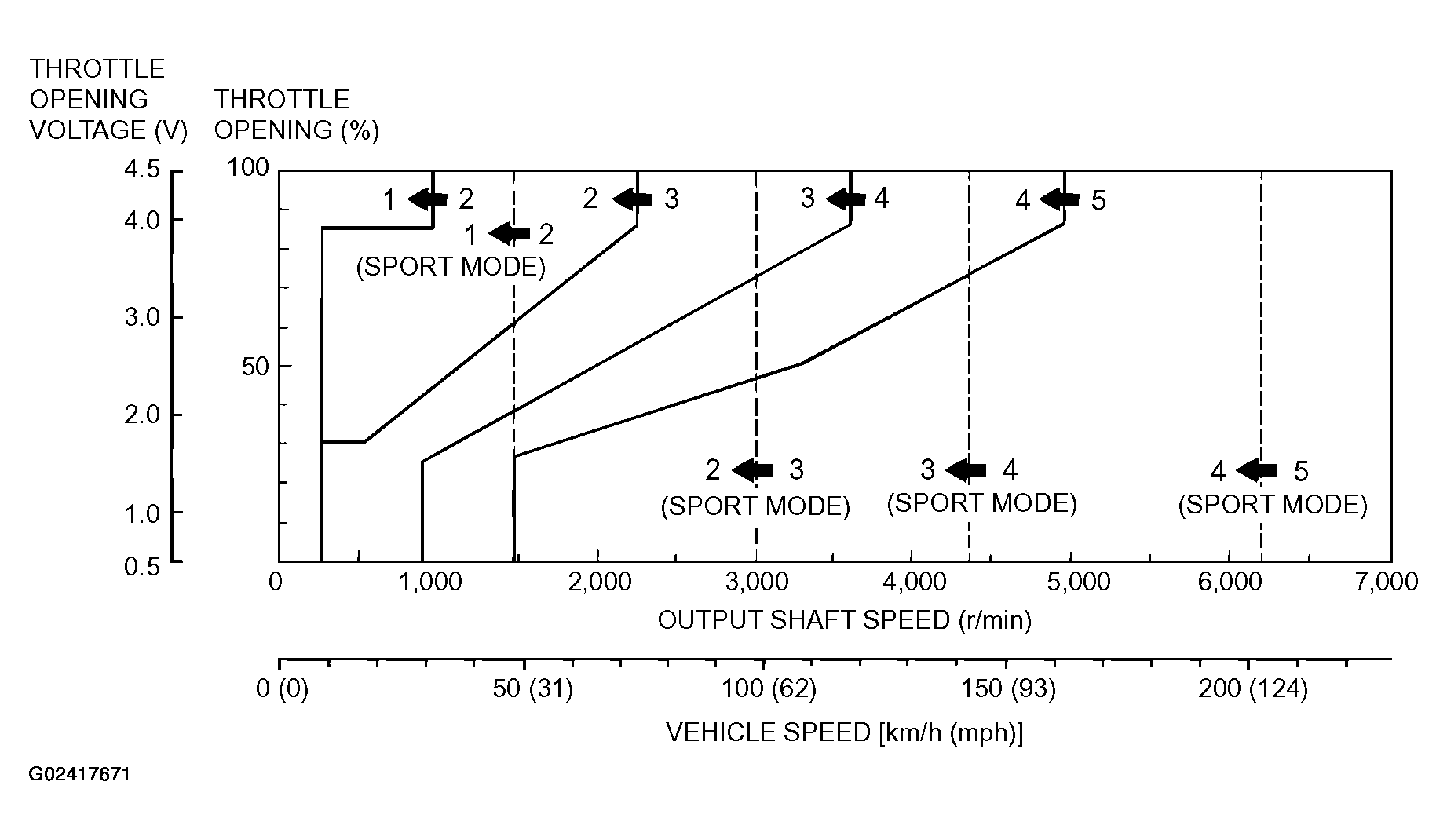

Fig 2: Shift Pattern Control - Downshift Pattern

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
