Key Interlock And Shift Lock Mechanism Check

Carry out the following inspection.

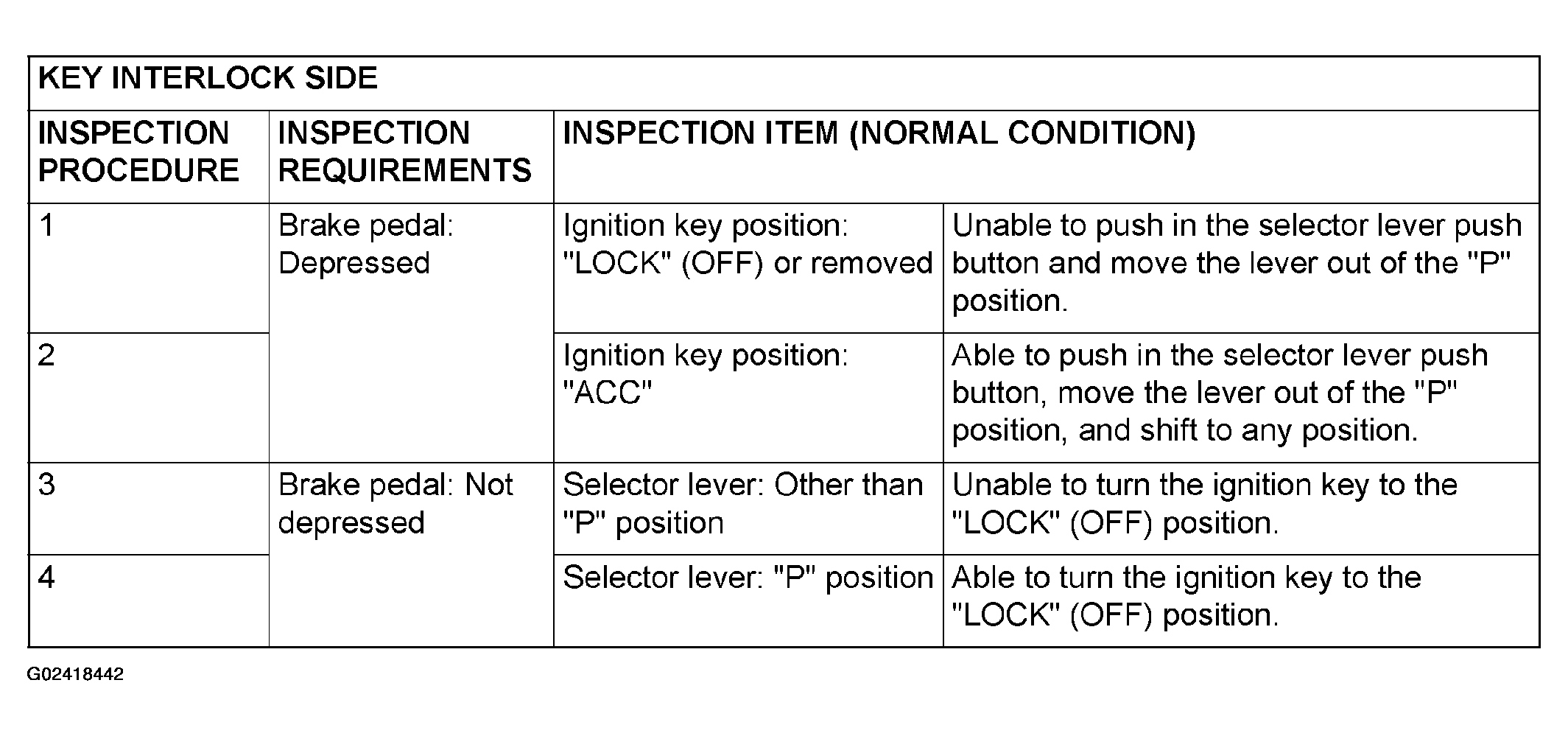

Fig 1: Key Interlock Side Inspection Table
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

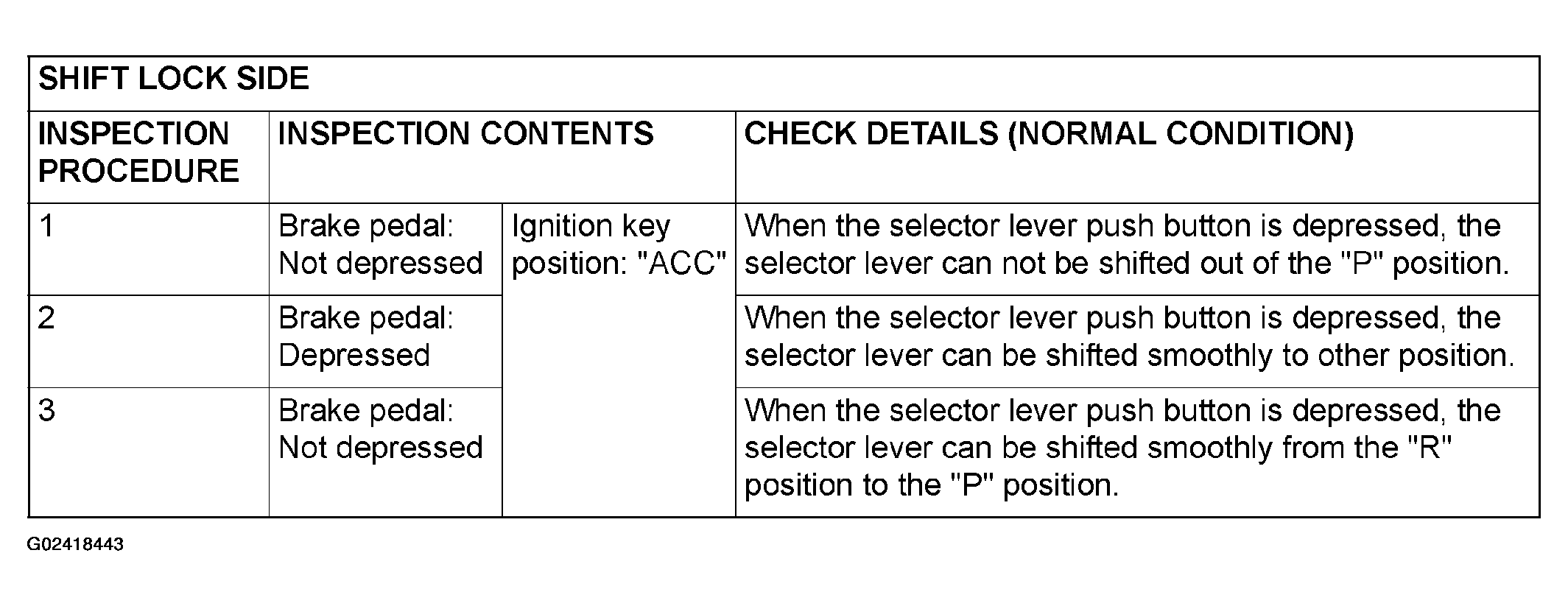

Fig 2: Shift Lock Side Inspection Table
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
When any of the above checks are not normal, adjust the shift lock cable unit in following procedure.
1. Remove the front floor console (Refer to FLOOR CONSOLE ASSEMBLY ).
2. Shift selector lever to "P" position.
3. Turn the ignition key to "LOCK" (OFF) position.
4. Loosen the bolt fixing the shift lock cable unit, push the lever in direction B and the unit in direction C and tighten the bolt at the standard torque.
  1. Tightening torque: 5.0 +/- 1.0 N.m (44 +/- 9 in-lb)
5. Lift the lock guide of the key interlocking cable and then unlock it.
6. Lower the lock guide of the key interlocking cable and then lock it.
  NOTE: The key interlocking cable is adjusted according to the lock position (cap push state) at this time. Readjust the lock position if key interlocking operations malfunction after locking.
After adjustment, recheck the operations. Replace the shift lock cable unit if operations are defective (Refer to REMOVAL AND INSTALLATION ).

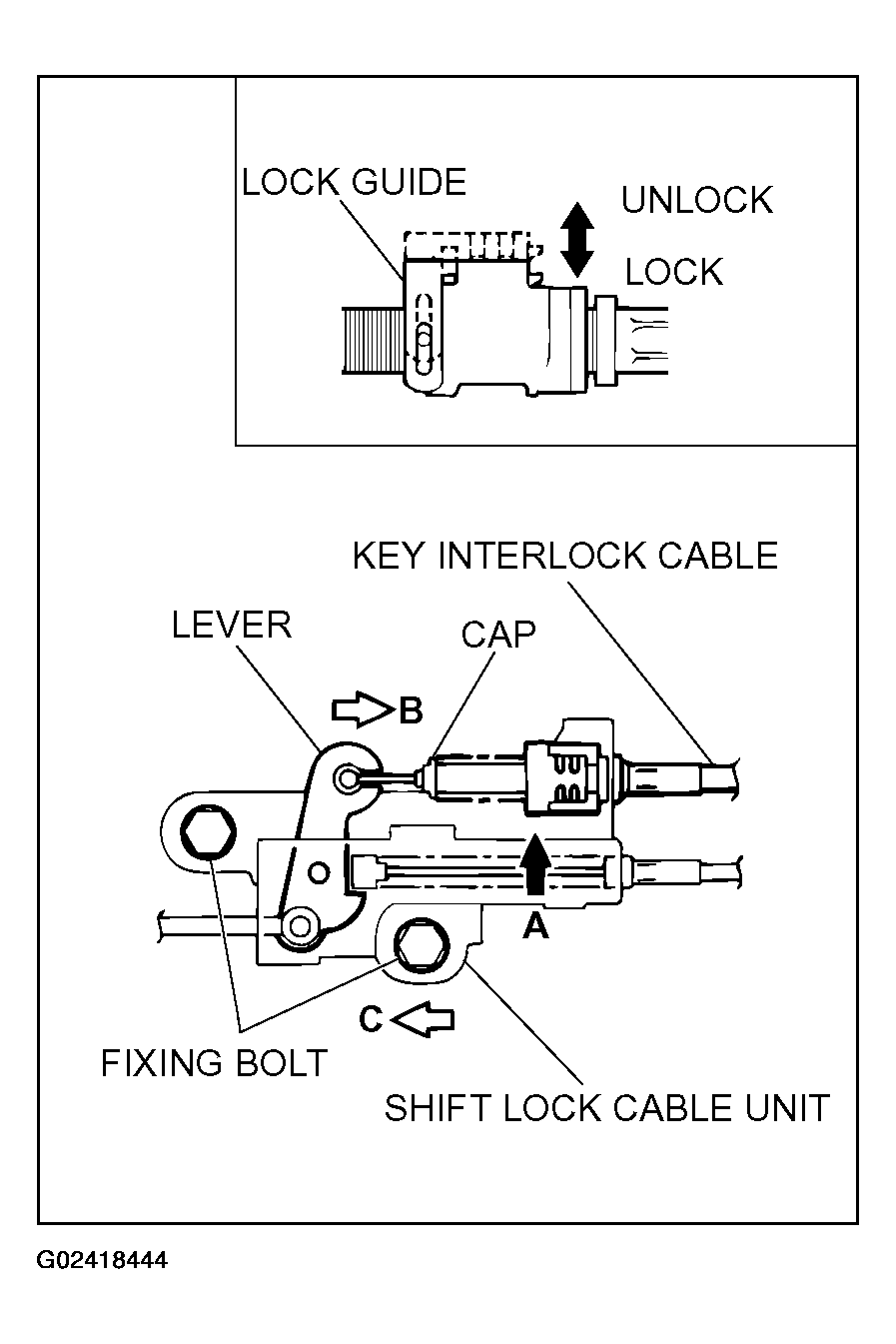

Fig 3: Loosening Bolt Fixing Shift Lock Cable Unit
