Removal And Installation

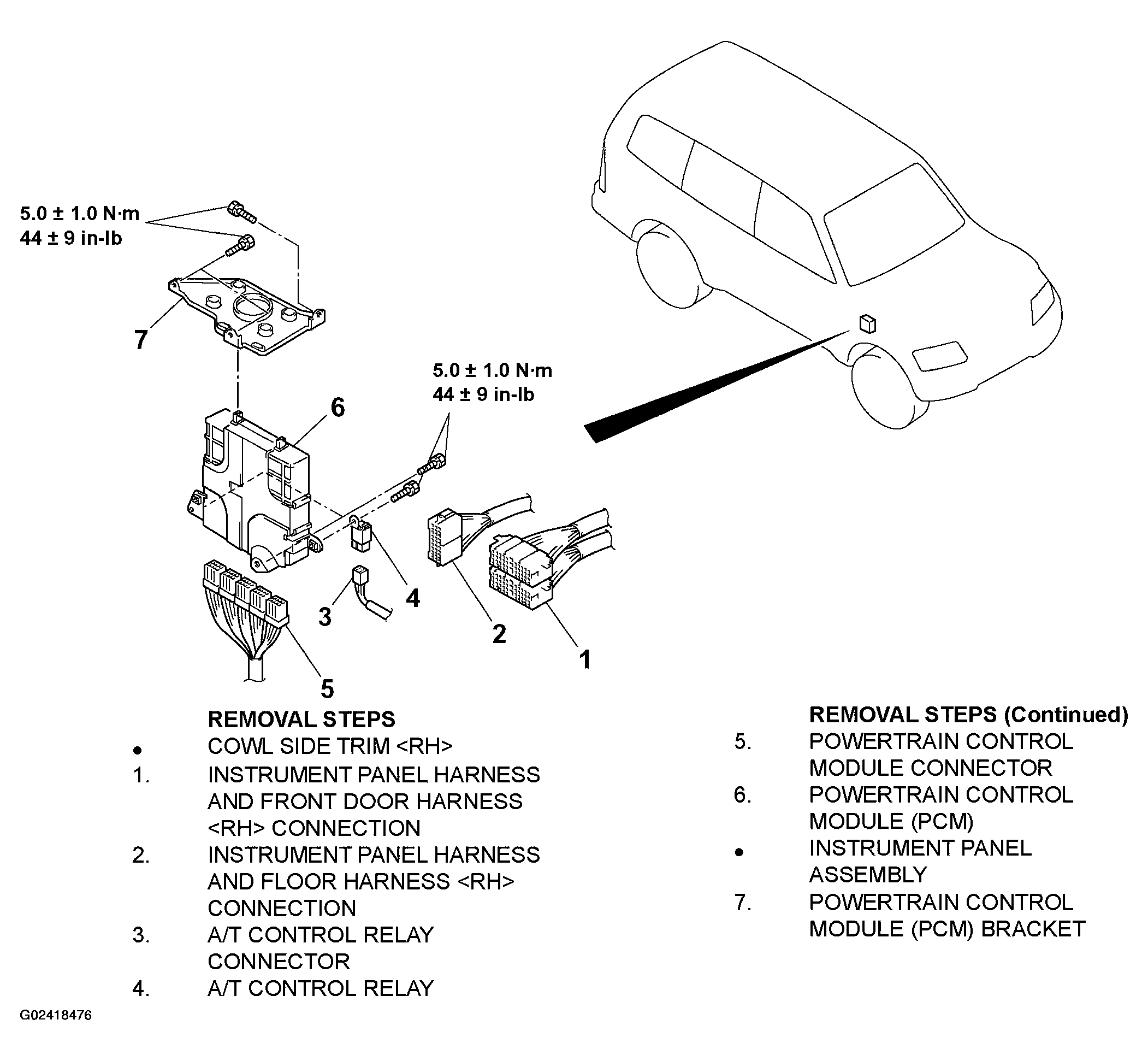

Fig 1: Removing/Installing Powertrain Control Module (PCM)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
