Transmission Control: Inspection

TRANSFER SHIFT LEVER SWITCH CONTINUITY CHECK

SWITCH POSITION MEASUREMENT TERMINAL
2H 1 - 3
4H 1 - 4
4HLc 1 - 5
4LLc 1 - 2
Fig 1: Checking Transfer Shift Lever Switch
G02418460Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

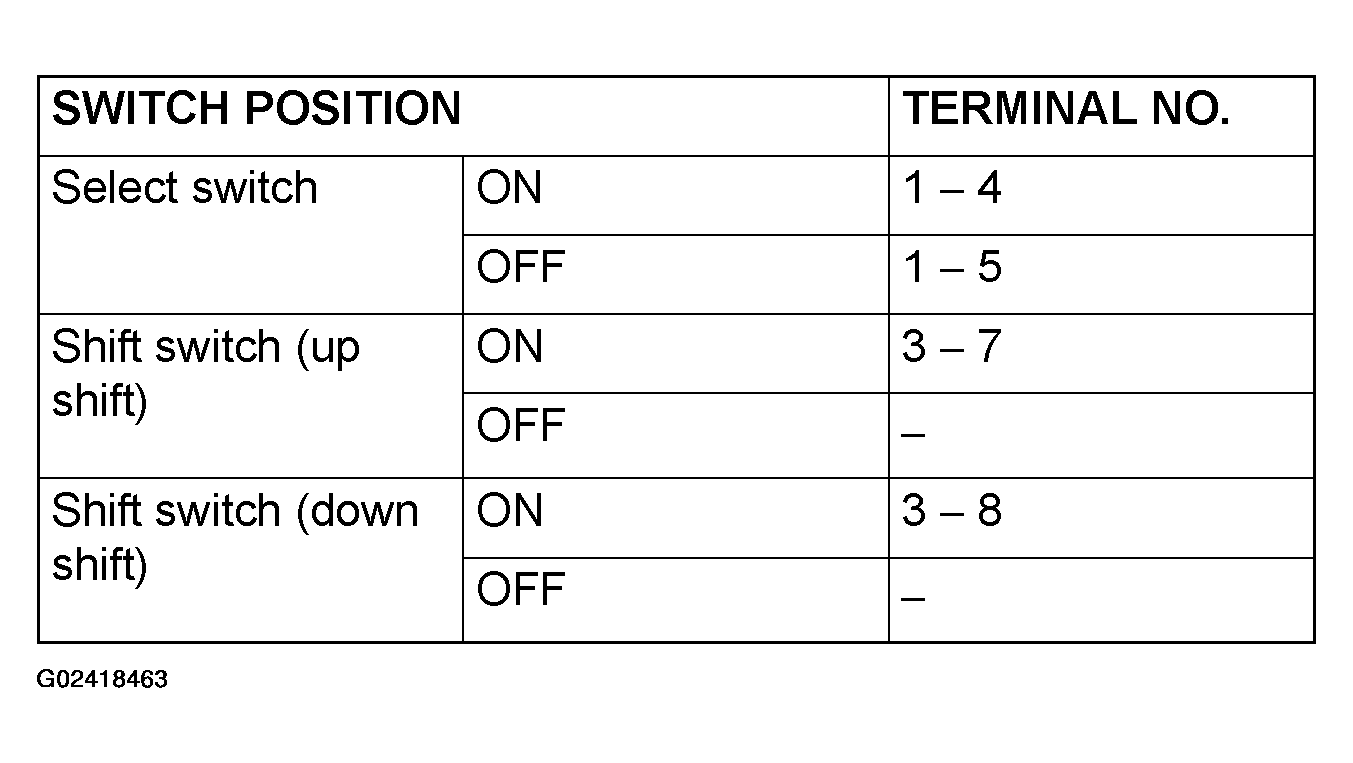

Fig 1: Shift Switch Assembly Continuity Table
G02418463Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

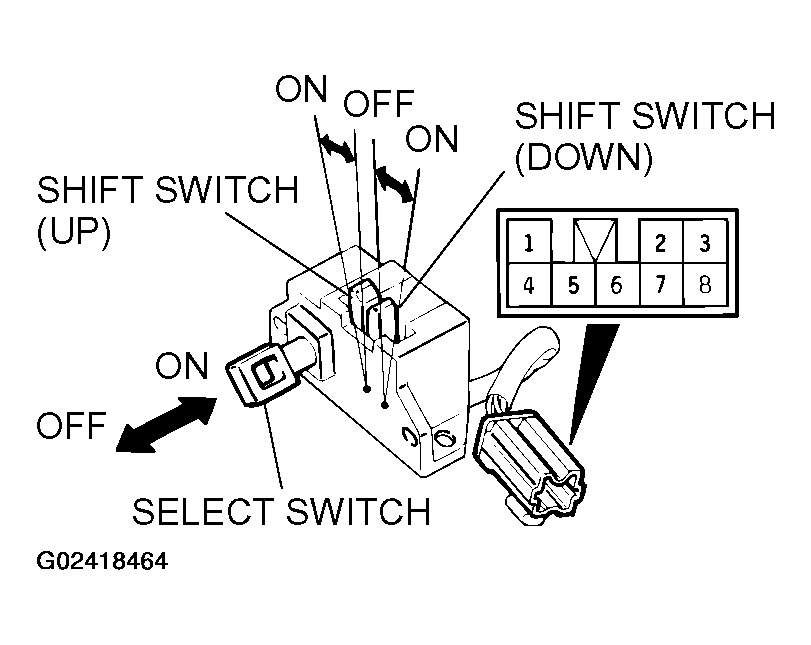

Fig 2: Checking Shift Switch Assembly
G02418464Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
