Sectional View

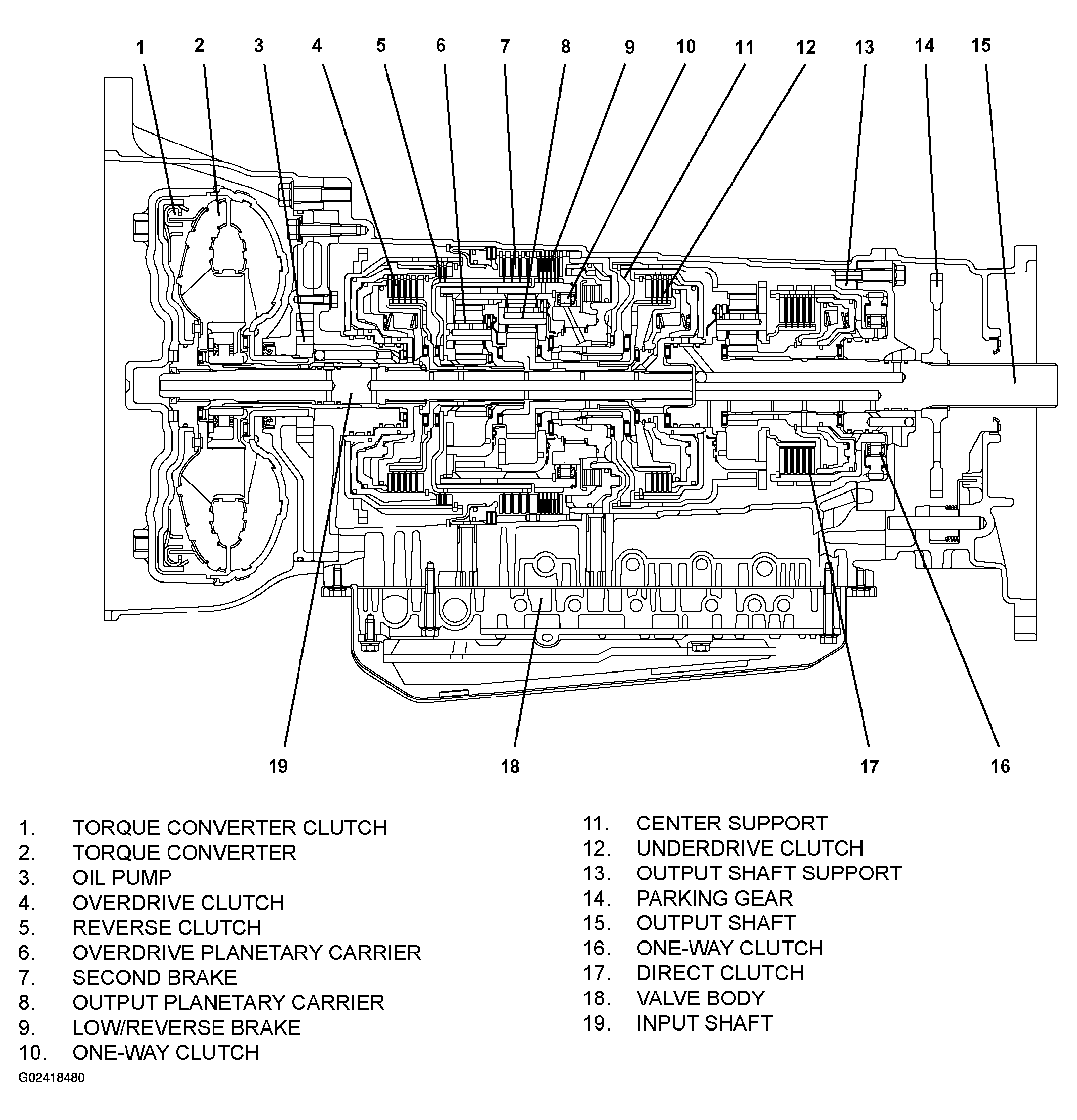

Fig 1: Identifying Sectional View Automatic Transmission (1 Of 2)
G02418480Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 2: Identifying Sectional View Automatic Transmission (2 Of 2)
G02418481Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
