Oxygen Sensor: Service and Repair

EXHAUST MANIFOLD

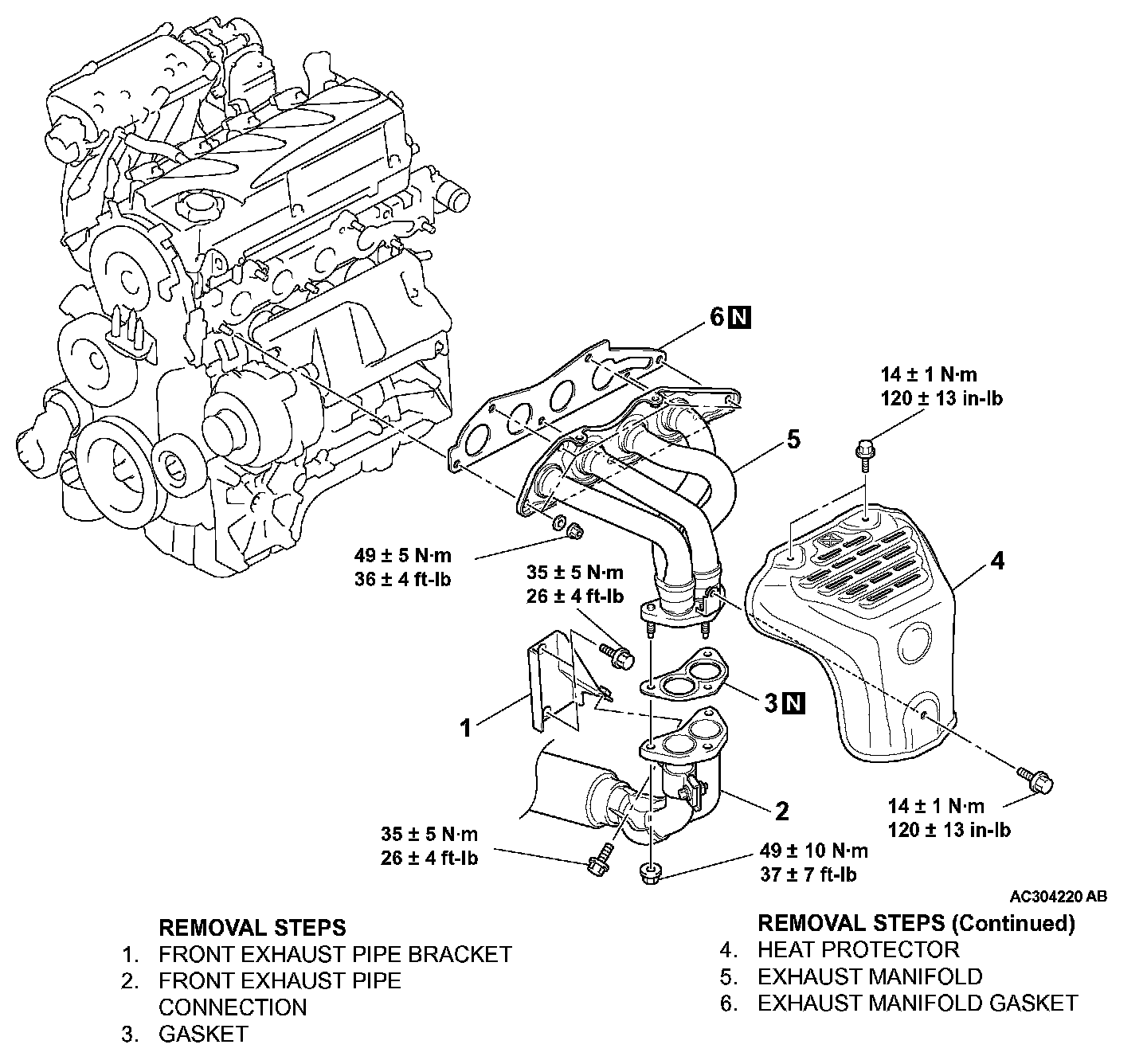

REMOVAL AND INSTALLATION

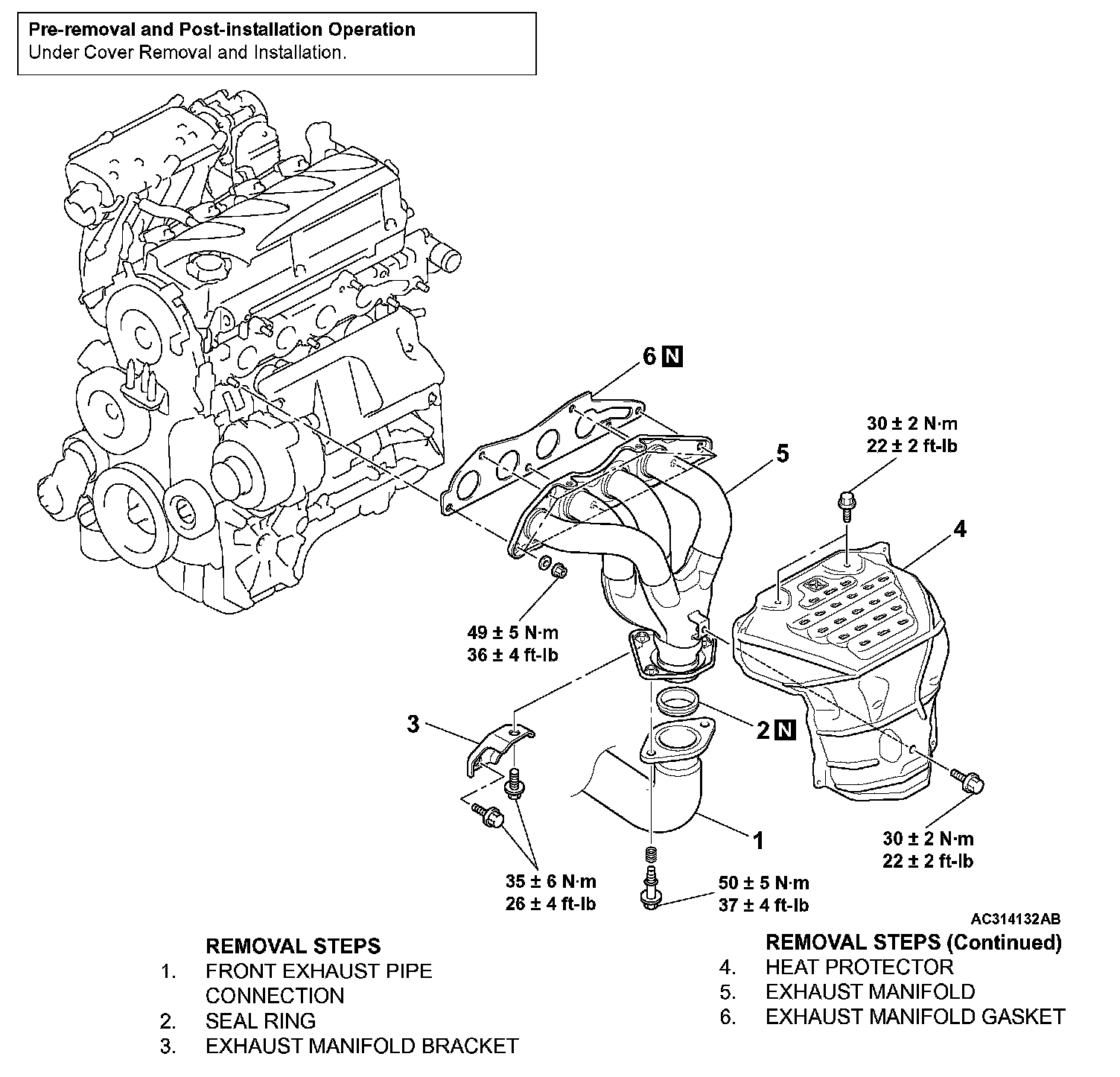

REMOVAL AND INSTALLATION

INSPECTION
Check the following points; replace the part if a problem is found.

Exhaust Manifold Check
1. Check for damage or cracking of any part.
2. Using a straight edge and a feeler gauge, check for distortion of the cylinder head installation surface.

Standard value: 0.15 mm (0.006 inch) or less

Limit: 0.20 mm (0.008 inch)
