Ignition Switch: Service and Repair
IGNITION SWITCH

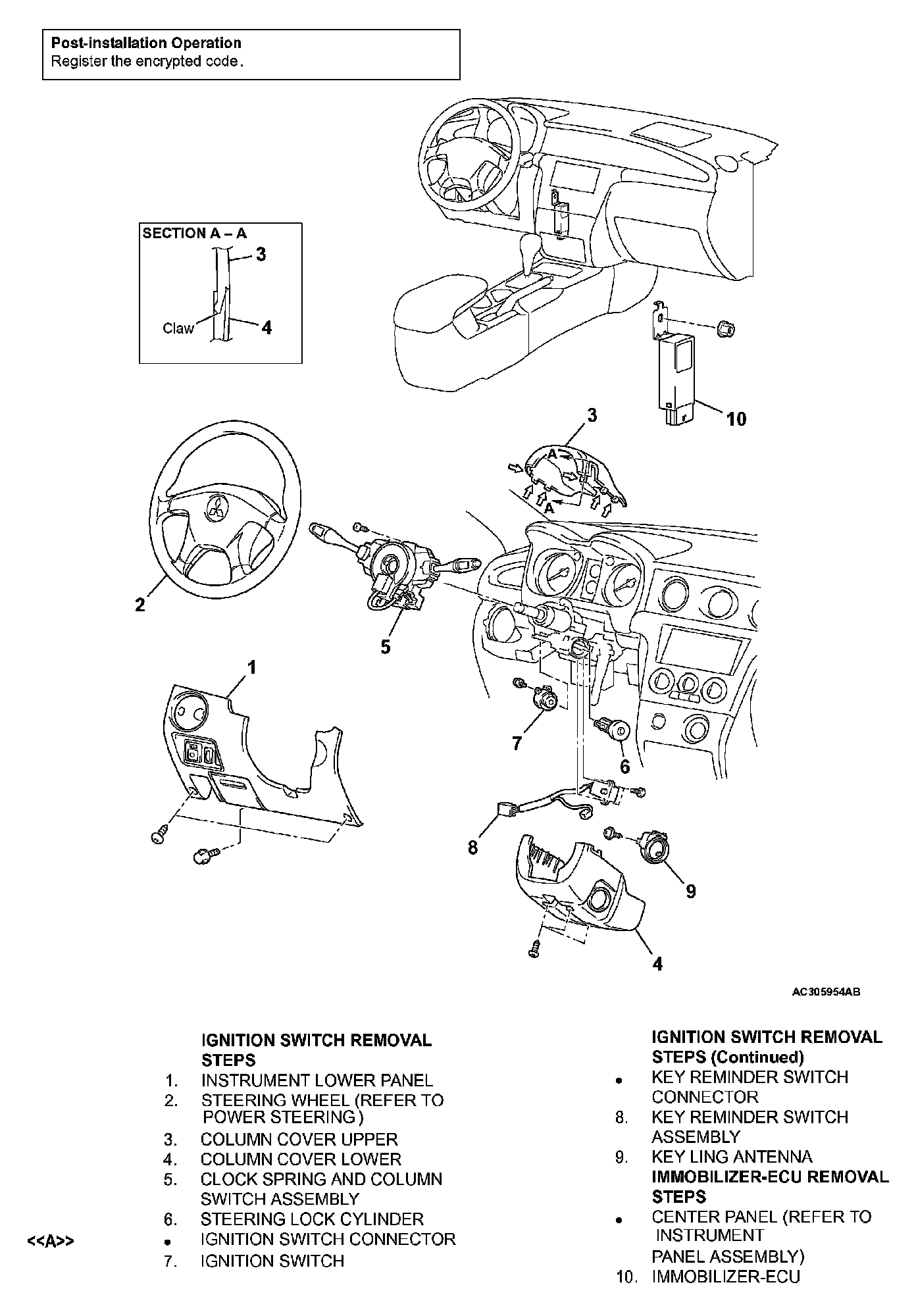

REMOVAL AND INSTALLATION
WARNING:
- Before removal of the air bag module, refer to SRS Service Precautions and Air Bag Module(s) and Clock Spring.
- When removing and installing the steering wheel, do not let it bump against the air bag module.
REMOVAL SERVICE POINT
<> STEERING LOCK CYLINDER REMOVAL
1. Insert the key in the steering lock cylinder and turn it to the "ACC" position.
2. Using a small Phillips head screwdriver, pull the steering lock cylinder toward you.
