Disc Brake Rotor Check: Notes

WARNING: This page is about a different car, the 2005 Mitsubishi Endeavor. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Disc brakes must be kept within the allowable service values in order to maintain normal brake operation.

Before turning the brake disc, the following conditions should be checked.

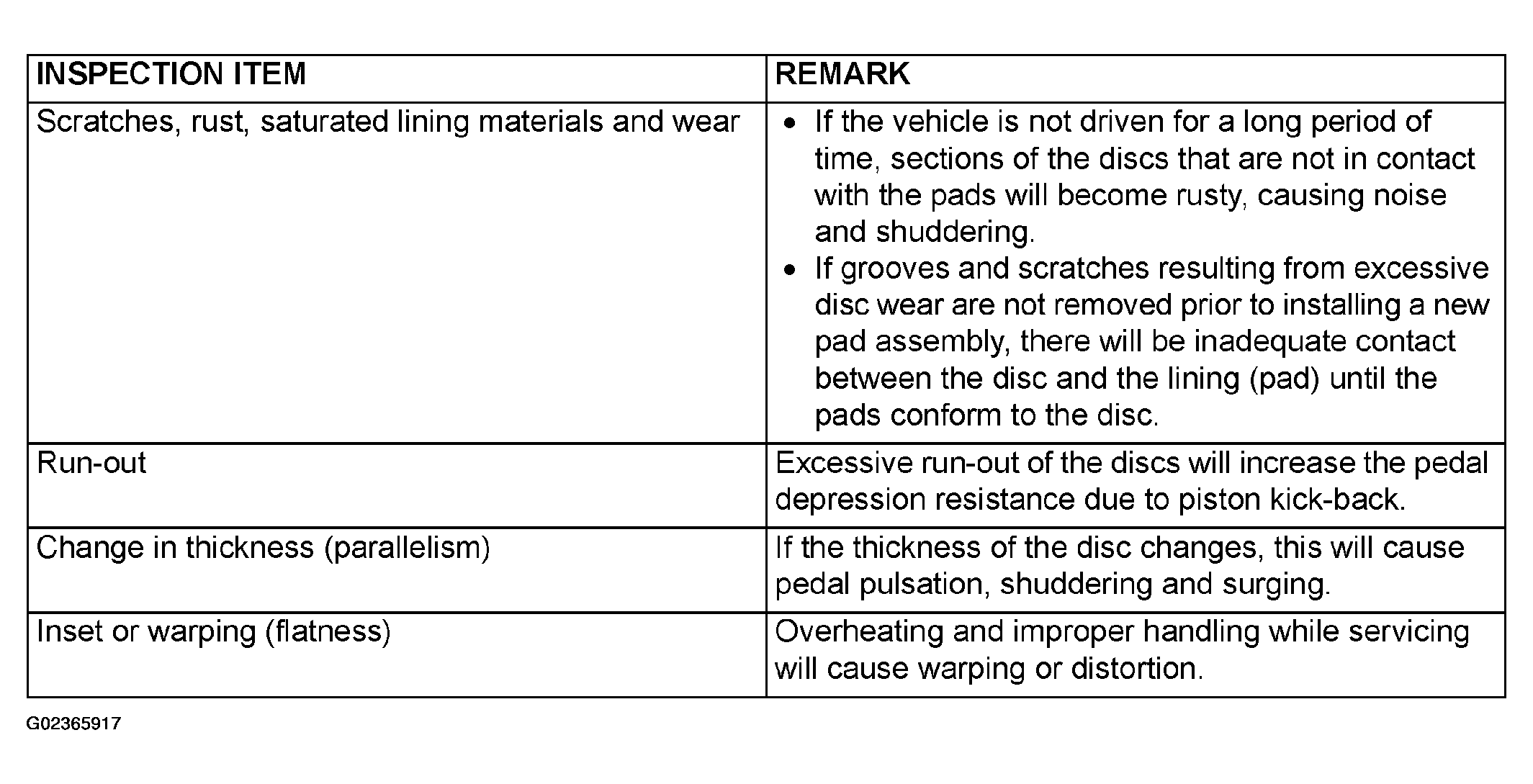

Fig 1: Disc Brake Rotor Checking Conditions
G02365917Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
