Basic operation

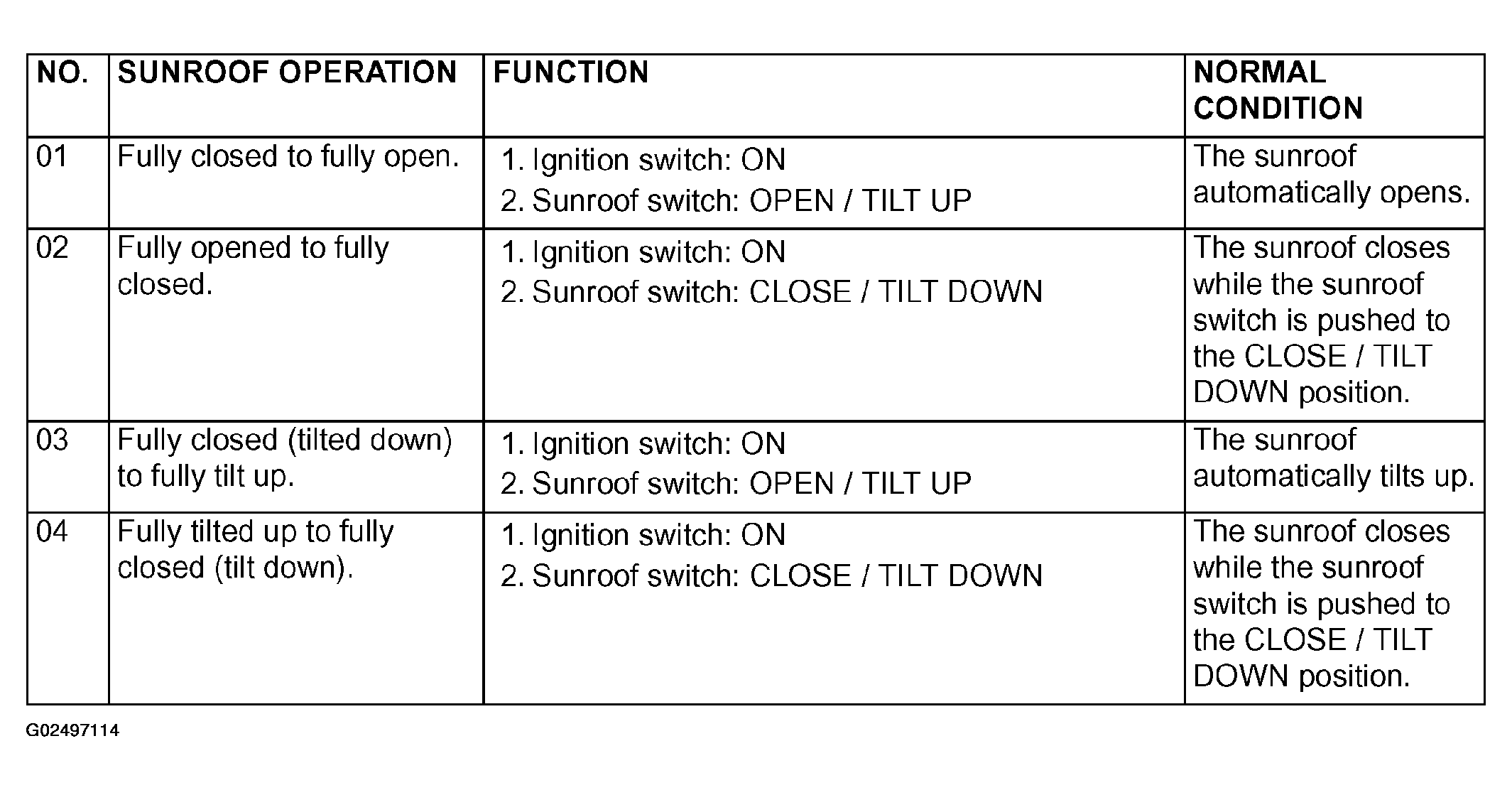

Fig 1: Sunroof Switch Basic Operation Chart (1 Of 2)
G02497114Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

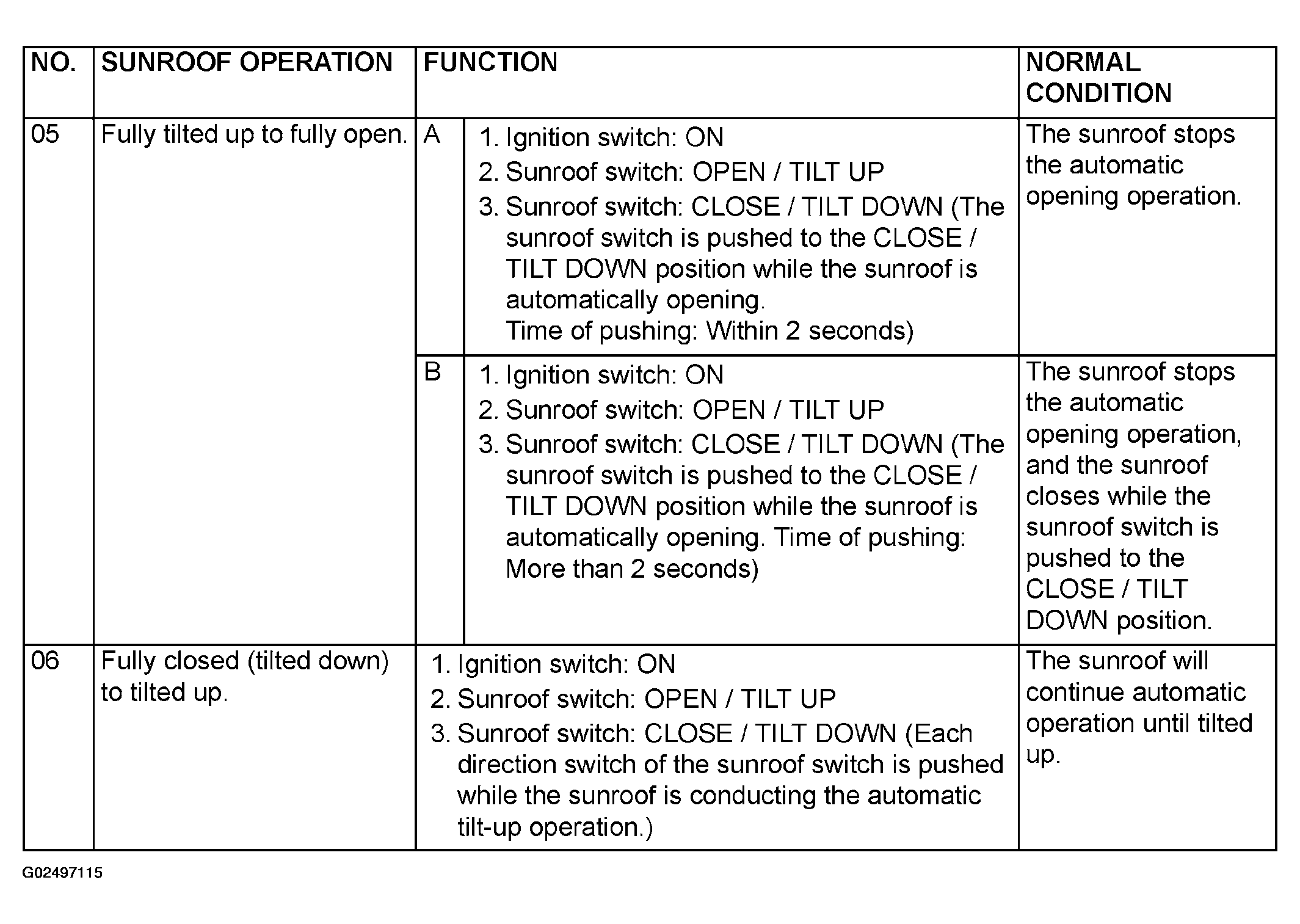

Fig 2: Sunroof Switch Basic Operation Chart (2 Of 2)
G02497115Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
