Removal And Installation: Notes

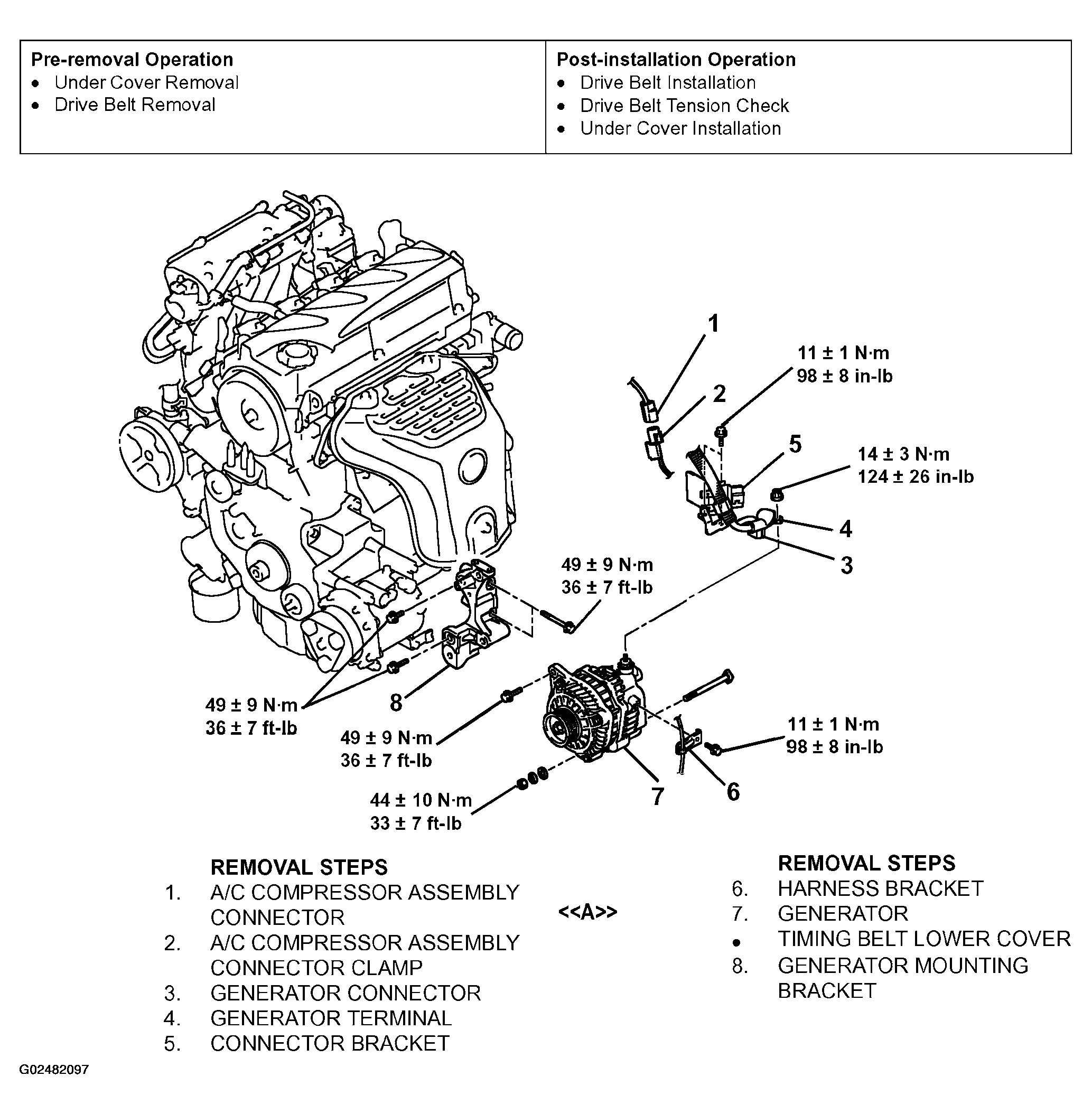

Fig 1: Identifying Generator Assembly Components (1 Of 2)
G02482097Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
