Removal And Installation: Notes

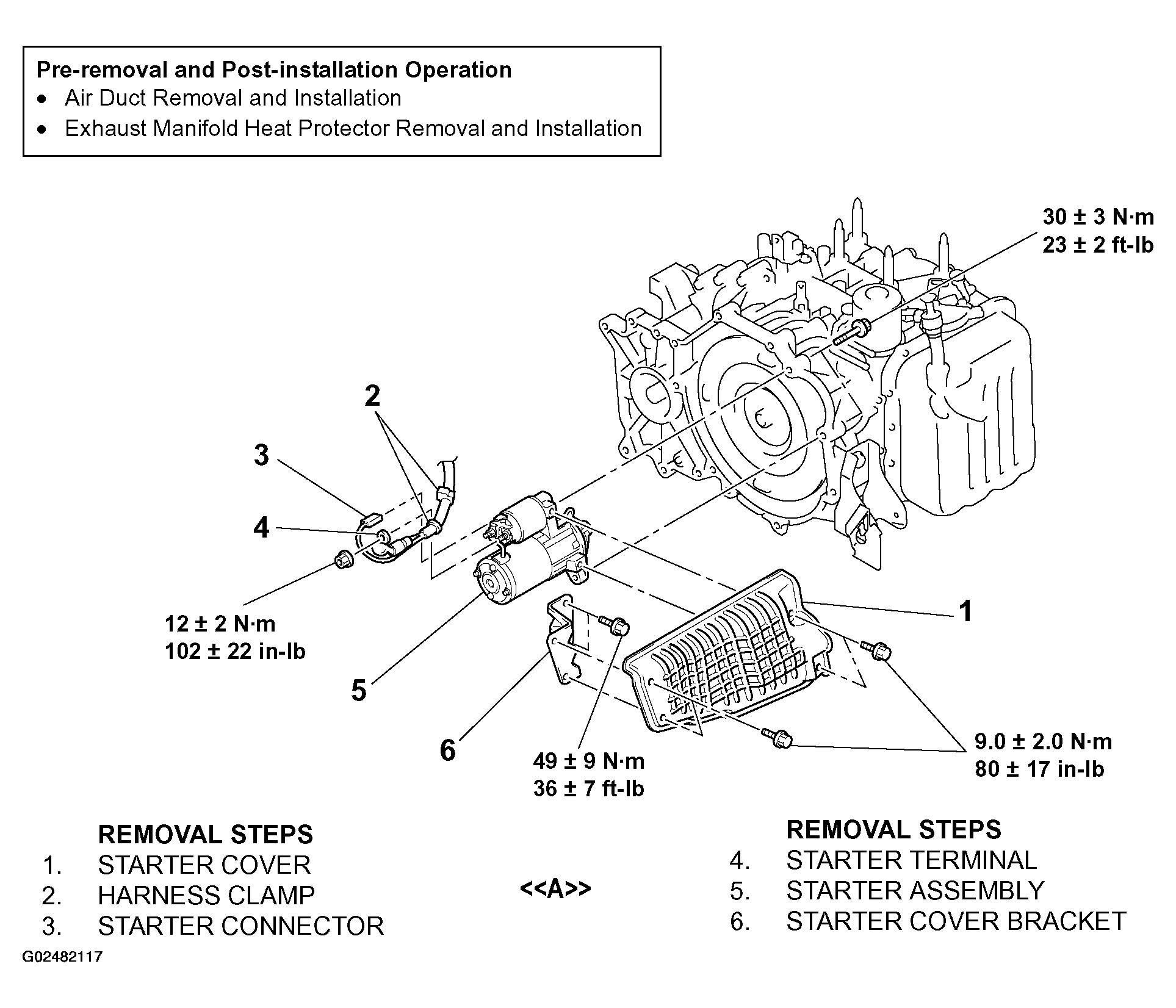

Fig 1: Removing / Installation Of Starter Motor Assembly
G02482117Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
