Service Specifications

WARNING: This page is about a different car, the 2005 Mitsubishi Endeavor. However, it is still accessible from the selected car via links, so may be relevant.

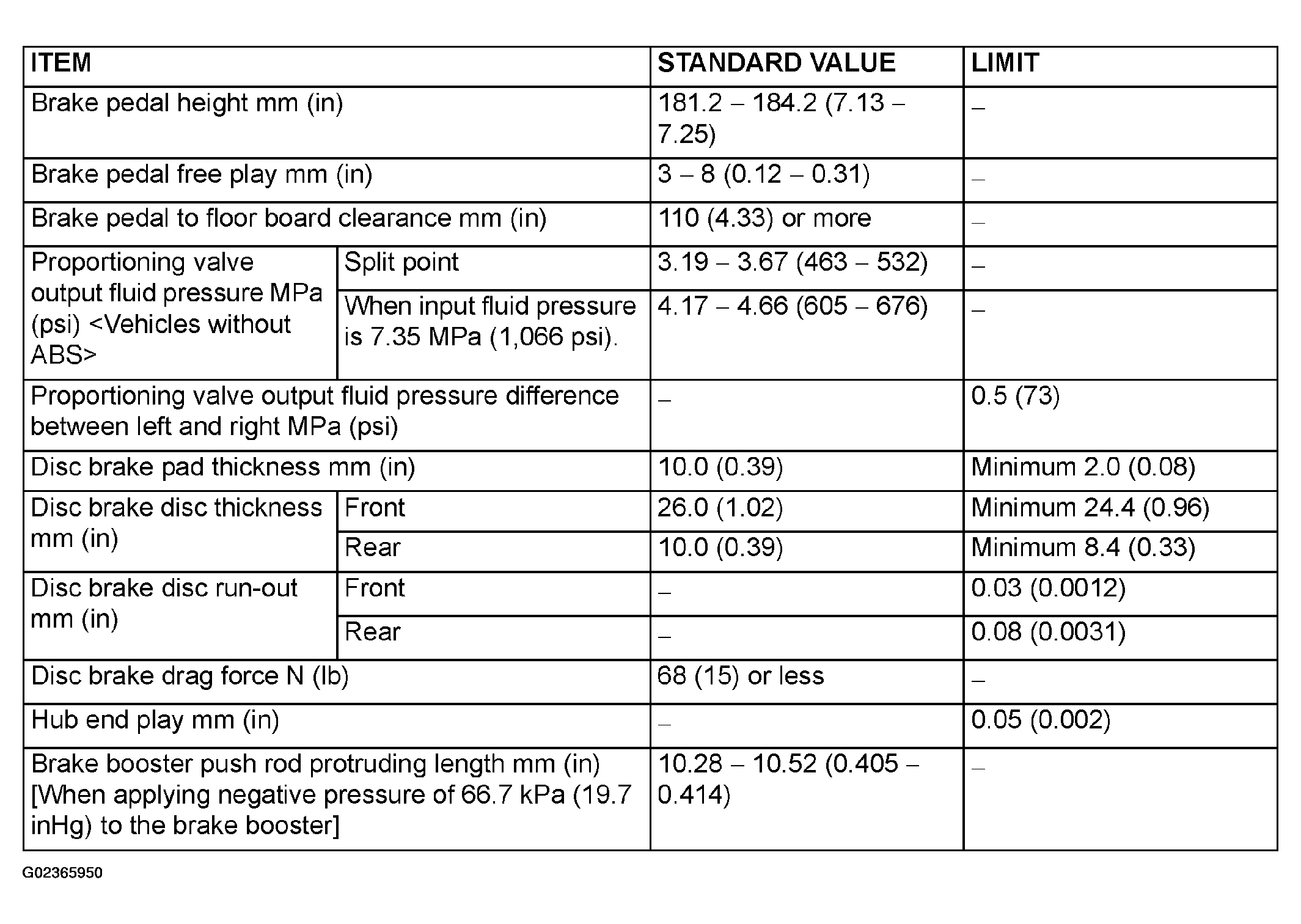

Fig 1: Service Specifications
G02365950Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
