>> B << Clock Spring Installation
WARNING:
Ensure that the clock spring's mating marks are properly aligned. If not, the steering wheel may not rotate completely during a turn, or the flat cable in the clock spring could be damaged, This would prevent normal SRS operation and possibly cause serious injury to the driver.

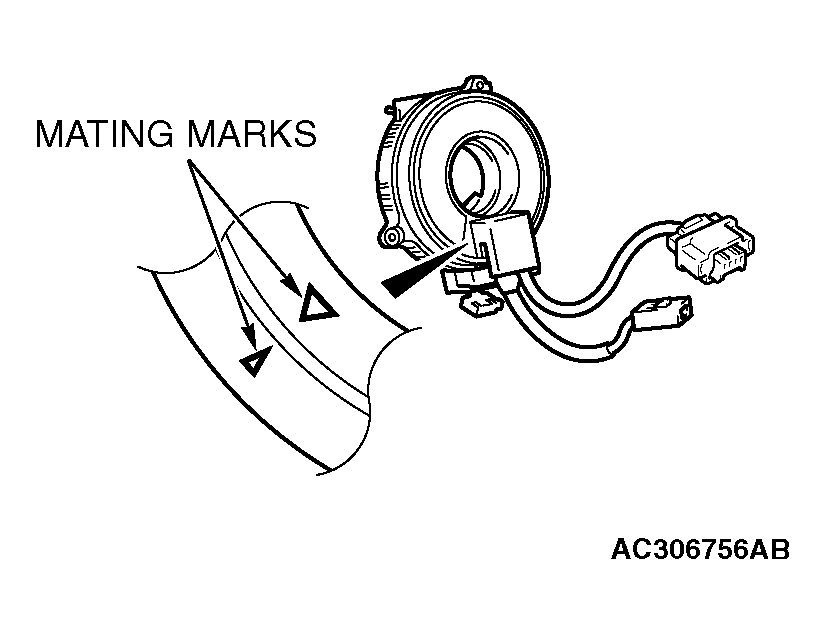

- Align the mating marks of the clock spring.
< Mating Mark Alignment >
Turn the clock spring clockwise fully. Then turn it back approximately 3-3/4 turns counterclockwise to align the mating marks.
- Turn the front wheels to the straight-ahead position. Then install the clock spring to the column switch.
