Removal And Installation: Notes

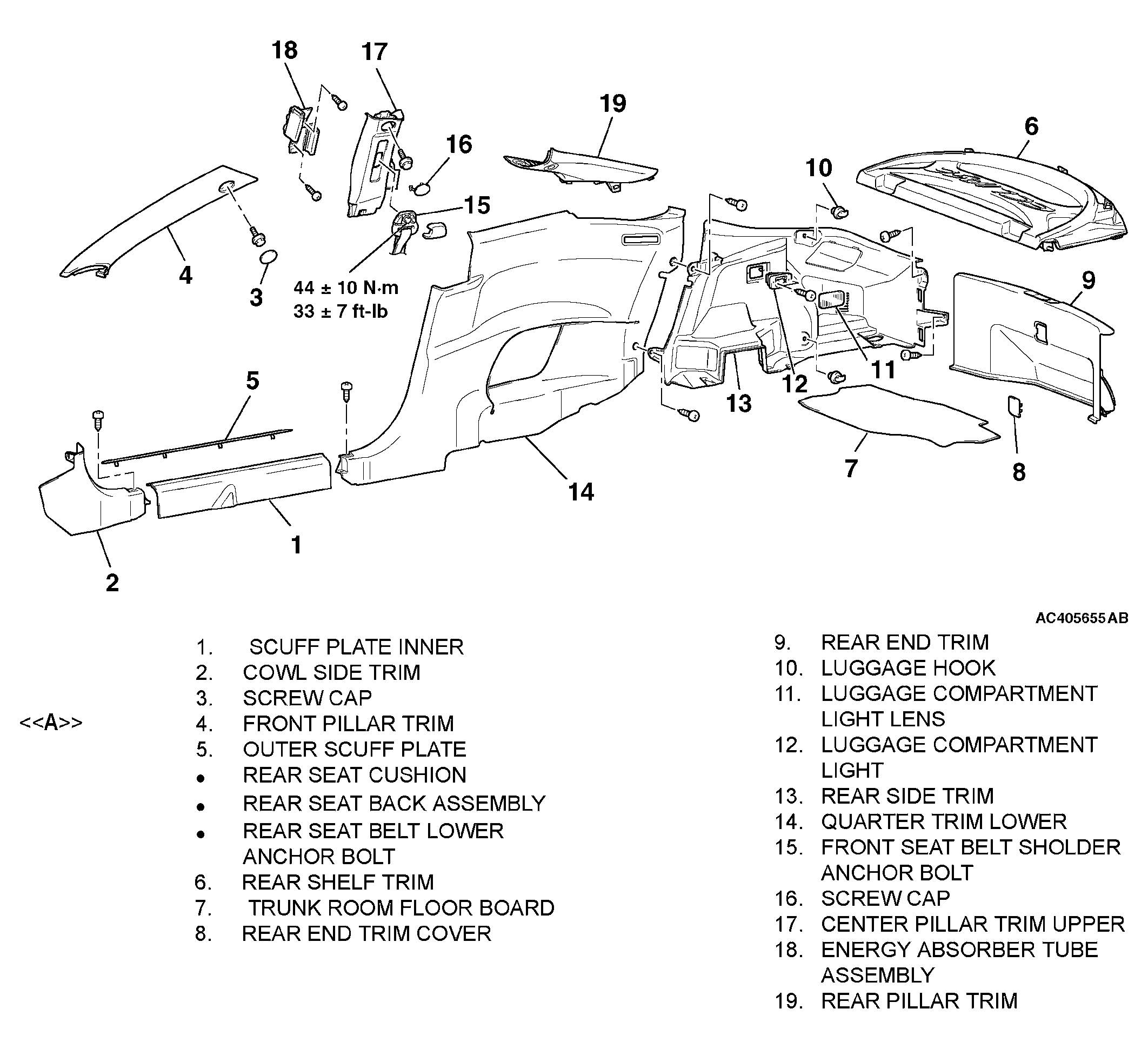

Fig 1: Removing And Installing Interior Trim Pieces With Torque Specifications
G04237794Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
