Oxygen Sensor: Service and Repair

EXHAUST MANIFOLD

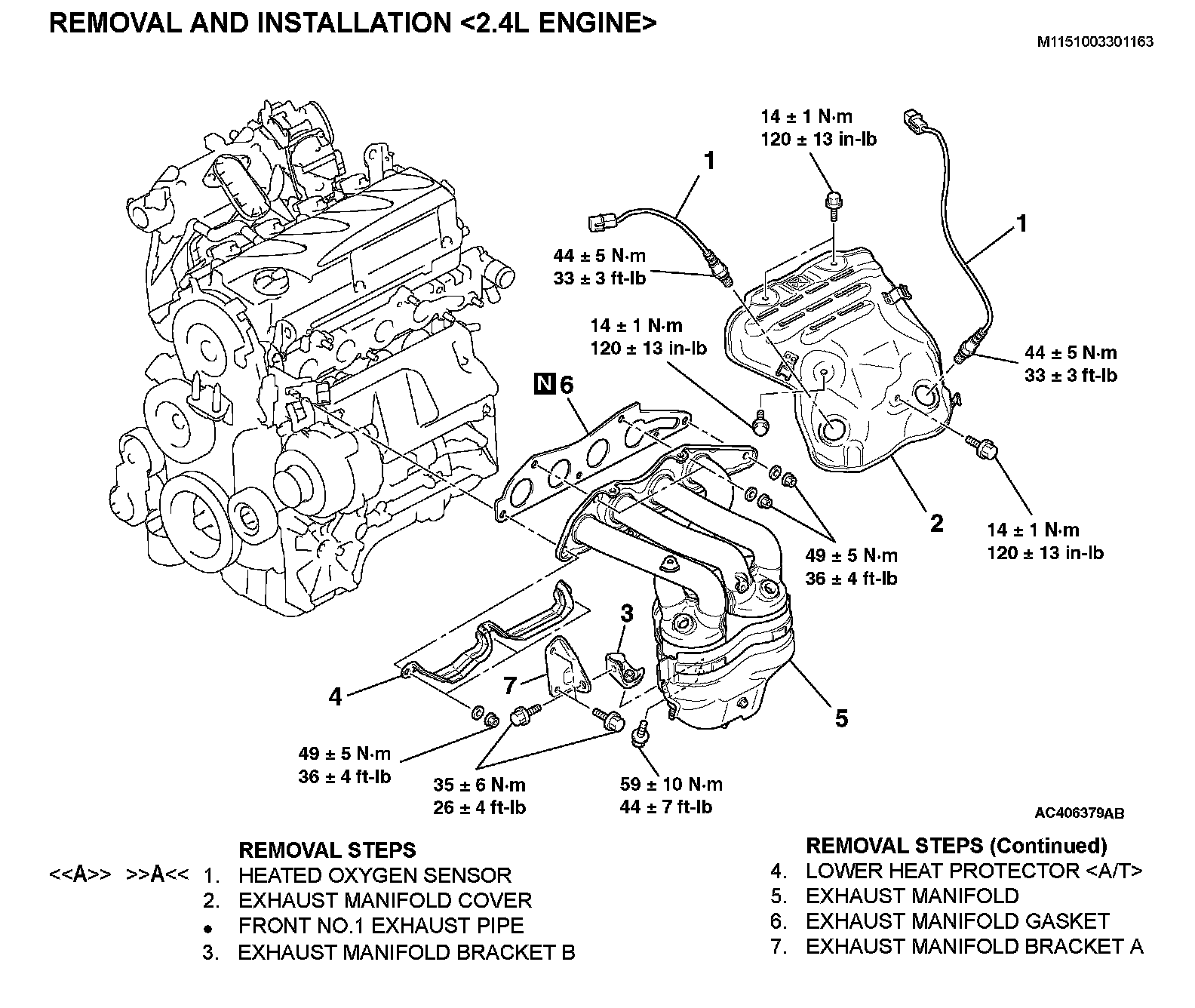

REMOVAL AND INSTALLATION <2.4L ENGINE>

Removal Steps 1 - 7:

Required Special Tool:
- MB991953: Oxygen Sensor Wrench

REMOVAL SERVICE POINT

<> HEATED OXYGEN SENSOR REMOVAL

Use special tool MB991953 to remove the heated oxygen sensor.

INSTALLATION SERVICE POINT

>>A<< HEATED OXYGEN SENSOR INSTALLATION

Use special tool MB991953 to install the heated oxygen sensor.
