Scan Tool Testing and Procedures

PRECAUTIONS BEFORE SERVICE

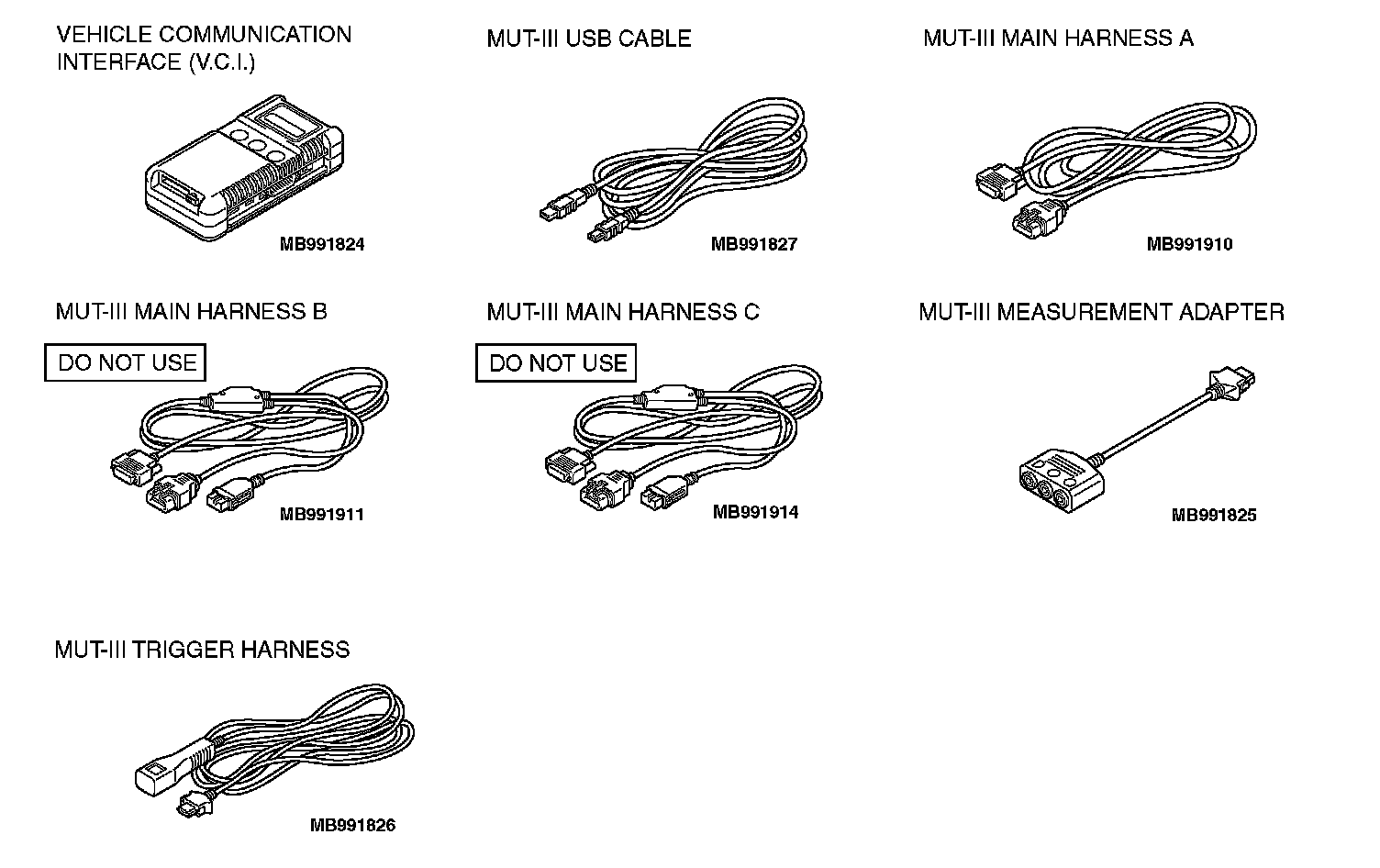

SCAN TOOL (MUT-III SUB ASSEMBLY)





CAUTION: Turn the ignition switch to the "LOCK" (OFF) position before disconnecting or connecting the scan tool.

NOTE: MUT-III trigger harness is not necessary when pushing V.C.I. ENTER key.
