Main Bearing Cap

Crankshaft Main Bearing

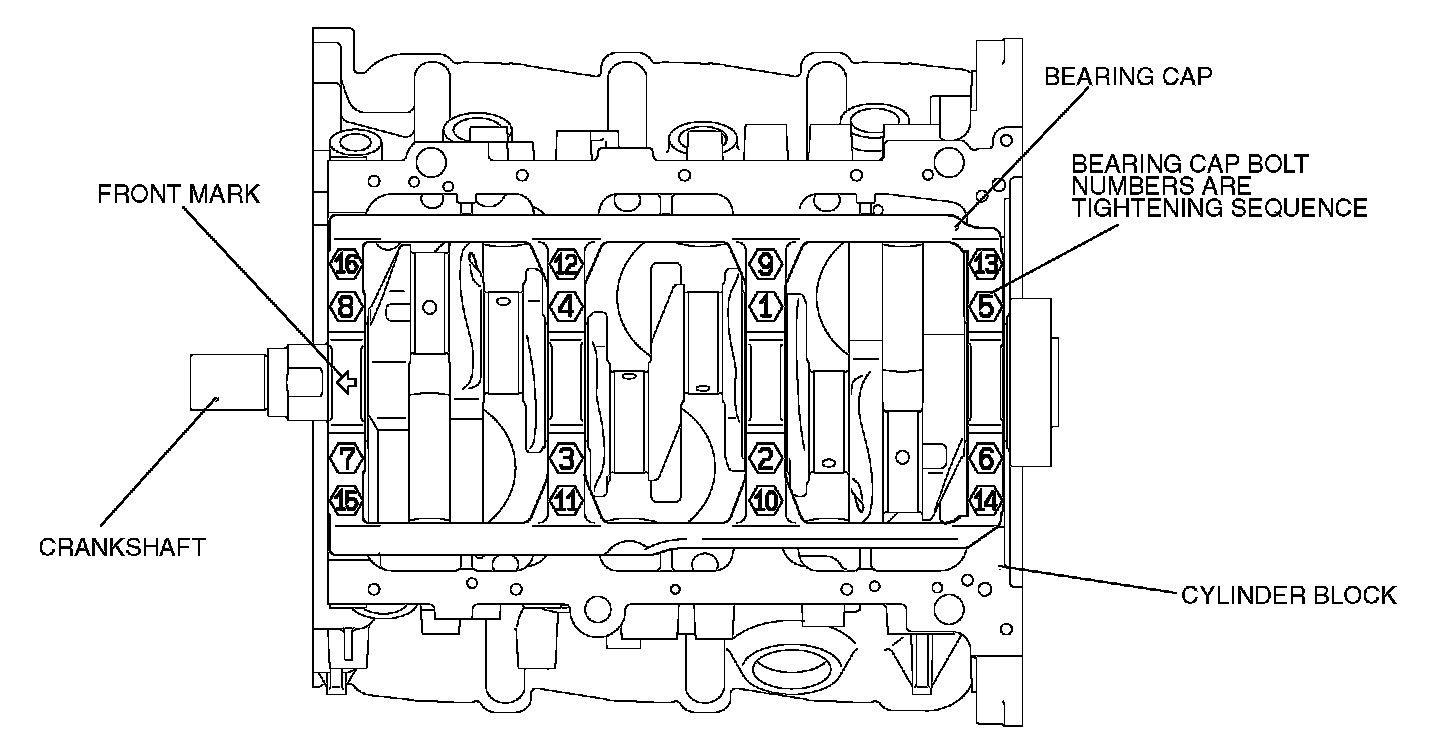

Attach the bearing cap on the cylinder block as shown in the illustration.
Tighten the bearing cap bolts to specified torque in the sequence shown in the illustration.
Tightening torque 74 ± 4 Nm (54 ± 3 ft. lbs.)
