Disassembly And Assembly

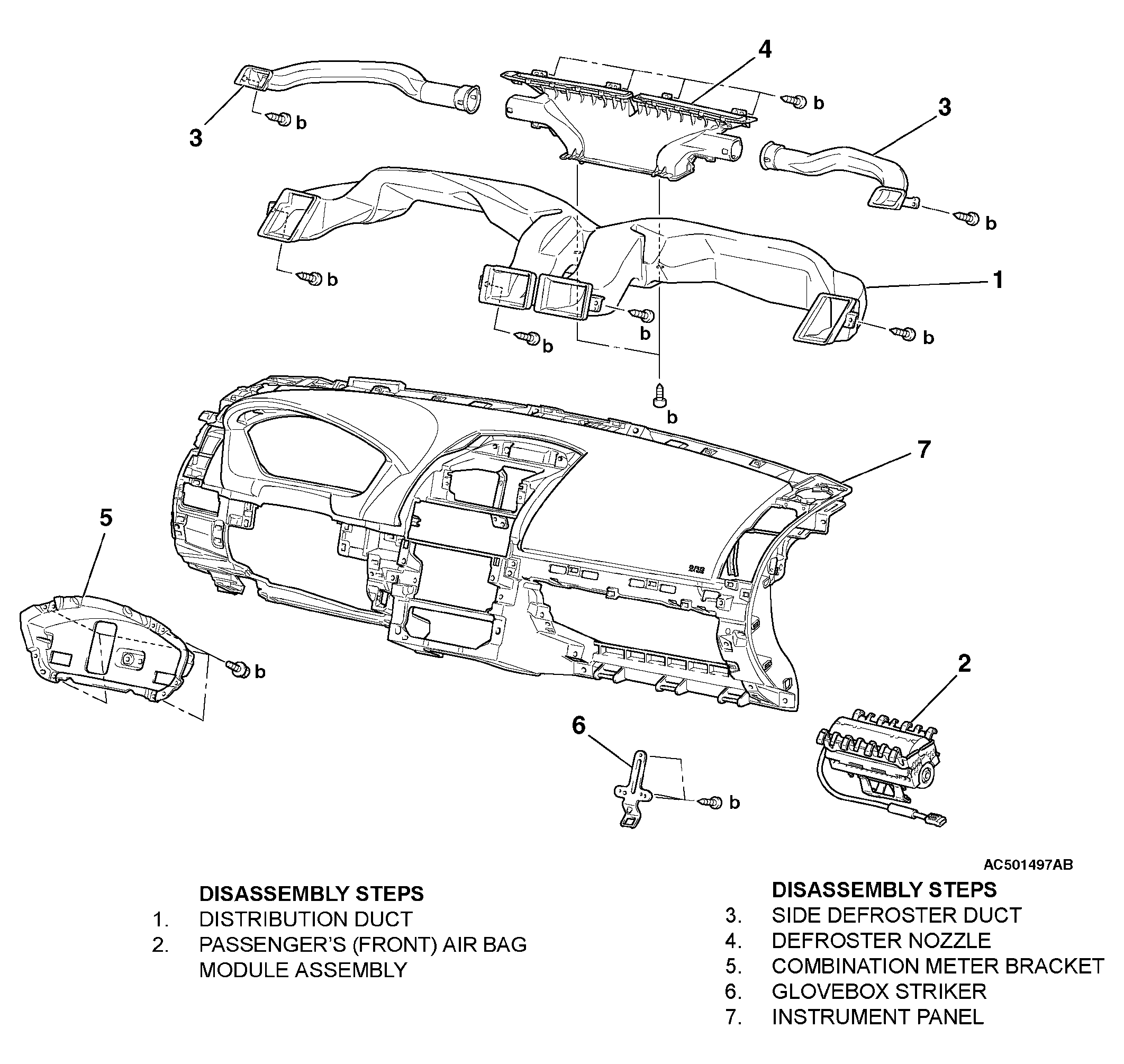

Fig 1: Disassembling/Assembling Instrument Panel Assembly
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
